WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-35070iLN85,YN85..VWP..LHD199110-199207

main85110-35120iLN85,YN85..VWP..LHD199207-199702

main85110-35150iLN85,YN85..VWP..RHD199207-199702

sub85110-35161

main85110-89142iLN85,YN85..VWP..LHD198901-199110

main85110-89146iYN85..VWP..RHD198907-199207

85160LINK ASSY, WINDSHIELD WIPER

main85150-35060iLN85,YN85..VWP..RHD199207-199702

main85150-35070iLN85,YN85..VWP..LHD199207-199702

main85160-89126iYN85..VWP..RHD198907-199207

main85160-89127iLN85,YN85..VWP..LHD198901-199207

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iLN85,YN85..VWP198901-199702

85190ARM ASSY, WINDSHIELD WIPER

main85190-89136iYN85..VWP..RHD198907-198909

RH

sub85190-89143

main85190-89137iLN85,YN85..VWP..LHD198901-199110

LH

sub85190-89144

main85190-89143iLN85,YN85..VWP..RHD199110-199702

RH

main85190-89144iLN85,YN85..VWP..LHD199110-199702

LH

main85210-89105iYN85..VWP..RHD198907-198909

LH

sub85210-89108

main85210-89106iLN85,YN85..VWP..LHD198901-199110

RH

sub85210-89109

main85210-89108iLN85,YN85..VWP..RHD199110-199702

LH

main85210-89109iLN85,YN85..VWP..LHD199110-199702

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iLN85,YN85..VWP198901-199702

main85192-12800iLN85,YN85..VWP199110-199702

KOJIMA

main85218-04010iLN85,YN85..VWP..LHD199110-199702

VW BRAND

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12560iYN85..VWP..RHD198907-198909

LH

sub85220-12561

main85220-12561iLN85,YN85..VWP..RHD198909-199702

LH

sub85222-10220

main85220-12650iYN85..VWP..RHD198907-198909

RH

sub85220-12651

main85220-12651iLN85,YN85..VWP..RHD198909-199702

RH

main85220-12660iLN85,YN85..VWP..LHD198901-199003

LH

sub85220-12661

main85220-12661iLN85,YN85..VWP..LHD199003-199702

LH

main85220-12670iLN85,YN85..VWP..LHD198901-199003

RH

sub85220-12671

main85220-12671iLN85,YN85..VWP..LHD199003-199702

RH

85221BLADE, WINDSHIELD WIPER

main85221-12210iLN85,YN85..VWP..RHD198907-199702

RH

sub85214-12H90

main85221-12230iLN85,YN85..VWP..RHD198907-199702

LH

sub85214-12H90

main85221-89106iLN85,YN85..VWP..LHD198901-199702

sub85214-12H90

9009900913

main90099-00913

9009900925

main90099-00925

9011906187

main90119-06187

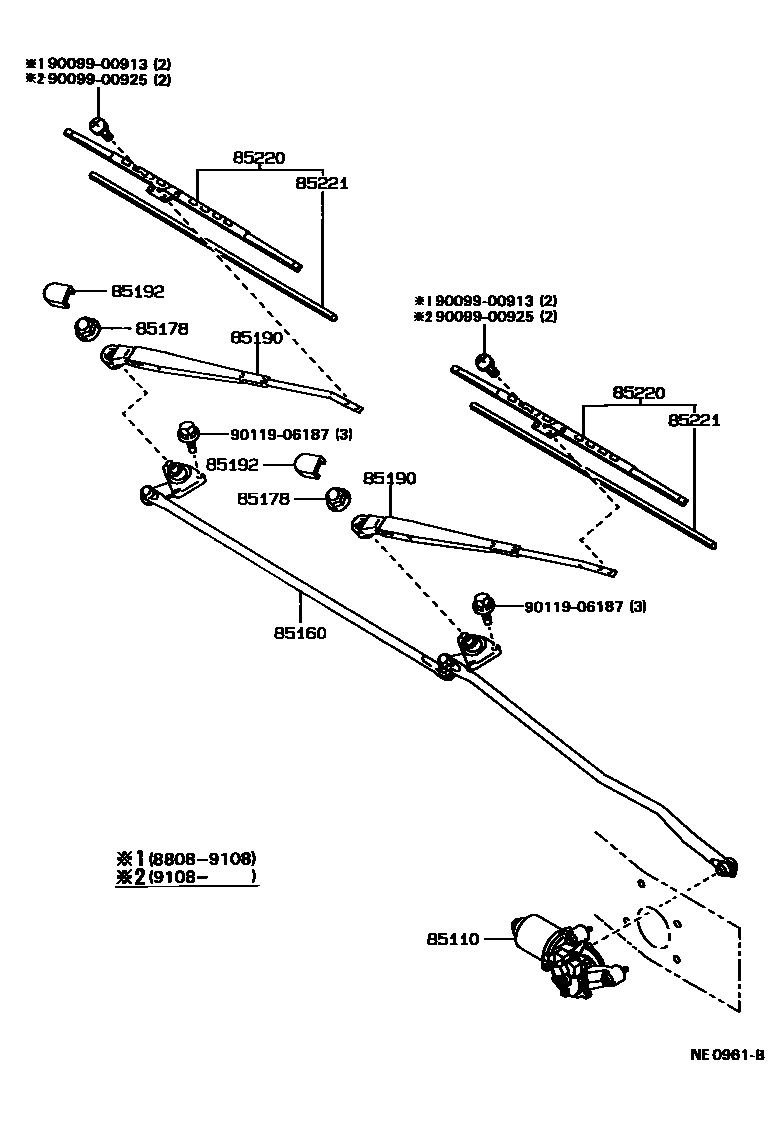

10 parts on this diagram · 1 diagram in section
