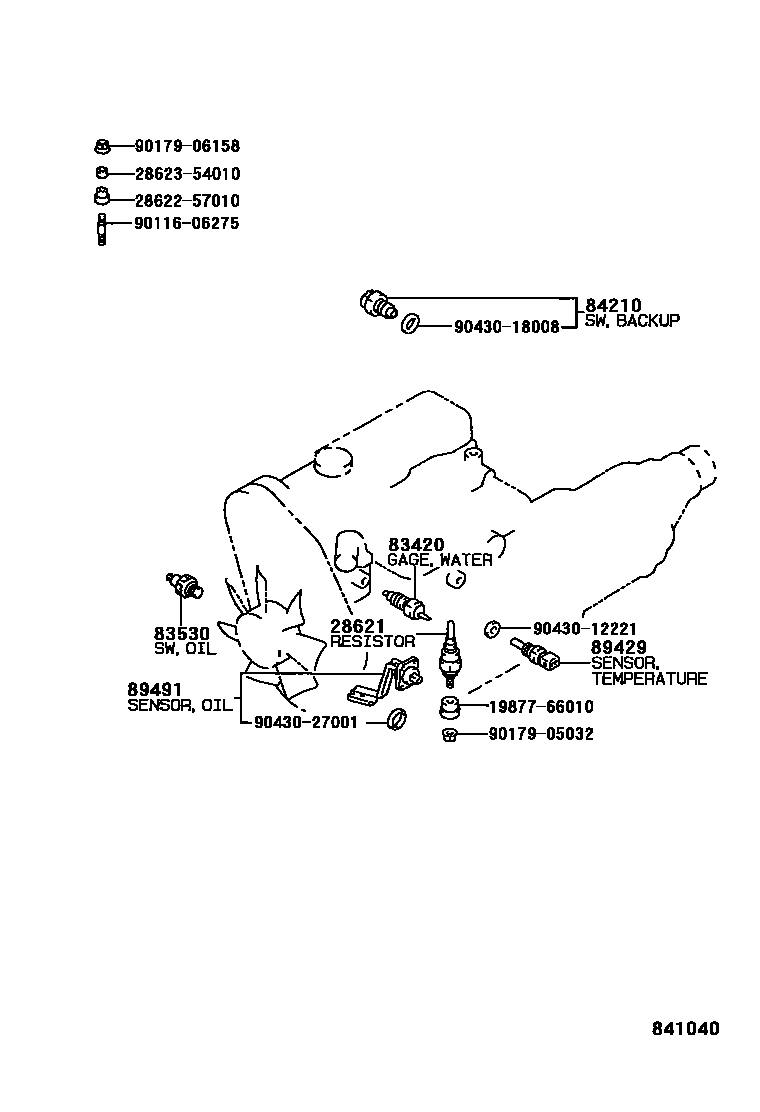

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE,TRANSMISSION & ENGINE 0004 1INSTRUMENT PANEL & COMBINATIO0005 1COWL RELAY 0006 1DOOR & FLOOR SWITCHES

28621RESISTOR, GLOW PLUG

main28621-54080i2L..LN85..VWP..CBU198901-199110

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLN85,YN85..VWP199210-199702

main83420-20020iLN85,YN85..VWP198901-199210

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYN85..VWP198901-199210

sub83530-28030

main83530-14070iYN85..VWP199210-199410

sub83530-28010

main83530-30060iLN85..VWP198901-199702

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLN85,YN85..VWP198901-199702

sub84210-52050

89429SENSOR, OIL TEMPERATURE

main89422-20010iLN85..VWP..CBU198901-199110

89491SENSOR, ENGINE OIL LEVEL

main89491-26110iLN85..VWP199210-199702

sub89491-26111

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

15 parts on this diagram · 6 diagrams in section
