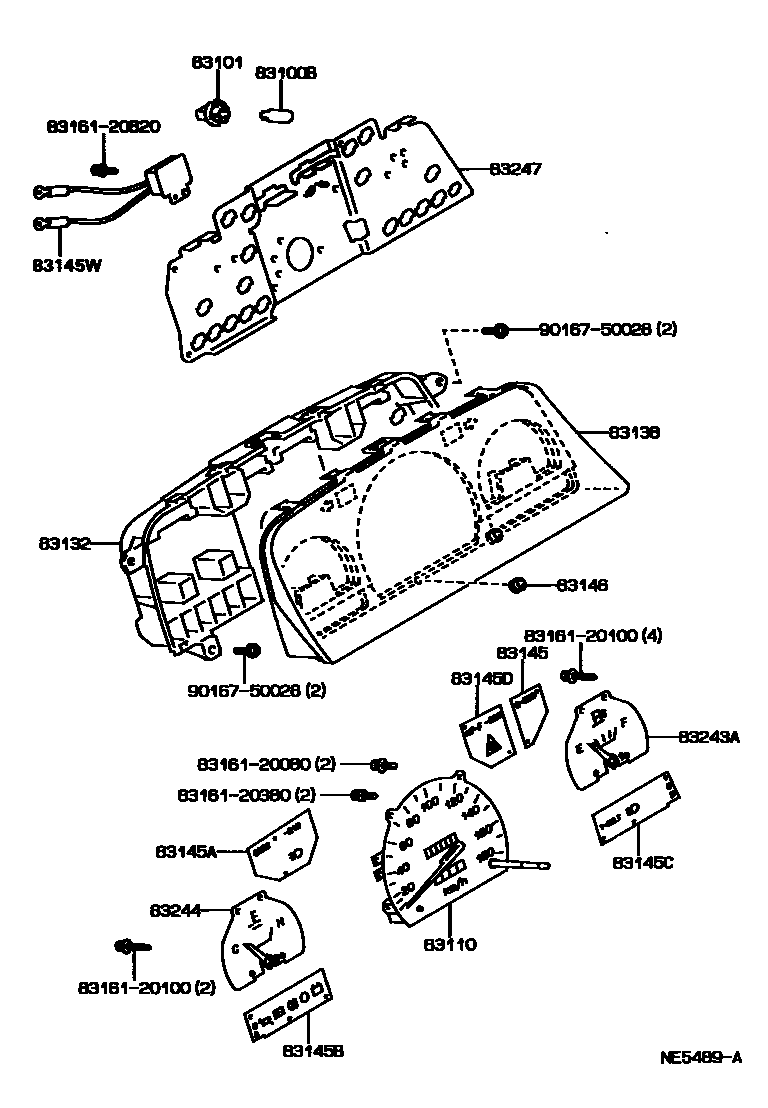

METER

0001 1COMBINATION METER,W/O(TACHOME0002 1SPEEDOMETER DRIVE CABLE 0003 1SPEEDOMETER DRIVE CABLE 0004 1CLOCK & SENSOR, SPEEDOMETER

83100BBULB, COMBINATION METER, NO.1

main90981-11018iLN85..VWP..LHD199110-199702

12V 1.2W W/O SOCKET

main99132-12034×9iYN85..VWP..RHD199103-199410

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iLN85..VWP..LHD199110-199702

TYPE A:REFER TO ILLUSTRATION

main83101-20040×9iYN85..VWP..RHD199103-199410

BULB:12V 3.4W

83110SPEEDOMETER ASSY

main83110-35230iYN85..VWP..RHD199110-199410

main83110-35240iYN85..VWP..LHD199110-199410

main83110-35290iLN85..VWP..LHD199110-199410

main83110-35300iLN85..VWP..RHD199210-199410

main83110-3D310iLN85..VWP..LHD199410-199702

main83110-3D320iLN85..VWP..RHD199410-199702

main83110-89292iYN85..VWP..LHD198901-199110

sub83110-35500

main83110-89295iYN85..VWP..RHD198907-199110

sub83110-35520

main83110-89309iLN85..VWP198901-199110

83132CASE, COMBINATION METER

main83132-35020iLN85,YN85..VWP199110-199410

main83132-89504iLN85..VWP199410-199702

83138GLASS, SPEEDOMETER

main83138-89406iYN85..VWP..LHD198901-199410

main83138-89524iYN85..VWP..RHD198907-199410

main83138-89528iLN85..VWP198901-199702

83145LENS, METER, NO.1

main83145-89504iLN85,YN85..VWP198901-199702

83145ALENS, METER, NO.2

main83145-89408iLN85,YN85..VWP198901-199702

83145BLENS, METER, NO.3

main83145-89518iLN85,YN85..VWP198901-199702

83145CLENS, METER, NO.4

main83145-89404iYN85..VWP..LHD198901-199103

main83145-89604iLN85..VWP198901-199702

83145DLENS, METER, NO.5

main83145-89410iLN85,YN85..VWP199110-199702

83145WBACK-UP RESIST ASSY

main83145-35020iYN85..VWP199101-199110

main83145-35280iYN85..VWP199110-199410

83146GROMMET, METER GLASS

main83145-89318iLN85..VWP..LHD198901-199702

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-35040iYN85..VWP199210-199410

main83243-35120iLN85..VWP199210-199702

main83243-89506iLN85,YN85..VWP198901-199110

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-35040iYN85..VWP199110-199410

main83244-35100iLN85..VWP199110-199702

main83244-89506iYN85..VWP199101-199103

W(12V 45A ALTERNATOR)

main83244-89508iYN85..VWP198901-199103

main83244-89510iLN85..VWP198901-199110

83247PLATE, METER CIRCUIT

main83247-35120iYN85..VWP199101-199103

W(12V 45A ALTERNATOR)

main83247-35320iLN85..VWP199110-199410

main83247-35840iYN85..VWP199110-199410

main83247-89410iYN85..VWP198901-199103

main83247-89544iLN85..VWP198901-199110

main83247-89608iLN85..VWP199410-199702

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120820CASE, COMBINATION METER MIRROR, NO.1

main83161-20820

9016750028

main90167-50028

20 parts on this diagram · 4 diagrams in section
