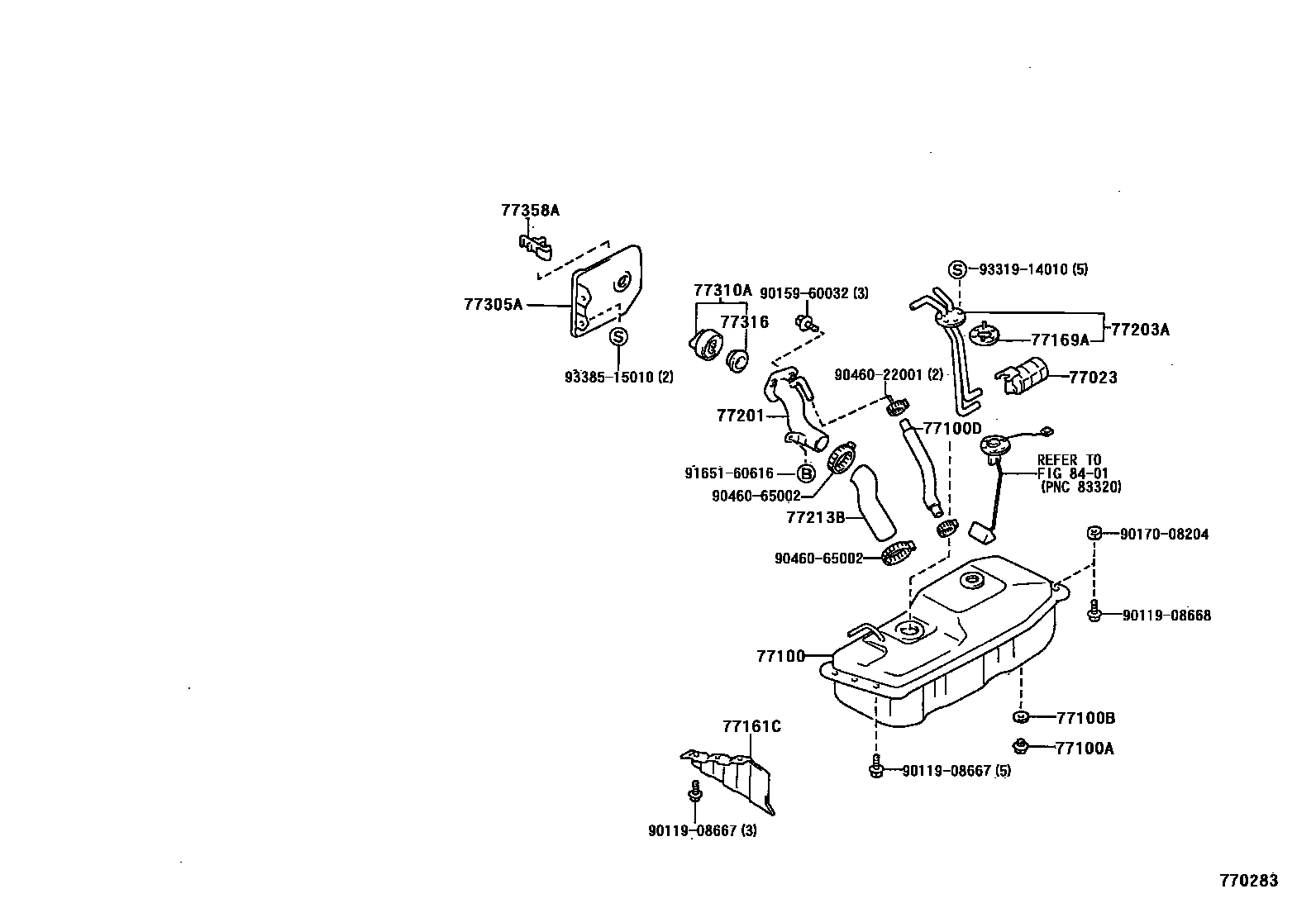

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iYN85..VWP198901-199410

main77023-22040iLN85..VWP198901-199702

77100TANK ASSY, FUEL

main77001-35977iLN85,YN85..VWP198901-199110

sub77001-35989

main77001-35989iLN85,YN85..VWP199110-199702

sub77001-3D939

77100APLUG(FOR FUEL TANK)

main90105-12018iLN85,YN85..VWP198901-199702

77100BGASKET(FOR FUEL TANK)

main90430-12245iLN85,YN85..VWP198901-199702

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77408-35020iLN85,YN85..VWP198901-199702

L=340

77161CPROTECTOR, FUEL TANK, LOWER

main77161-35050iLN85..VWP..LHD;YN85..VWP..CBU198901-199402

sub77161-35051

main77161-35051iLN85,YN85..VWP199402-199702

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iLN85,YN85..VWP198901-199702

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35380iLN85..VWP..IV3199110-199210

*FRG

main77201-35380iLN85,YN85..VWP198901-199702

main77201-35390iYN85..VWP..LHD..IV3198908-199410

*FRG

main77201-35450iLN85..VWP;YN85..VWP..CBU;YN85..VWP..LHD..IV3199110-199702

main77201-35460iYN85..VWP..LHD..CBU199110-199410

*FRG

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-35380iYN85..VWP198901-199410

main77203-35390iLN85..VWP198901-199702

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35200iLN85,YN85..VWP198901-199702

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-89110iLN85,YN85..VWP..CBU198901-199702

77310ACAP ASSY, FUEL TANK

main77310-12100iYN85..VWP198901-199110

main77310-35061iLN85..VWP..CBU198901-199110

main77310-35080iYN85..VWP..CBU199110-199410

sub77310-12140

main77310-35110iLN85..VWP..CBU199110-199702

sub77310-12150

77316GASKET, FUEL TANK CAP

main77316-12050iLN85,YN85..VWP..CBU198901-199110

main77316-16010iLN85..VWP;YN85..VWP..CBU;YN85..VWP..LHD..IV3199110-199702

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-24010iLN85,YN85..VWP198901-198904

main77358-89101iLN85,YN85..VWP..CBU198904-199702

8401

9011908667

main90119-08667

9011908668

main90119-08668

9015960032

main90159-60032

9017008204

main90170-08204

9046022001

main90460-22001

9046065002

main90460-65002

9165160616

main91651-60616

9331914010

main93319-14010

9338515010

main93385-15010

24 parts on this diagram · 3 diagrams in section
