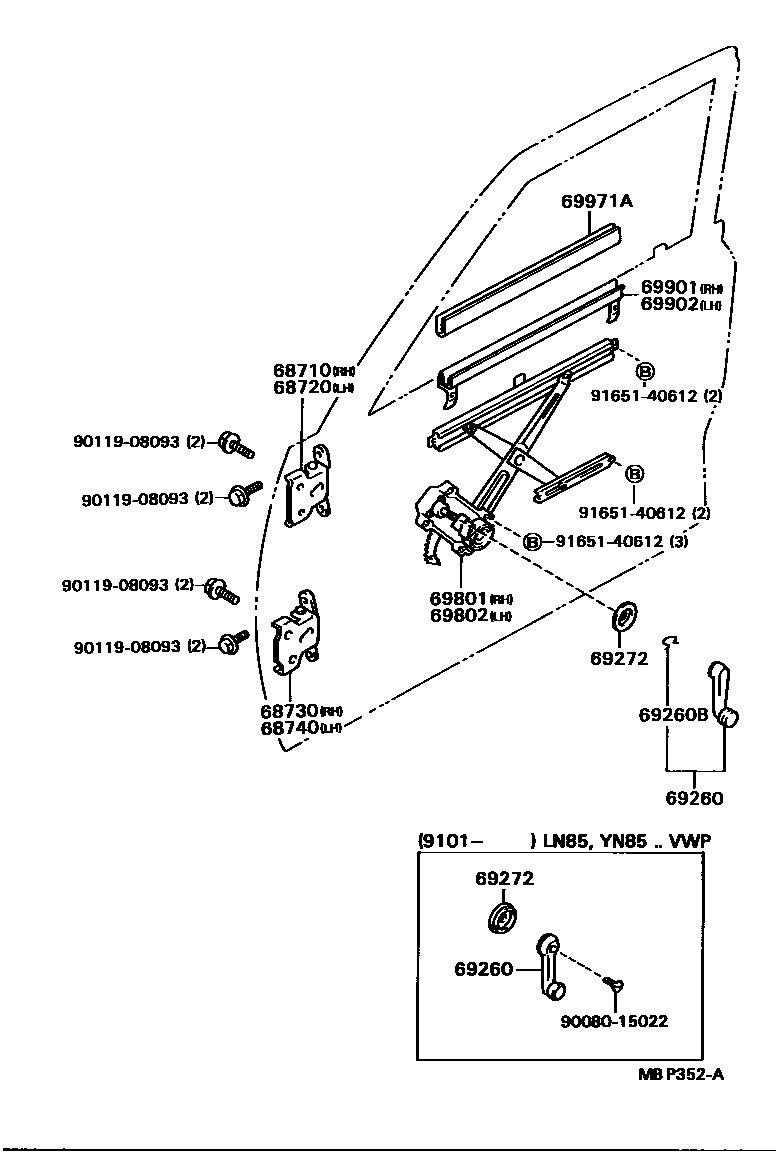

FRONT DOOR WINDOW REGULATOR & HINGE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
sub90520-01274
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
sub69268-20020
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
GLASS T=3.5
GLASS T=4.0
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
GLASS T=3.5
GLASS T=4.0
69971AFILLER, FRONT DOOR GLASS CHANNEL
GLASS T=3.5
9008015022
main90080-15022
9011908093
main90119-08093
9165140612
main91651-40612
15 parts on this diagram · 1 diagram in section
