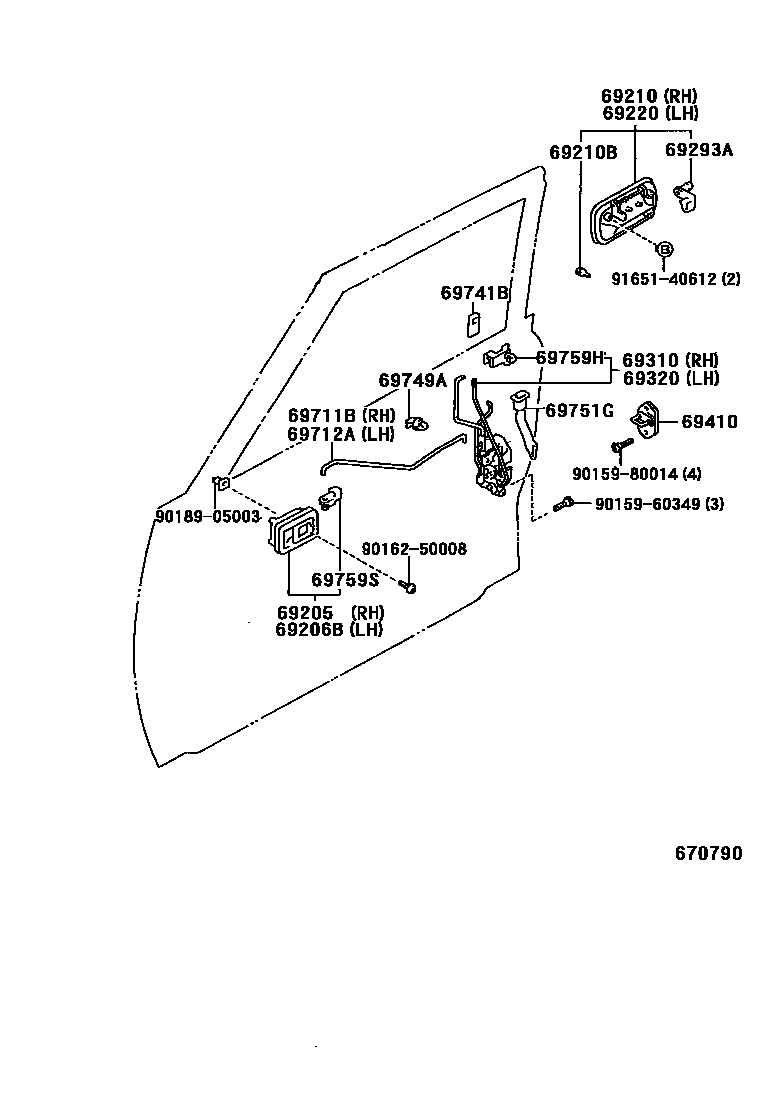

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB
RH
DLX PACKAGE,RH
LH
DLX PACKAGE,LH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
LH,YELLOW
RH,BROWN
BLACK,RH,BLACK
RH,RED
LH,BLACK
RH,NATURAL
NATURAL,LH,NATURAL
LH,BLUE
BLUE,RH,BLUE
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
9015960349
main90159-60349
9015980014
main90159-80014
9016250008
main90162-50008
9018905003
main90189-05003
9165140612
main91651-40612
21 parts on this diagram · 1 diagram in section
