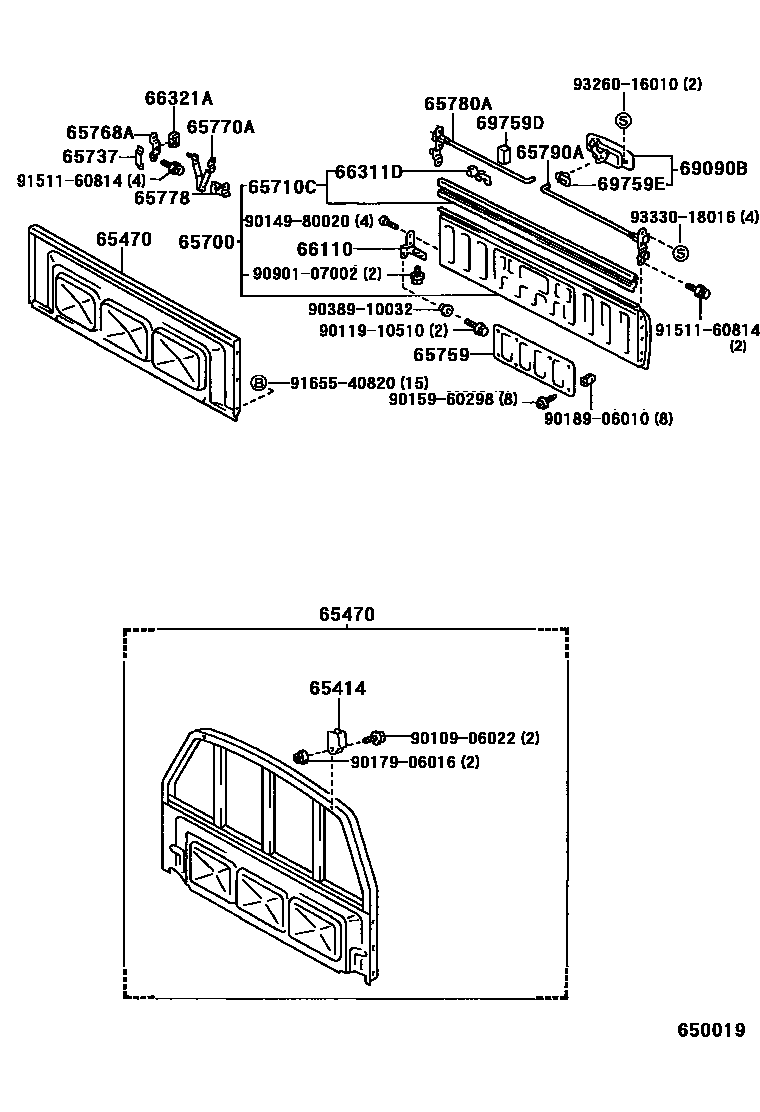

REAR BODY GUARD FRAME & TAIL GATE

65414STOPPER, GUARD FRAME

main65414-89102iLN85,YN85..VWP..CBU198901-199702

65470BOARD ASSY, HEADER

main65470-04010iLN85,YN85..VWP..CBU198907-199702

main65470-89137iLN85,YN85..VWP198901-198907

65700GATE ASSY, REAR BODY TAIL

main65700-04010iLN85,YN85..VWP..CBU198907-199702

main65700-04020iLN85,YN85..VWP..CBU198907-199702

VW BRAND

main65700-35010iLN85,YN85..VWP198901-198907

VW BRAND

main65700-89146iLN85,YN85..VWP198901-198907

sub65700-35090

65710CRAIL ASSY, TAIL GATE TOP

main65710-89114iLN85,YN85..VWP..CBU199110-199702

sub65710-35010

65737STOP, TAIL GATE

main65737-89105iYN85..VWP..CBU;LN85..VWP..RHD;LN85..VWP..LHD..CBU198901-199702

65759COVER, TAIL GATE SERVICE HOLE

main65759-04010iLN85,YN85..VWP..CBU198907-199702

main65759-89102iLN85,YN85..VWP198901-198907

65768ASTRIKER, TAIL GATE LOCK

main65768-89102iYN85..VWP..CBU;LN85..VWP..RHD;LN85..VWP..LHD..CBU198901-199702

65770ASTAY ASSY, TAIL GATE

main65770-04010iLN85,YN85..VWP..CBU199103-199702

main65770-89103iLN85,YN85..VWP198901-199103

65778STOPPER, TAIL GATE STAY

main65778-89104iLN85,YN85..VWP198901-198906

main65778-89105iLN85,YN85..VWP..CBU198906-199702

65780ALOCK ASSY, TAIL GATE, RH

main65780-89105iLN85,YN85..VWP..CBU198901-199702

65790ALOCK ASSY, TAIL GATE, LH

main65790-89106iLN85,YN85..VWP..CBU198901-199702

66110HINGE ASSY, TAIL GATE

main66110-35010iLN85,YN85..VWP198901-198907

RH

sub66110-89107

main66110-89107iLN85,YN85..VWP198907-199007

RH

sub66110-89108

main66110-89108iLN85,YN85..VWP..CBU199007-199702

RH

main66120-35010iLN85,YN85..VWP198901-198907

LH

sub66120-89101

main66120-89101iLN85,YN85..VWP198907-199007

LH

sub66120-89102

main66120-89102iLN85,YN85..VWP..CBU199007-199702

LH

66311DHOOK, ROPE

main66311-89109iLN85,YN85..VWP..CBU198901-199702

66321ABUMPER, GATE RUBBER

main66321-04010iYN85..VWP..CBU;LN85..VWP..RHD;LN85..VWP..LHD..CBU199104-199702

main66321-89109iLN85,YN85..VWP..CBU198901-199104

69090BHANDLE ASSY, TAIL GATE

main69090-89102iLN85,YN85..VWP..CBU198901-199702

69759DSILENCER, TAIL GATE LOCK LINK

main69759-89108iLN85,YN85..VWP..CBU198901-199702

69759ESNAP, TAIL GATE LOCK LINK

main69759-20100iLN85,YN85..VWP..CBU198901-199702

RH

main69759-20110iLN85,YN85..VWP..CBU198901-199702

LH

9010906022

main90109-06022

9011910510

main90119-10510

9014980020

main90149-80020

9015960298

main90159-60298

9017906016

main90179-06016

9018906010

main90189-06010

9038910032

main90389-10032

9090107002

main90901-07002

9151160814

main91511-60814

9165540820

main91655-40820

9326016010

main93260-16010

9333018016

main93330-18016

29 parts on this diagram · 1 diagram in section
