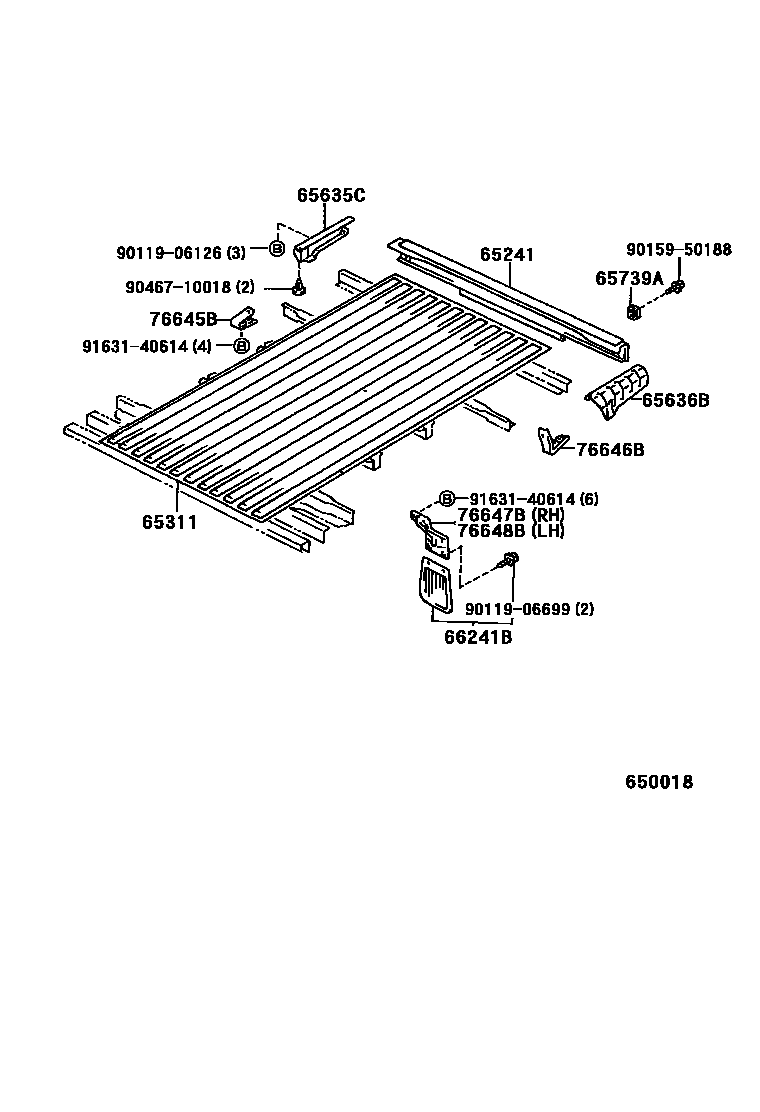

REAR BODY FLOOR & FENDER
65241SILL, REAR CROSS
*FRG OR BELGIUM SPEC
*FRG OR BELGIUM SPEC;*FRG OR BELGIUM SPEC OR ITALY SPEC
*FRG OR BELGIUM SPEC OR FRANCE & PORTUGAL SPEC OR ITALY SPEC;FRANCE SPEC OR *FRG OR BELGIUM SPEC OR ITALY SPEC
65311PANEL, FLOOR, CENTER
65635CPLATE, REAR WHEEL HOUSE, REAR RH
65636BPLATE, REAR WHEEL HOUSE, REAR LH
65739ABUMPER, TAIL GATE
66241BBAFFLE, RUBBER
(L)
VW BRAND,(L)
(J)
VW BRAND,(J)
76645BBRACKET, REAR BODY MUDGUARD, RH
76646BBRACKET, REAR BODY MUDGUARD, LH
76647BSUPPORT, REAR BODY MUDGUARD, RH
76648BSUPPORT, REAR BODY MUDGUARD, LH
9011906126
main90119-06126
9011906699
main90119-06699
9015950188
main90159-50188
9046710018
main90467-10018
9163140614
main91631-40614
15 parts on this diagram · 1 diagram in section
