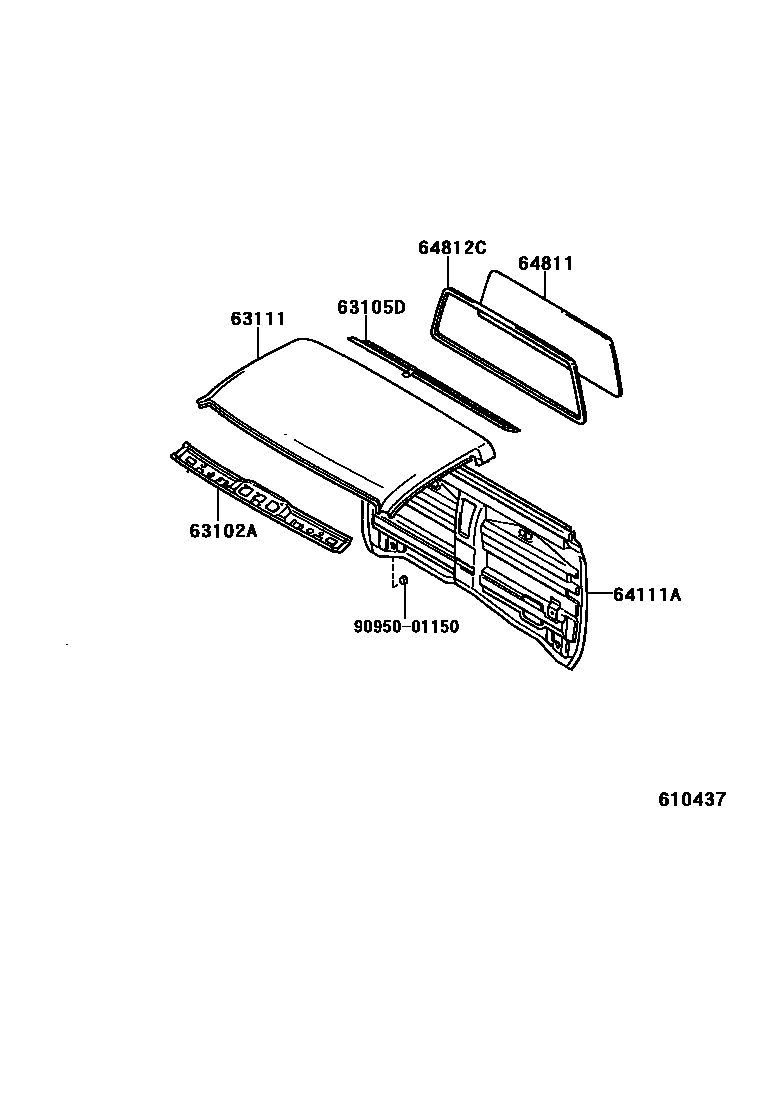

ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-04010iLN85,YN85..VWP198901-198907

main63102-04020iLN85,YN85..VWP198907-199702

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-04010iLN85,YN85..VWP198901-198907

main63105-04020iLN85,YN85..VWP198907-199702

63111PANEL, ROOF

main63111-04010iLN85,YN85..VWP198907-199702

main63111-89118iLN85,YN85..VWP198901-198907

64111APANEL, BACK

main64101-04010iLN85,YN85..VWP..LHD198907-199702

main64101-04020iLN85,YN85..VWP..LHD198907-199702

W(SEPARATE SEAT)

main64101-89145iLN85,YN85..VWP198901-198907

W(SEPARATE SEAT)

main64101-89146iLN85,YN85..VWP198901-198907

64811GLASS, BACK WINDOW

main64811-04010iLN85,YN85..VWP198901-199702

*TEM,T=3.9

main64811-89119iLN85,YN85..VWP198901-199203

*TEM,T=3.5

sub64811-89120

64812CWEATHERSTRIP, BACK WINDOW GLASS

main64812-04010iLN85,YN85..VWP199101-199702

main64812-89108iLN85,YN85..VWP198901-199101

9095001150

main90950-01150

7 parts on this diagram · 1 diagram in section
