SIDE MEMBER
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61511PILLAR, QUARTER LOCK, RH
61531DPANEL, CAB REAR PILLAR, INNER RH
W(SEPARATE SEAT)
61532CPANEL, CAB REAR PILLAR, INSIDE LH
W(SEPARATE SEAT)
61824CPAD, NOISE SHUTTER, NO.1
sub62939-23010
61825CPAD, NOISE SHUTTER, NO.2
sub62151-52010
62381AWEATHERSTRIP, ROOF SIDE RAIL, RH
62382AWEATHERSTRIP, ROOF SIDE RAIL, LH
62553DPAD, PILLAR, NO.3
64143AREINFORCEMENT, BACK CORNER PANEL, RH
64144AREINFORCEMENT, BACK CORNER PANEL, LH
9017908102
main90179-08102
9095001353
main90950-01353
9095001398
main90950-01398
9165160814
main91651-60814

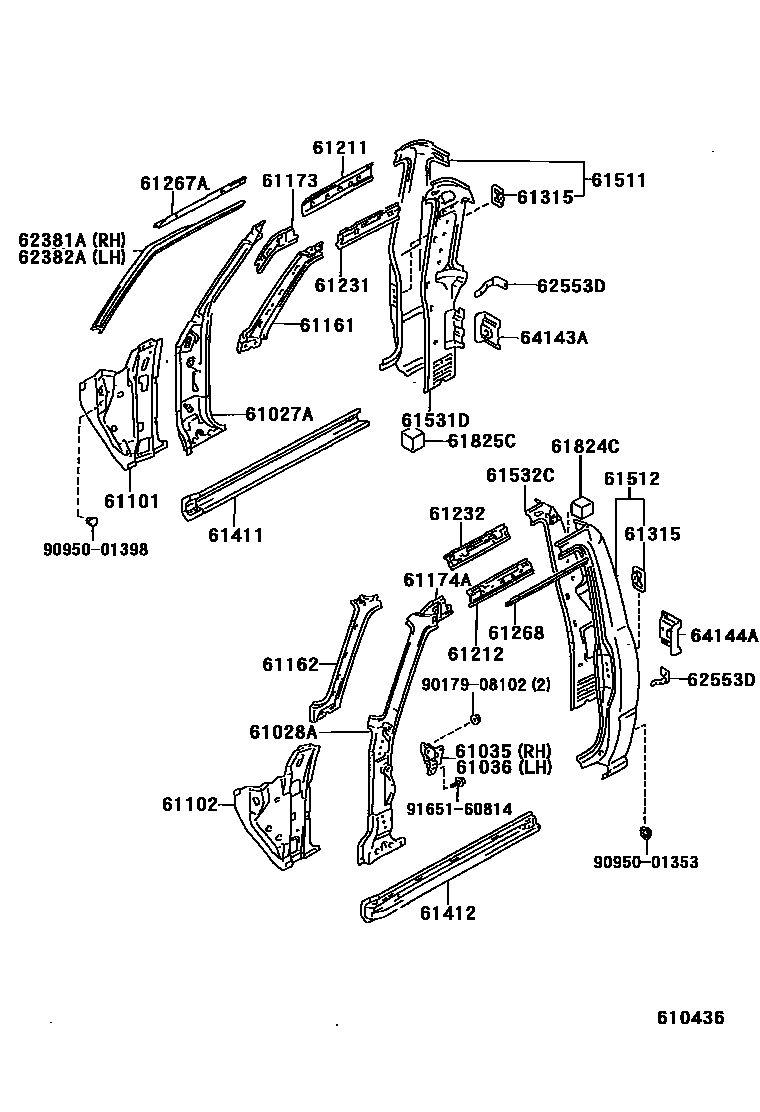

34 parts on this diagram · 1 diagram in section
