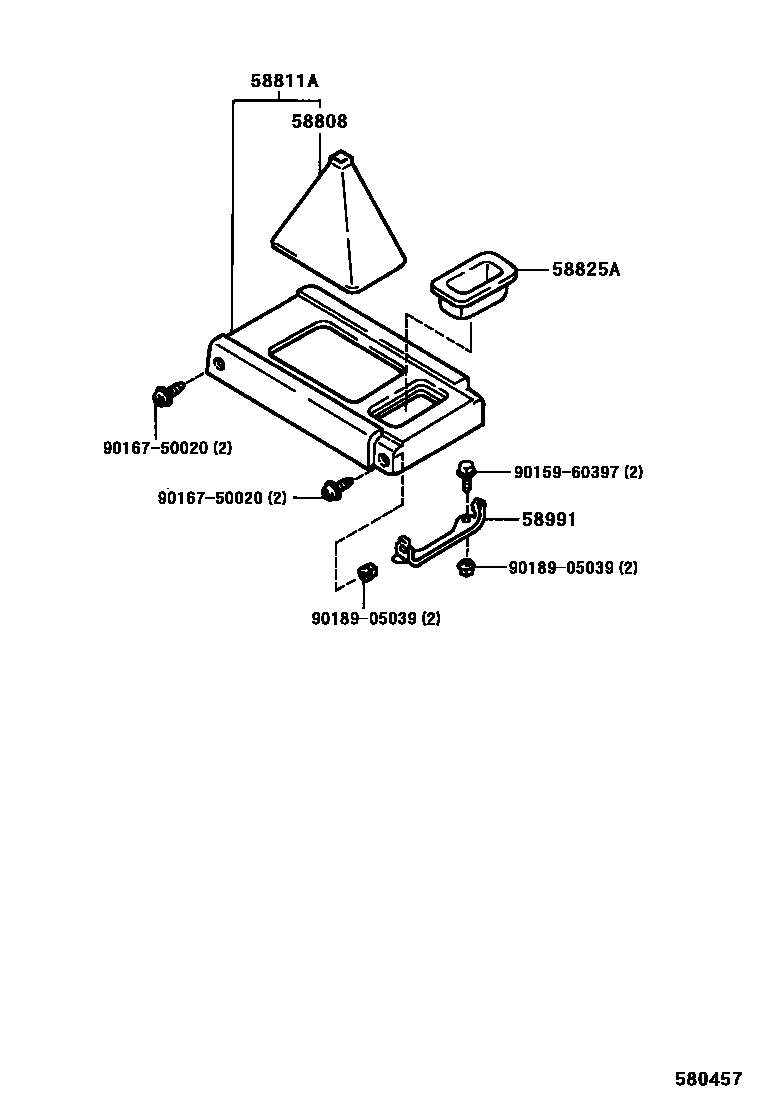

CONSOLE BOX & BRACKET

0001 1 0002 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-89114-B0iLN85,YN85..VWP199010-199702

MEDIUM GRAY,TRIM1#

main58808-89114-E0iLN85,YN85..VWP199010-199110

BROWN,TRIM4#

main58808-89114-J0iLN85,YN85..VWP199010-199410

MEDIUM BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58802-89114-B0iLN85,YN85..VWP199010-199702

MEDIUM GRAY,TRIM1#

main58802-89114-E0iLN85,YN85..VWP199010-199110

BROWN,TRIM4#

main58802-89114-J0iLN85,YN85..VWP199010-199410

MEDIUM BLUE,TRIM8#

58825APOCKET, CONSOLE BOX

main58825-89111-B0iLN85,YN85..VWP199010-199702

MEDIUM GRAY,TRIM1#

main58825-89111-E0iLN85,YN85..VWP199010-199110

BROWN,TRIM4#

main58825-89111-J0iLN85,YN85..VWP199010-199410

MEDIUM BLUE,TRIM8#

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-89103iLN85,YN85..VWP199010-199702

9015960397

main90159-60397

9016750020

main90167-50020

9018905039

main90189-05039

7 parts on this diagram · 2 diagrams in section
