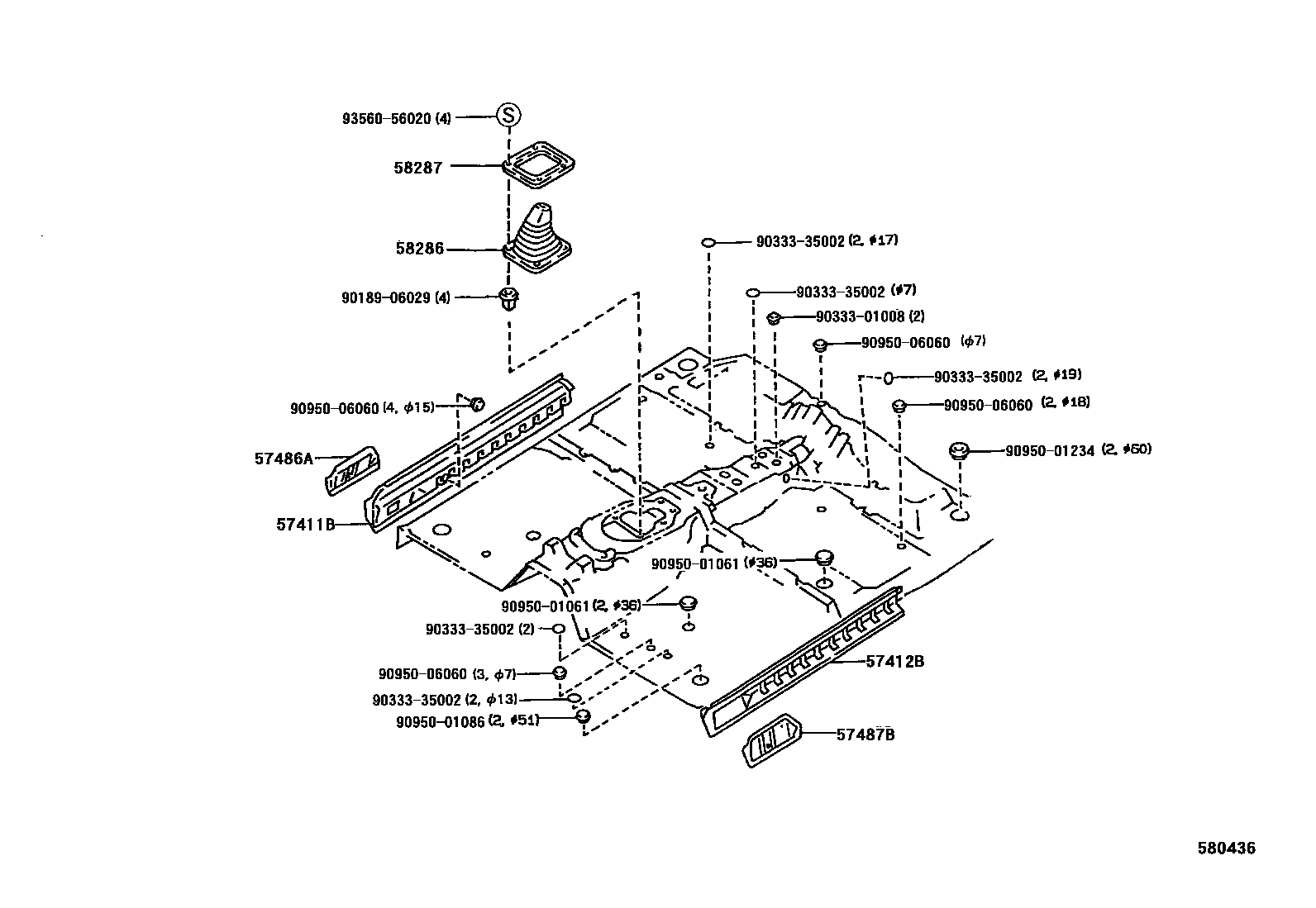

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

57411BMEMBER, FLOOR SIDE, INNER RH

main57411-04010iLN85,YN85..VWP198907-199702

main57411-89104iLN85,YN85..VWP198901-198907

sub57411-35010

57412BMEMBER, FLOOR SIDE, INNER LH

main57412-04010iLN85,YN85..VWP198907-199702

main57412-89106iLN85,YN85..VWP198901-198907

sub57412-35010

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-89104iLN85,YN85..VWP198901-199702

57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-89102iLN85,YN85..VWP198901-199702

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-04010iLN85..VWP199010-199702

main58280-89111iLN85..VWP198901-199010

main58286-04010iYN85..VWP199103-199410

main58286-89124iYN85..VWP198901-199010

58287RETAINER, SHIFT LEVER BOOT

main58287-89113iLN85,YN85..VWP198901-199702

9018906029

main90189-06029

9033301008

main90333-01008

9033335002

main90333-35002

9095001061

main90950-01061

9095001086

main90950-01086

9095001234

main90950-01234

9095006060

main90950-06060

9356056020

main93560-56020

14 parts on this diagram · 2 diagrams in section
