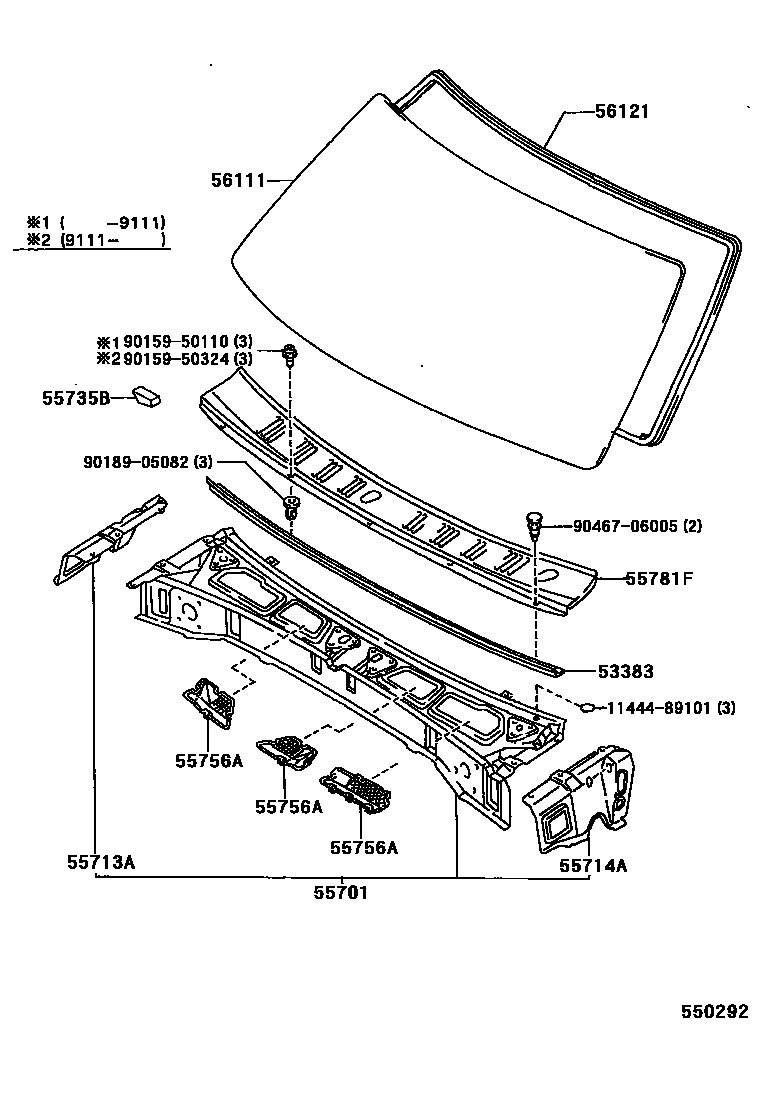

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-89106iLN85,YN85..VWP198901-199702

55701PANEL SUB-ASSY, COWL

main55700-04050iYN85..VWP..LHD198907-199410

main55700-04060iLN85..VWP..LHD198907-199702

main55700-04070iYN85..VWP..RHD198907-199410

main55700-04090iYN85..VWP198901-198907

main55700-04100iLN85..VWP198901-198907

main55700-89149iLN85..VWP..RHD199210-199702

sub55700-35060

55713APANEL, COWL TOP SIDE, RH

main55713-89105iLN85,YN85..VWP198901-199702

55714APANEL, COWL TOP SIDE, LH

main55714-89106iLN85,YN85..VWP198901-199702

55735BSEAL, FRONT AIR SHUTTER

main55735-89101iLN85,YN85..VWP198901-199702

55756ASCREEN, HEATER AIR DUCT

main55756-89108iYN85..VWP..RHD198907-199702

LH

main55756-89108iLN85,YN85..VWP..LHD198901-199101

COLD SPEC,LH

main55756-89109iLN85,YN85..VWP198907-199702

CENTER

main55756-89109iLN85,YN85..VWP..LHD198901-199101

COLD SPEC,CENTER

main55756-89110iLN85,YN85..VWP..RHD198907-199702

RH

main55756-89111iLN85,YN85..VWP..LHD198901-199101

COLD SPEC,RH

main55756-89111iLN85,YN85..VWP..LHD199101-199702

RH

55781FLOUVER, COWL TOP VENTILATOR

main55781-04010iLN85,YN85..VWP..LHD198907-199702

main55781-04020iLN85,YN85..VWP..RHD198907-199702

main55781-89103iLN85,YN85..VWP198901-198907

56111GLASS, WINDSHIELD

main56111-04010iLN85,YN85..VWP198901-199210

*TEM,T=5

main56111-04020iLN85,YN85..VWP199210-199702

*LAM,T=5.3

main56111-04020iLN85,YN85..VWP198901-199210

*LAM,T=5.3,(L)

main56111-89142iLN85,YN85..VWP198901-199208

*ZT,T=5.0

sub56111-89144

main56111-89144iLN85,YN85..VWP198901-199203

*LAM,T=5.3,(J)

sub56111-89145

56121WEATHERSTRIP, WINDSHIELD

main56121-04010iLN85,YN85..VWP199101-199702

main56121-89120iLN85,YN85..VWP198901-199101

1144489101PLUG, HOLE

main11444-89101

9015950110

main90159-50110

9015950324

main90159-50324

9018905082

main90189-05082

9046706005

main90467-06005

14 parts on this diagram · 1 diagram in section
