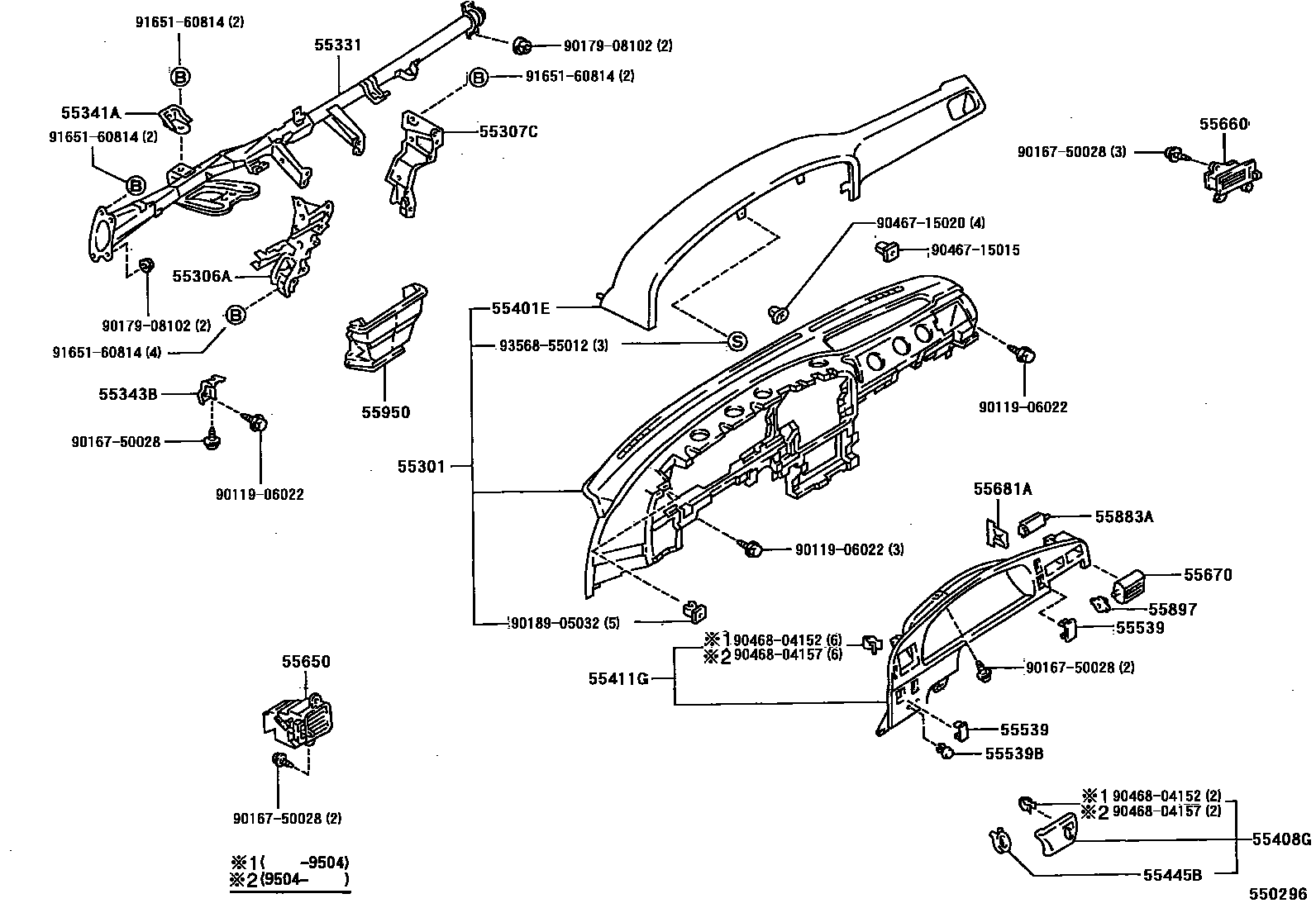

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55331REINFORCEMENT, INSTRUMENT PANEL
W(RADIO)
55341ABRACE, INSTRUMENT PANEL TO COWL, UPPER
W(RADIO)
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
55445BPLATE, INSTRUMENT PANEL FINISH
55539COVER, SPARE SWITCH HOLE
55539BCOVER, SPARE SWITCH HOLE, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55681ASUPPORT, INSTRUMENT PANEL REGISTER
55883ADAMPER, AIR
55897KNOB, AIR DAMPER CONTROL LEVER
55950NOZZLE ASSY, DEFROSTER
9011906022
main90119-06022
9016750028
main90167-50028
9017908102
main90179-08102
9018905032
main90189-05032
9046715015
main90467-15015
9046715020
main90467-15020
9046804152
main90468-04152
9046804157
main90468-04157
9165160814
main91651-60814
9356855012
main93568-55012
29 parts on this diagram · 4 diagrams in section
