FRONT FENDER APRON & DASH PANEL

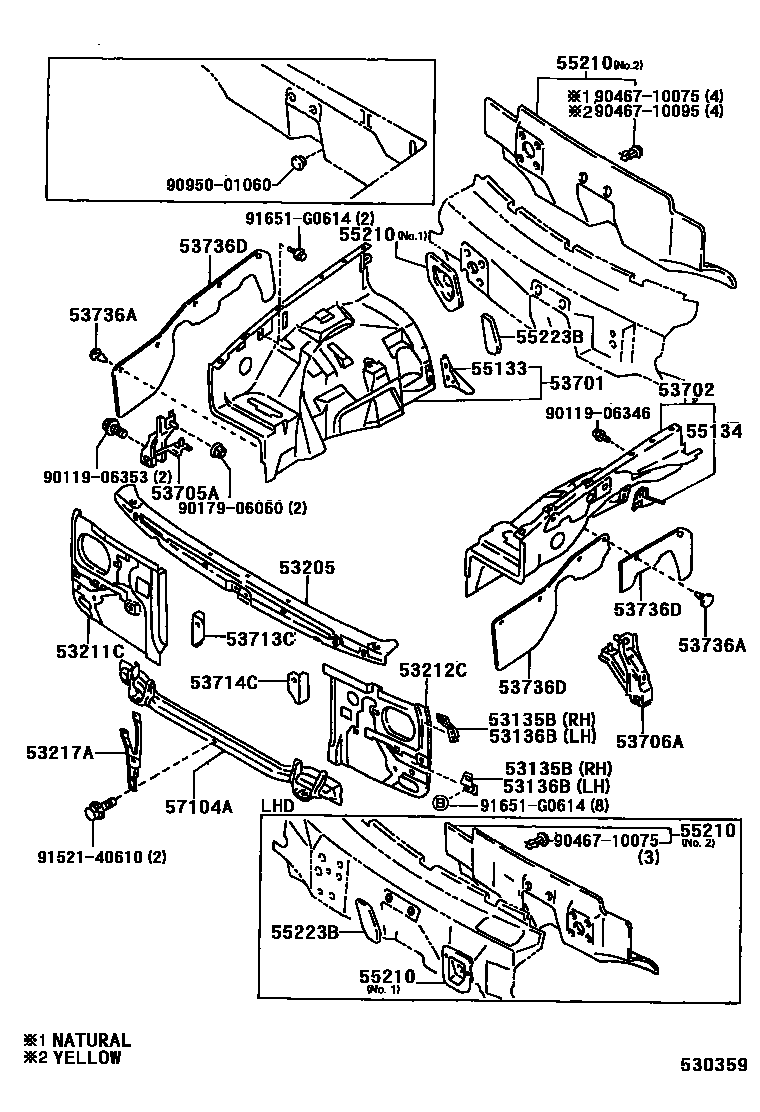

Parts diagram
53135BBRACKET, HEAD LAMP DOOR, RH
main53135-89101i198901-199110
UPPER
main53135-89101i199110-199410
*FRG,UPPER
main53135-89102i198901-199110
LOWER
main53135-89102i199110-199410
*FRG,LOWER
53136BBRACKET, HEAD LAMP DOOR, LH
main53136-89105i199110-199410
*FRG,UPPER
main53136-89105i198901-199110
UPPER
main53136-89106i198901-199110
LOWER
main53136-89106i199110-199410
*FRG,LOWER
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53216-04010i198907-199702
main53216-89110i198901-198907
53211CSUPPORT, RADIATOR, RH
main53211-04010i198907-199110
main53211-04020i199103-199702
main53211-04020i198911-199110
*FRG
main53211-89123i198901-198907
sub53202-35020
53212CSUPPORT, RADIATOR, LH
main53212-04010i198907-199110
main53212-04020i198911-199110
*FRG
main53212-04020i199103-199702
main53212-89120i198901-198907
sub53203-35020
53217ABRACE, HOOD LOCK SUPPORT
main53217-35010i198901-199702
sub53217-89108
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-04020i199101-199410
(L)
main53701-04030i199101-199410
(L)
main53701-04070i199103-199702
(L)
main53701-35090i199008-199101
main53701-35100i199008-199101
main53701-35110i199210-199702
main53701-35120i199103-199110
(J)
main53701-35130i199103-199110
(J)
main53701-89214i198901-199110
(J)
main53701-89217i198907-199008
sub53701-35090
main53701-89219i198901-199008
sub53701-35100
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-04020i199101-199410
(L)
main53702-04030i199101-199410
(L)
main53702-04110i199103-199508
main53702-04111i199508-199702
main53702-04120i199110-199508
COLD SPEC
main53702-04121i199508-199702
COLD SPEC
main53702-35100i199103-199110
(J)
main53702-35130i198901-199110
(J)
main53702-35140i198905-199110
COLD SPEC
main53702-35200i199210-199508
main53702-35340i199508-199702
main53702-89242i198901-198905
COLD SPEC
sub53702-35120
main53702-89247i198901-199101
53705ABRACE SUB-ASSY, FENDER APRON, RH
main53705-89102i198901-199702
53706ABRACE SUB-ASSY, FENDER APRON, LH
main53706-89102i198901-199702
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
main53713-89104i198901-199702
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-89104i198901-199702
53736ACLIP(FOR FRONT FENDER APRON SEAL)
main90467-10107i198901-199702
53736DSEAL, FENDER APRON
main53736-89118i198901-199410
main53736-89118i198901-199702
MARK=AA
main53736-89119i198901-199702
MARK=BB
sub53736-89118
main53736-89120i198901-199702
MARK=EE
55133PLATE, FRONT FENDER APRON SET, LOWER RH
main55133-89103i198901-199702
55134PLATE, FRONT FENDER APRON SET, LOWER LH
main55134-89103i198901-199702
55210INSULATOR ASSY, DASH PANEL
main55210-35110i199210-199311
NO.2
sub55210-35111
main55210-35111i199311-199702
NO.2
main55210-35130i199206-199311
NO.2
sub55210-35131
main55210-35131i199311-199702
main55210-89149i198907-199702
NO.1
main55210-89151i198901-199702
NO.1
main55210-89153i198907-199410
NO.2
main55210-89156i198901-199410
NO.2
main55210-89158i198901-199206
sub55210-35130
55223BINSULATOR, DASH PANEL HEAT, NO.1
main55225-89103i198901-199702
main55225-89104i199210-199702
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-04010i198907-199702
main57104-89109i198901-198907
9011906346
main90119-06346
9011906353
main90119-06353
9017906060
main90179-06060
9046710075
main90467-10075
9046710095
main90467-10095
9095001060
main90950-01060
9152140610
main91521-40610
91651G0614
main91651-G0614

27 parts on this diagram · 4 diagrams in section
