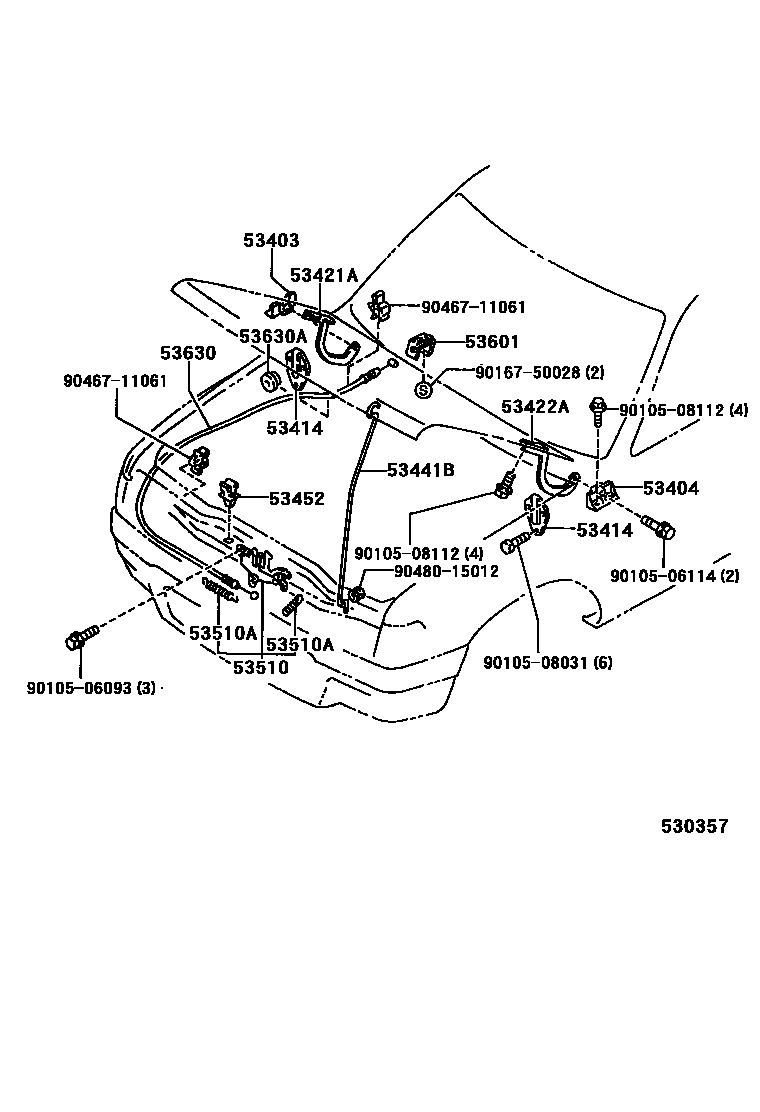

HOOD LOCK & HINGE

53403BRACKET SUB-ASSY, HOOD HINGE, RH

main53403-89102iLN85,YN85..VWP198901-199702

53404BRACKET SUB-ASSY, HOOD HINGE, LH

main53404-89102iLN85,YN85..VWP198901-199702

53414SEAL, HOOD HINGE

main53414-89103iLN85,YN85..VWP198901-199702

53421AARM, HOOD HINGE, RH

main53421-89103iLN85,YN85..VWP198901-199702

53422AARM, HOOD HINGE, LH

main53422-89102iLN85,YN85..VWP198901-199702

53441BSUPPORT, HOOD

main53441-04010iLN85,YN85..VWP198910-199702

main53441-89105iLN85,YN85..VWP198901-198910

53452HOLDER, HOOD STAY

main53452-90351iLN85,YN85..VWP198901-199702

53510LOCK ASSY, HOOD

main53510-35040iLN85,YN85..VWP..RHD199111-199702

main53510-35050iLN85,YN85..VWP..LHD199111-199702

main53510-89115iLN85,YN85..VWP..LHD198901-199111

main53510-89116iYN85..VWP..RHD198907-199111

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-07019iLN85,YN85..VWP199011-199111

WD=0.7,CW=29.25,L=34,L=34

main90506-07021iLN85,YN85..VWP199111-199702

WD=0.7,CW=37.25,L=40

main90506-09039iLN85,YN85..VWP198901-199011

WD=0.9,CW=21.25,L=34

main90506-20008iLN85,YN85..VWP198901-199702

WD=2.0,CW=17,L=59

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-89103-B0iLN85,YN85..VWP198901-199702

MEDIUM GRAY,TRIM1#

sub53601-89103

main53601-89103-E0iLN85,YN85..VWP198901-199110

BROWN,TRIM4#

sub53601-89103

main53601-89103-J0iLN85,YN85..VWP198901-199410

MEDIUM BLUE,TRIM8#

sub53601-89103

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-89114iLN85,YN85..VWP198901-199702

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-40008iLN85,YN85..VWP..RHD198907-199702

9010506093

main90105-06093

9010506114

main90105-06114

9010508031

main90105-08031

9010508112

main90105-08112

9016750028

main90167-50028

9046711061

main90467-11061

9048015012

main90480-15012

19 parts on this diagram · 1 diagram in section
