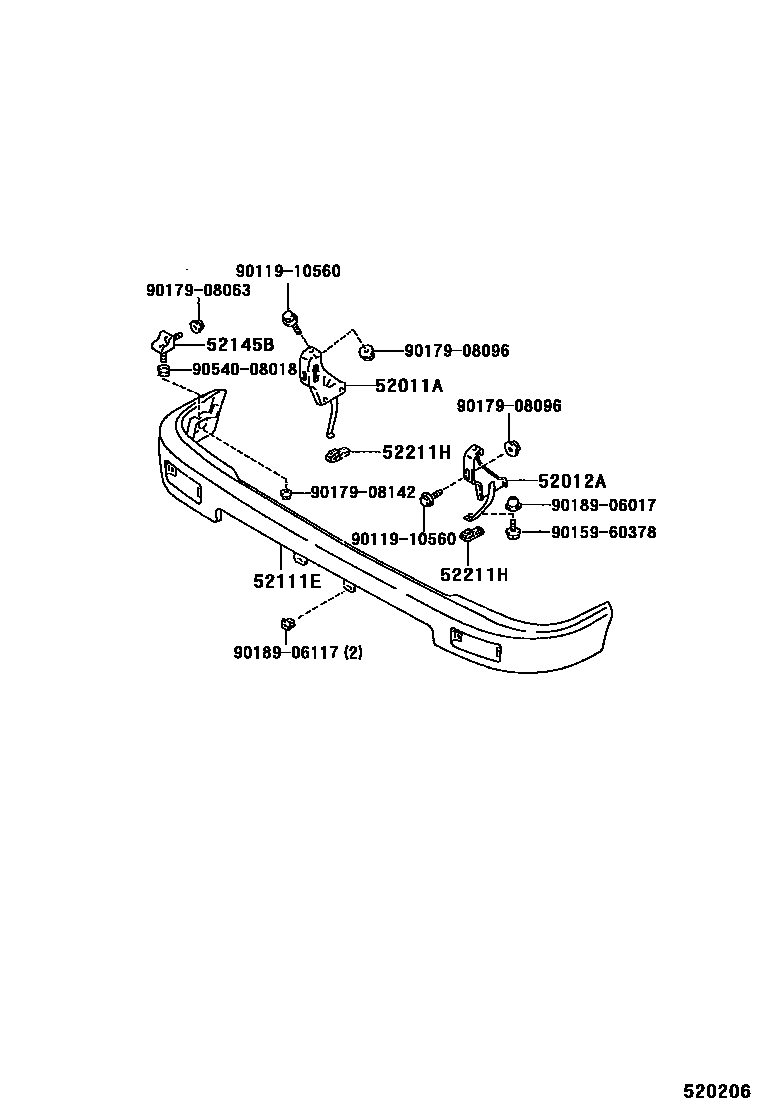

FRONT BUMPER & BUMPER STAY

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-04010iLN85,YN85..VWP199001-199110

main52011-04030iLN85,YN85..VWP199110-199702

main52011-89115iLN85,YN85..VWP198901-199001

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-04010iLN85,YN85..VWP199001-199110

main52012-04030iLN85,YN85..VWP199110-199702

main52012-89115iLN85,YN85..VWP198901-199001

52111EBAR, FRONT BUMPER

main52101-04010iLN85,YN85..VWP198901-199110

sub52101-04030

main52101-04020iLN85,YN85..VWP..LHD198901-199110

FINLAND SPEC

main52101-04030iLN85,YN85..VWP199110-199702

main52101-04040iLN85,YN85..VWP..LHD199110-199702

FINLAND SPEC

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-89102iLN85,YN85..VWP198901-199702

52211HCUSHION(FOR FRONT BUMPER ARM)

main52211-89101iLN85,YN85..VWP198901-199702

9011910560

main90119-10560

9015960378

main90159-60378

9017908063

main90179-08063

9017908096

main90179-08096

9017908142

main90179-08142

9018906017

main90189-06017

9018906117

main90189-06117

9054008018

main90540-08018

13 parts on this diagram · 1 diagram in section
