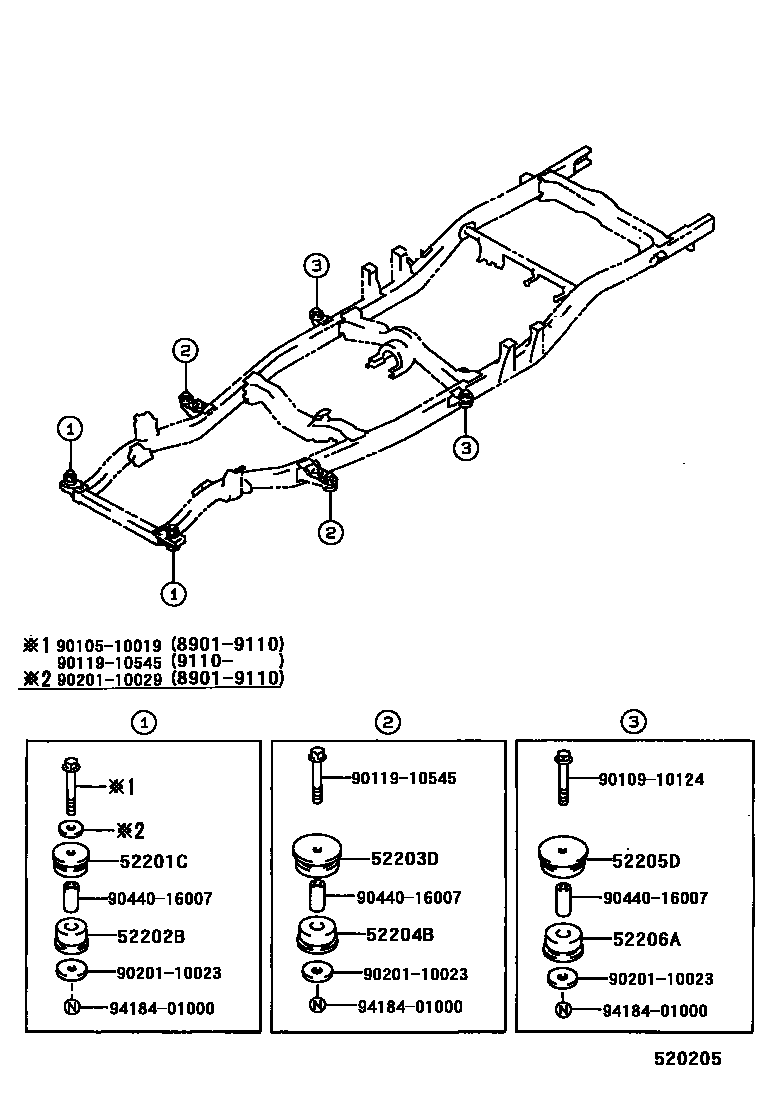

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35021iLN85,YN85..VWP198901-199702

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35021iLN85,YN85..VWP198901-199702

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-35100iLN85,YN85..VWP198901-199702

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35100iLN85,YN85..VWP198901-199702

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-35020iLN85,YN85..VWP198901-199702

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-35010iLN85,YN85..VWP198901-199702

9010510019

main90105-10019

9010910124

main90109-10124

9011910545

main90119-10545

9020110023

main90201-10023

9020110029

main90201-10029

9044016007

main90440-16007

9418401000

main94184-01000

13 parts on this diagram · 1 diagram in section
