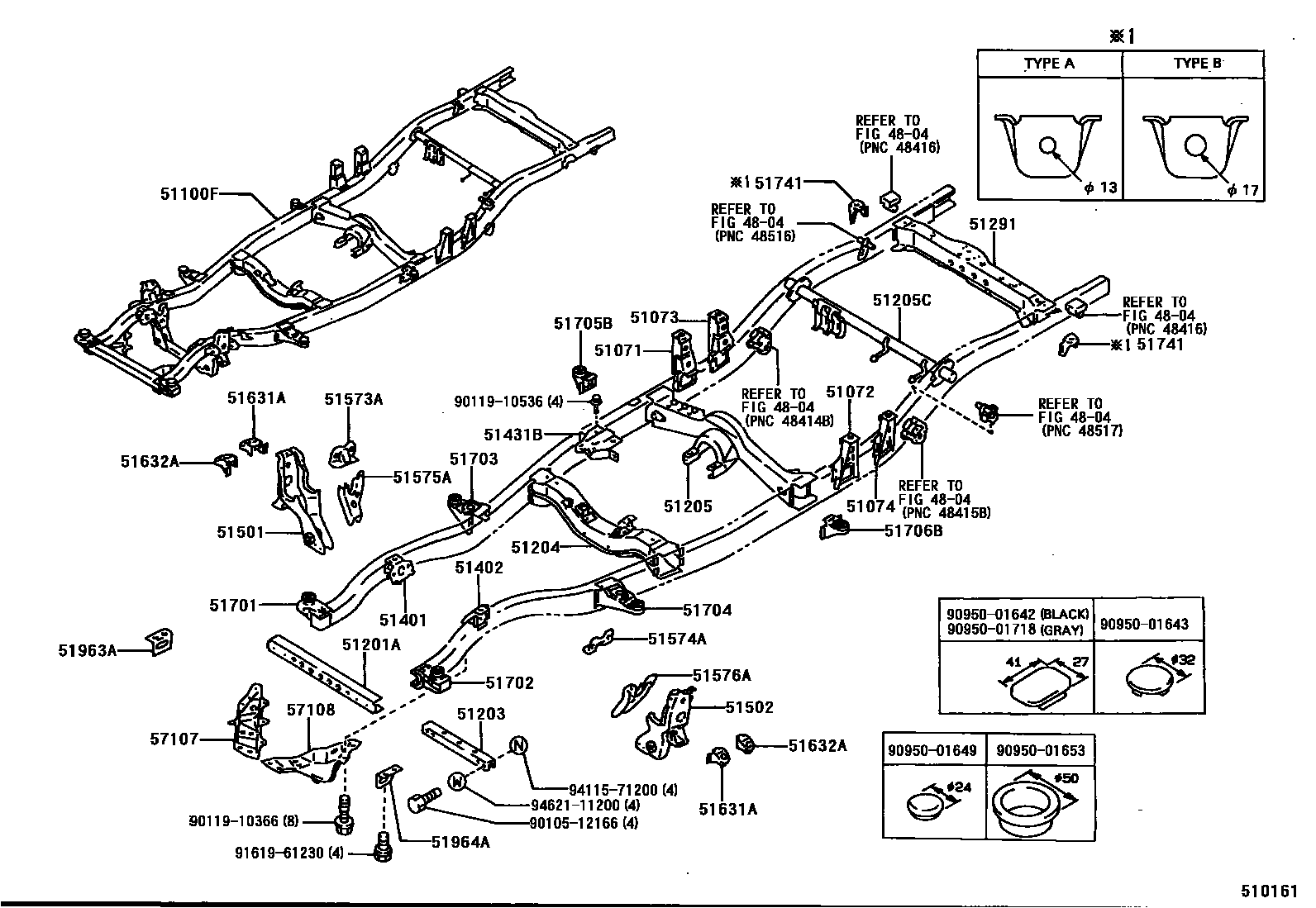

FRAME
4804
51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51100FFRAME SUB-ASSY
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51291CROSSMEMBER, FRAME, REAR
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51431BBRACKET, ENGINE REAR MOUNTING
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51573AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 RH
51574AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 LH
51575AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 RH
51576AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 LH
51631ASTOPPER, FRONT SUSPENSION REBOUND, NO.1
51632ASTOPPER, FRONT SUSPENSION REBOUND, NO.2
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51741BRACKET, REAR BODY MOUNTING, NO.1
51963AHOOK, TRANSPORT, FRONT RH
51964AHOOK, TRANSPORT, FRONT LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
9010512166
main90105-12166
9011910366
main90119-10366
9011910536
main90119-10536
9095001642
main90950-01642
9095001643
main90950-01643
9095001649
main90950-01649
9095001653
main90950-01653
9095001718
main90950-01718
9161961230
main91619-61230
9411571200
main94115-71200
9462111200
main94621-11200
45 parts on this diagram · 1 diagram in section
