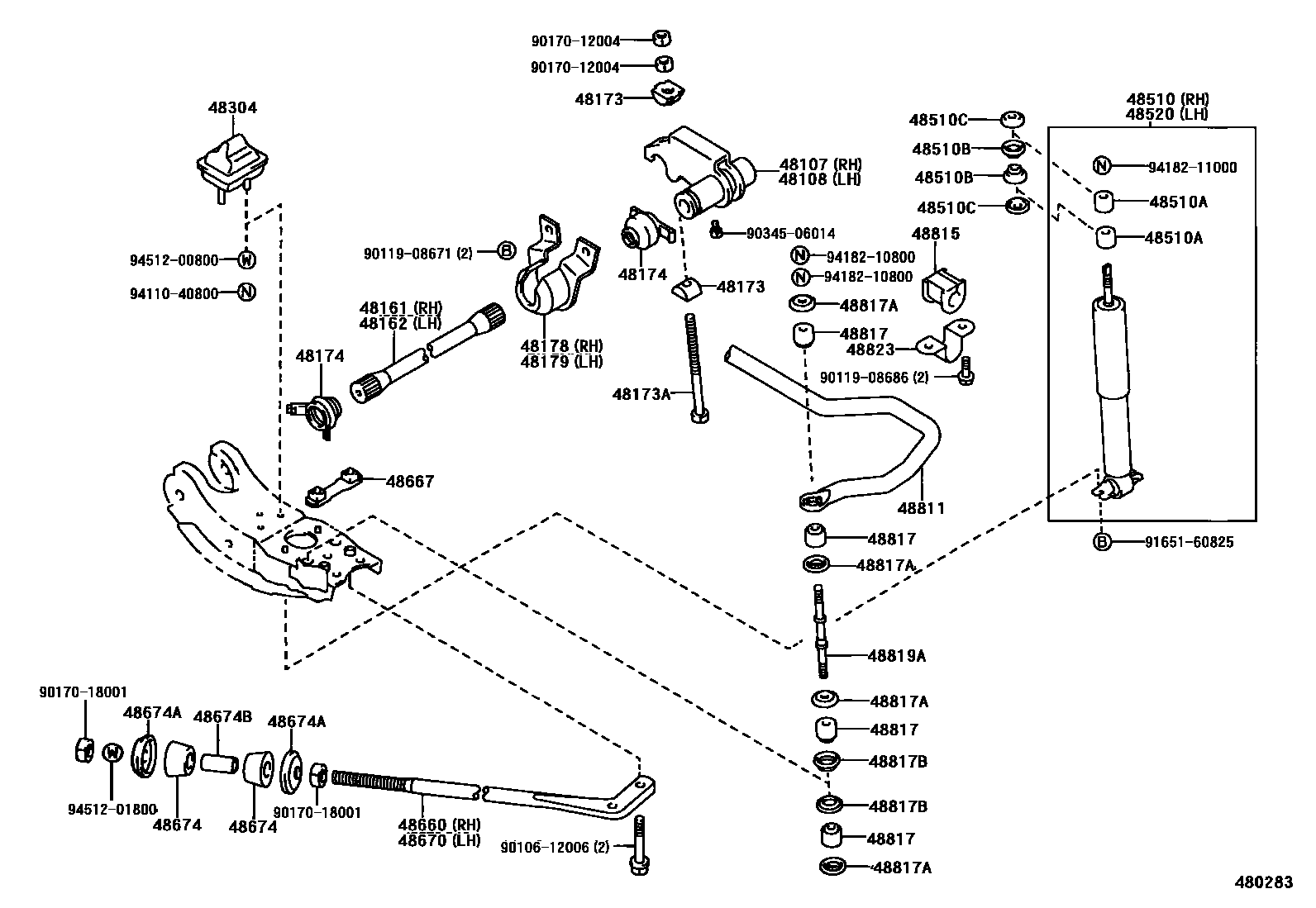

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48173SEAT, ANCHOR ARM ADJUSTER
UPR
LWR
48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
48174COVER, TORSION BAR DUST
FR
RR
48178PROTECTOR, TORSION BAR DUST COVER, RH
48179PROTECTOR, TORSION BAR DUST COVER, LH
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48660BAR ASSY, STRUT, RH
48667RETAINER, STRUT BAR
sub48667-35030
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48811BAR, STABILIZER, FRONT
W(POWER STEERING)
48815BUSH, FRONT STABILIZER BAR, NO.1
W(POWER STEERING)
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48823COVER, STABILIZER LINK(FOR FRONT)
9010612006
main90106-12006
9011908671
main90119-08671
9011908686
main90119-08686
9017012004
main90170-12004
9017018001
main90170-18001
9034506014
main90345-06014
9165160825
main91651-60825
9411040800
main94110-40800
9418210800
main94182-10800
9418211000
main94182-11000
9451200800
main94512-00800
9451201800
main94512-01800
40 parts on this diagram · 1 diagram in section
