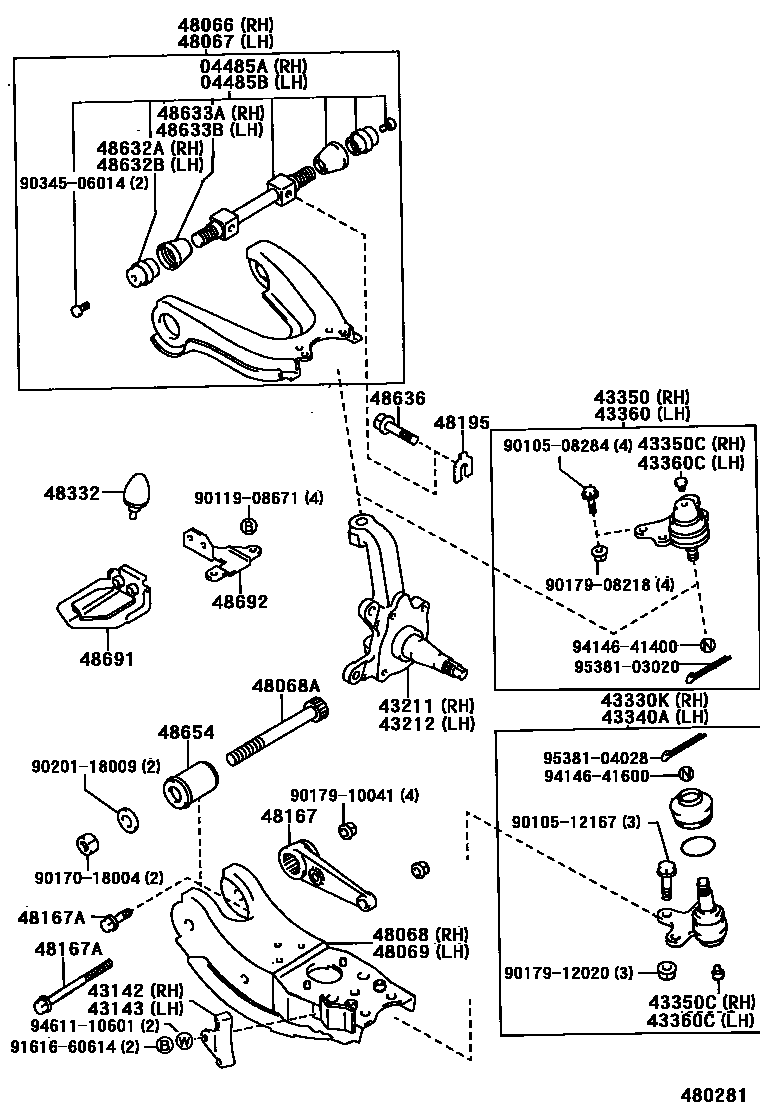

FRONT AXLE ARM & STEERING KNUCKLE

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-35020iLN85,YN85..VWP198901-199702

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-35020iLN85,YN85..VWP198901-199702

43142SEAT, STEERING KNUCKLE STOPPER, RH

main43142-35010iLN85,YN85..VWP199308-199702

43143SEAT, STEERING KNUCKLE STOPPER, LH

main43142-35010iLN85,YN85..VWP199308-199702

43211KNUCKLE, STEERING, RH

main43211-35130iLN85,YN85..VWP198901-199702

43212KNUCKLE, STEERING, LH

main43212-35090iLN85,YN85..VWP198901-199702

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39245iLN85,YN85..VWP198901-199110

sub43330-39295

main43330-39295iLN85,YN85..VWP199110-199702

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39295iLN85,YN85..VWP199110-199702

main43340-39225iLN85,YN85..VWP198901-199110

sub43330-39295

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39075iLN85,YN85..VWP198901-199702

43350CPLUG (FOR FRONT UPPER BALL JOINT RH)

main90345-06014iLN85,YN85..VWP198901-199702

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39075iLN85,YN85..VWP198901-199702

43360CPLUG (FOR FRONT UPPER BALL JOINT LH)

main90345-06014iLN85,YN85..VWP198901-199702

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35050iLN85,YN85..VWP198901-199702

sub48066-35130

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-35050iLN85,YN85..VWP198901-199702

sub48066-35130

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48605-35120iLN85,YN85..VWP198901-199110

sub48605-35121

main48605-35121iLN85,YN85..VWP199110-199702

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003iLN85,YN85..VWP198901-199702

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48606-35120iLN85,YN85..VWP198901-199110

sub48606-35121

main48606-35121iLN85,YN85..VWP199110-199702

48167ARM, TORQUE

main48167-35020iLN85,YN85..VWP198901-199110

main48167-35040iLN85,YN85..VWP199110-199702

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087iLN85,YN85..VWP198901-199702

L=129

main90105-10088iLN85,YN85..VWP198901-199702

L=26

sub91512-81025

48195SHIM, CAMBER ADJUST

main90565-12004iLN85,YN85..VWP198901-199702

T=4.0

main90565-12008iLN85,YN85..VWP198901-199702

T=1.6

main90565-12009iLN85,YN85..VWP198901-199702

T=1.2

48332BUMPER, FRONT SPRING, NO.2

main48332-04010iLN85,YN85..VWP199101-199702

main48332-35020iLN85,YN85..VWP198901-199101

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-30012iLN85,YN85..VWP198901-199702

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-30012iLN85,YN85..VWP198901-199702

48633ASEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH

main48633-35010iLN85,YN85..VWP198901-199702

48633BSEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH

main48633-35010iLN85,YN85..VWP198901-199702

48636BOLT, UPPER ARM SET

main90105-12080iLN85,YN85..VWP198901-199702

48654BUSH, LOWER ARM

main48654-35010iLN85,YN85..VWP198901-199702

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-35011iYN85..VWP198901-199410

48692BRACKET, UPPER ARM BUSH INSULATOR

main48692-35011iYN85..VWP198901-199410

9010508284

main90105-08284

9010512167

main90105-12167

9011908671

main90119-08671

9017018004

main90170-18004

9017908218

main90179-08218

9017910041

main90179-10041

9017912020

main90179-12020

9020118009

main90201-18009

9034506014

main90345-06014

9161660614

main91616-60614

9414641400

main94146-41400

9414641600

main94146-41600

9461110601

main94611-10601

9538103020

main95381-03020

9538104028

main95381-04028

44 parts on this diagram · 1 diagram in section
