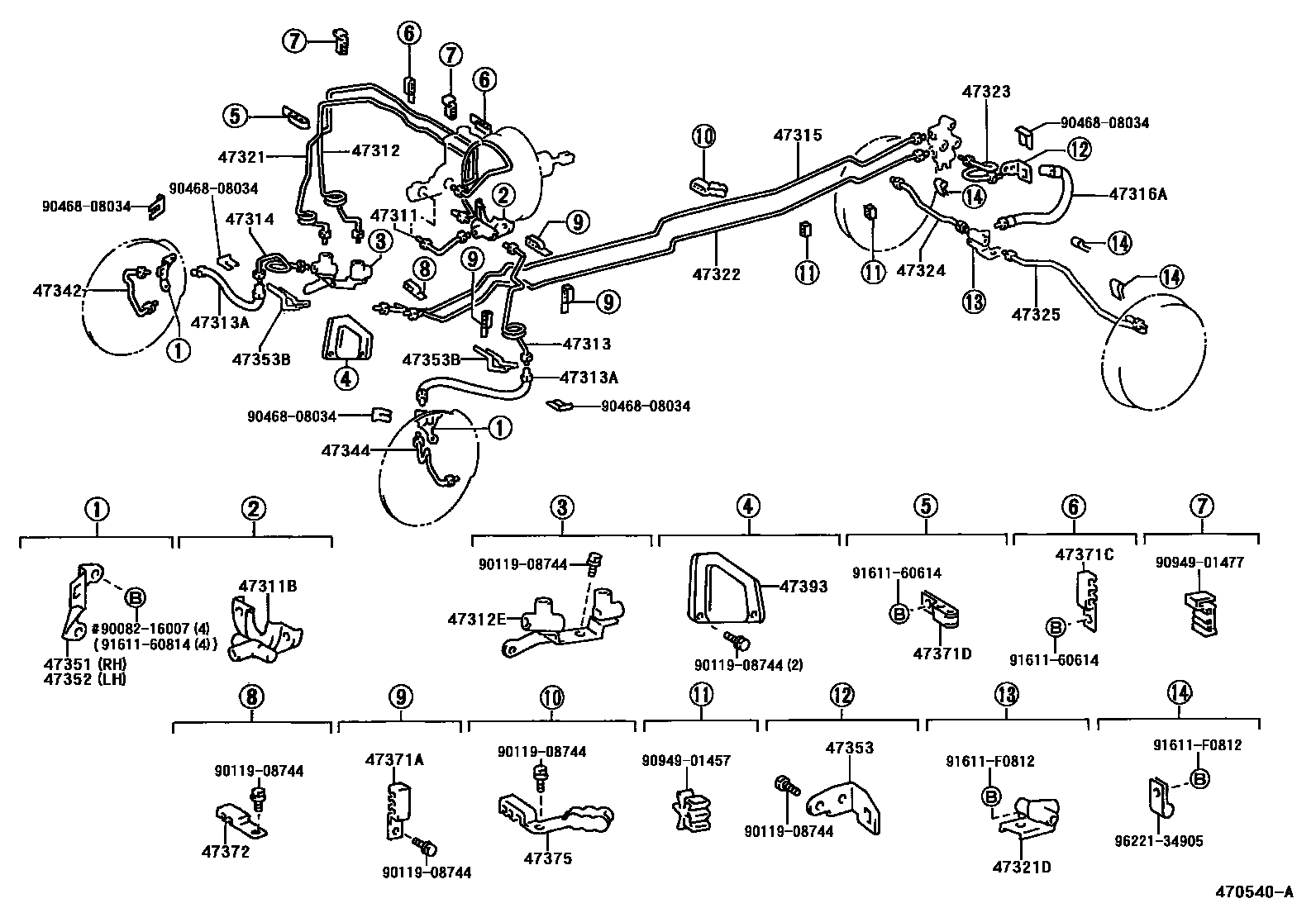

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47321TUBE, REAR BRAKE, NO.1
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47342TUBE, WHEEL CYLINDER, FRONT RH NO.2
47344TUBE, WHEEL CYLINDER, FRONT LH NO.2
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47353BRACKET, FLEXIBLE HOSE(FOR REAR)
47353BBRACKET, FLEXIBLE HOSE, NO.3
RH
LH
47371ACLAMP, BRAKE TUBE, NO.1
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47372CLAMP, BRAKE TUBE, NO.2
47375CLAMP, BRAKE TUBE, NO.5
47393INSULATOR, BRAKE TUBE HEAT
9008216007
main90082-16007
9011908744
9046808034
9094901457
9094901477
9161160614
9161160814
91611F0812
9622134905
36 parts on this diagram · 3 diagrams in section
