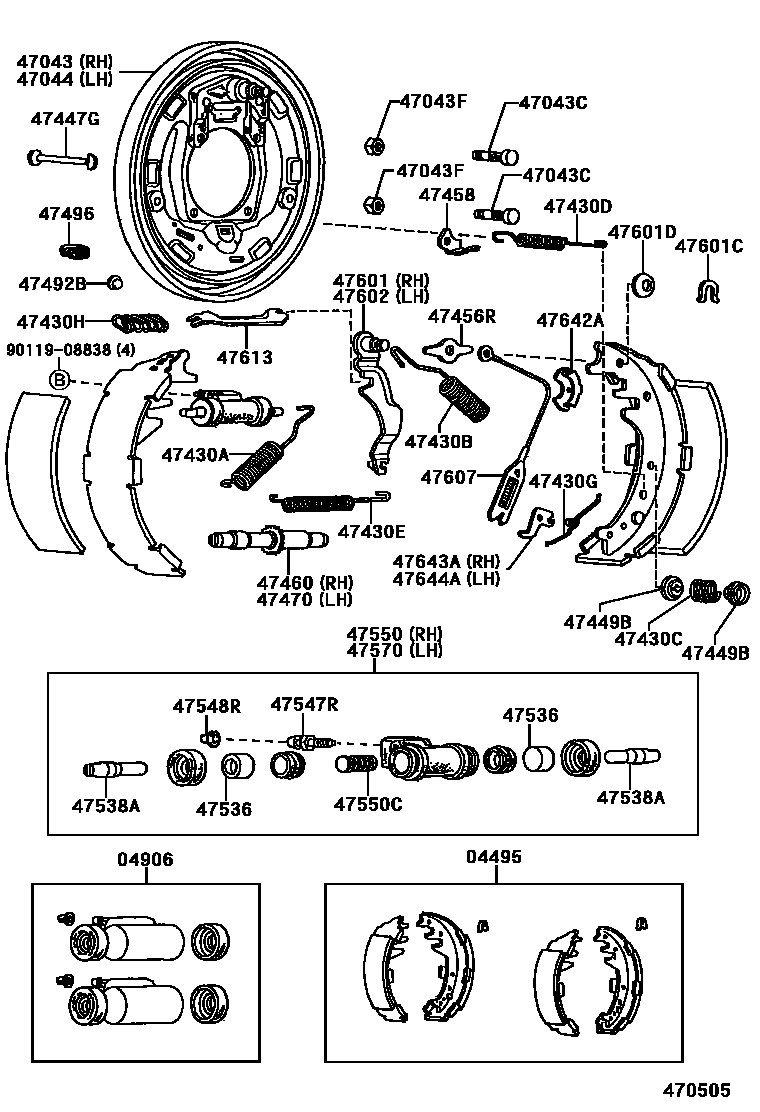

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
*10-1.25PX37-18.5
*10-1.25PX41-18
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
RH
LH
47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47456RPLATE, REAR BRAKE SHOE GUIDE
47458BRACKET, REAR BRAKE SHOE RETURN SPRING
RH
LH
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47538ALINK, WHEEL CYLINDER CONNECTING
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601CWASHER, C(FOR REAR BRAKE)
T=1.6
47601DWASHER, WAVE(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47607CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST
47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
RH
LH
47642AGUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE
9011908838
main90119-08838
