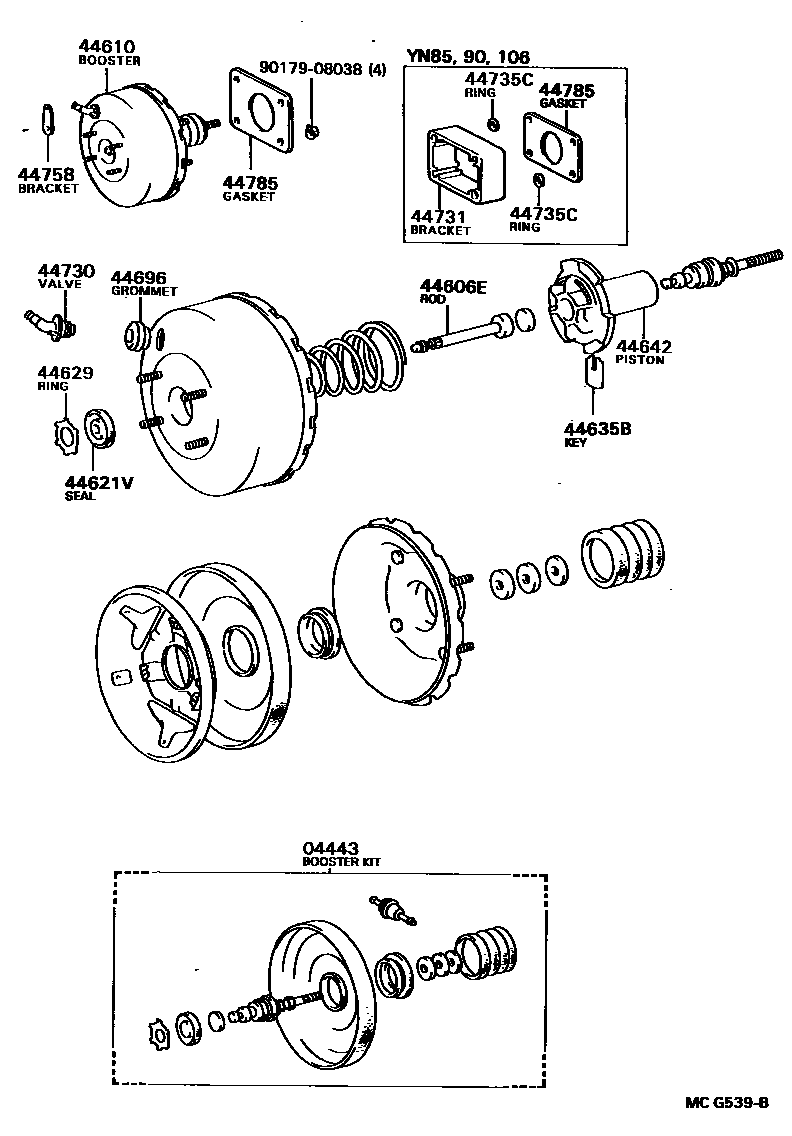

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-35710iYN85..VWP..RHD198907-199110

main04443-35720iYN85..VWP..LHD198901-199110

main04443-35730iLN85..VWP198901-199110

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iLN85,YN85..VWP198901-199110

44610BOOSTER ASSY, BRAKE

main44610-3D080iYN85..VWP..RHD198907-199110

sub44610-3D081

main44610-3D081iYN85..VWP..RHD199110-199410

main44610-3D090iYN85..VWP..LHD198901-199110

sub44610-3D091

main44610-3D091iYN85..VWP..LHD199110-199410

main44610-3D121iLN85..VWP..RHD199210-199702

main44610-3D130iLN85..VWP198901-199110

sub44610-3D131

main44610-3D131iLN85..VWP..LHD199110-199702

44621VSEAL, BOOSTER BODY

main44621-28120iLN85,YN85..VWP198901-199110

44629RING, CIRCULAR INTERNAL

main44628-28120iLN85,YN85..VWP198901-199110

44635BKEY, VALVE STOPPER

main44635-28120iLN85,YN85..VWP198901-199110

44642PISTON, BRAKE BOOSTER

main44642-32030iLN85,YN85..VWP198901-199110

44696GROMMET, CHECK VALVE

main90480-24439iYN85..VWP..RHD198907-199410

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iYN85..VWP..LHD198901-199410

main44730-30040iYN85..VWP..RHD198907-199410

main44730-60050iLN85..VWP198901-199702

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35110iYN85..VWP198901-199410

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010iYN85..VWP198901-199410

44758BRACKET, VACUUM CHECK VALVE

main44758-14140iYN85..VWP..RHD198907-199410

main44758-35080iYN85..VWP..LHD198901-199410

44785GASKET, BRAKE BOOSTER

main44785-35020iYN85..VWP198901-199702

9017908038

main90179-08038

14 parts on this diagram · 3 diagrams in section
