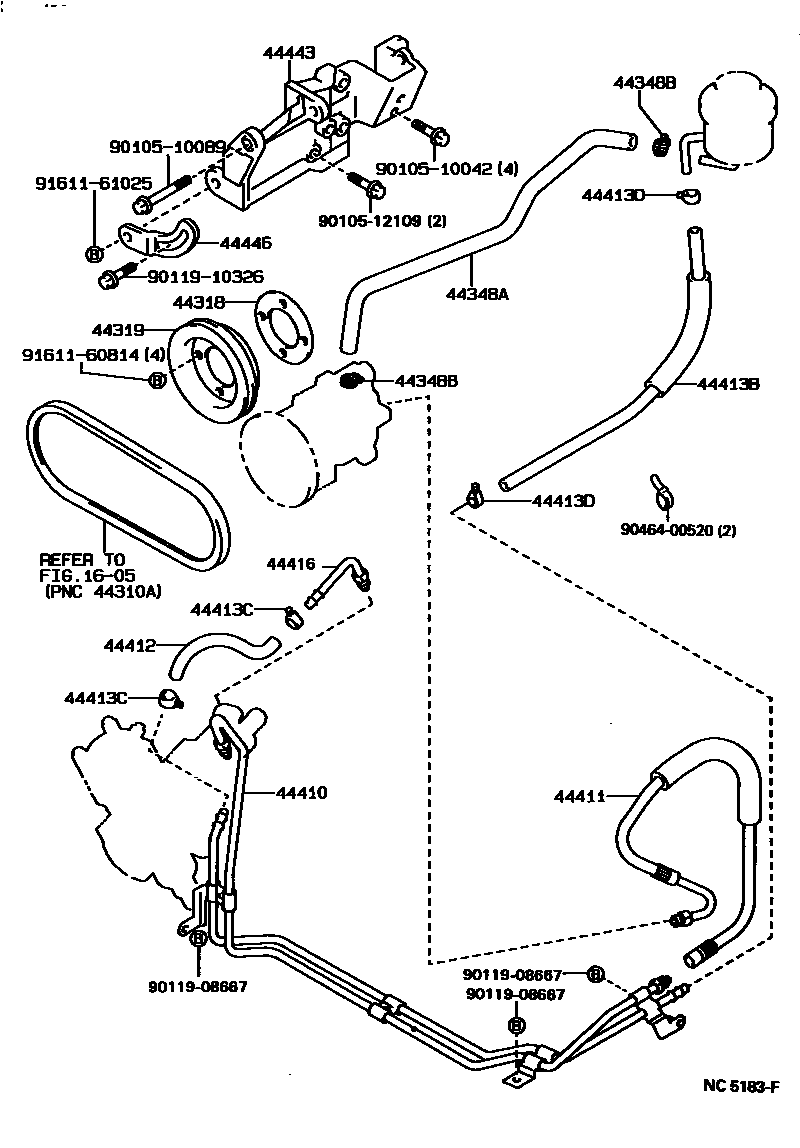

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYN85..VWP..LHD198901-199410

main44318-35010iLN85..VWP..LHD198901-199702

44319PULLEY, VANE PUMP DRIVE

main44319-22010iLN85..VWP..RHD199210-199702

main44319-28013iYN85..VWP..LHD198901-199410

main44319-35030iLN85..VWP..LHD198901-199702

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35110iLN85..VWP..LHD198901-199702

sub44348-35111

main44348-35160iLN85..VWP..RHD199210-199702

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iLN85..VWP198901-199404

main90467-21005iLN85..VWP199404-199702

sub90467-21010

44410TUBE ASSY, PRESSURE FEED

main44410-35130iLN85..VWP..LHD198901-199702

main44410-35370iLN85..VWP..RHD199210-199702

44411HOSE, PRESSURE FEED

main44411-35260iLN85..VWP198901-198910

sub44411-35261

main44411-35261iLN85..VWP..LHD198910-199607

sub44411-35262

main44411-35262iLN85..VWP..LHD199607-199702

main44411-35310iYN85..VWP..LHD198901-199410

main44411-35320iLN85..VWP..RHD199210-199702

44412HOSE, RETURN

main90445-18079iLN85..VWP..RHD198901-199702

sub90445-18137

main90445-18105iLN85..VWP..LHD198901-199702

main90445-18147iYN85..VWP..LHD199305-199410

44413BHOSE(FOR RESERVOIR TANK INLET)

main90447-18040iLN85..VWP..LHD198901-199702

main90447-18044iLN85..VWP..RHD199210-199702

44413CCLAMP(FOR RETURN TUBE OUTLET HOSE)

main90460-01001iLN85..VWP198901-199404

main90467-16008iLN85..VWP199404-199702

sub90467-16019

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001iLN85..VWP198901-199404

main90467-16008iLN85..VWP199404-199702

sub90467-16019

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-35040iLN85..VWP..RHD199210-199702

main44416-35070iLN85,YN85..VWP..LHD198901-199702

44443BRACKET, PUMP

main44443-28011iYN85..VWP..LHD198901-199410

main44443-30080iLN85..VWP..RHD199210-199702

main44443-35011iLN85..VWP..LHD198901-199702

44446STRUT, ADJUSTING

main44446-30070iLN85..VWP..RHD199210-199702

9010510042

main90105-10042

9010510089

main90105-10089

9010512109

main90105-12109

9011908667

main90119-08667

9011910326

main90119-10326

9046400520

main90464-00520

9161160814

main91611-60814

9161161025

main91611-61025

22 parts on this diagram · 4 diagrams in section
