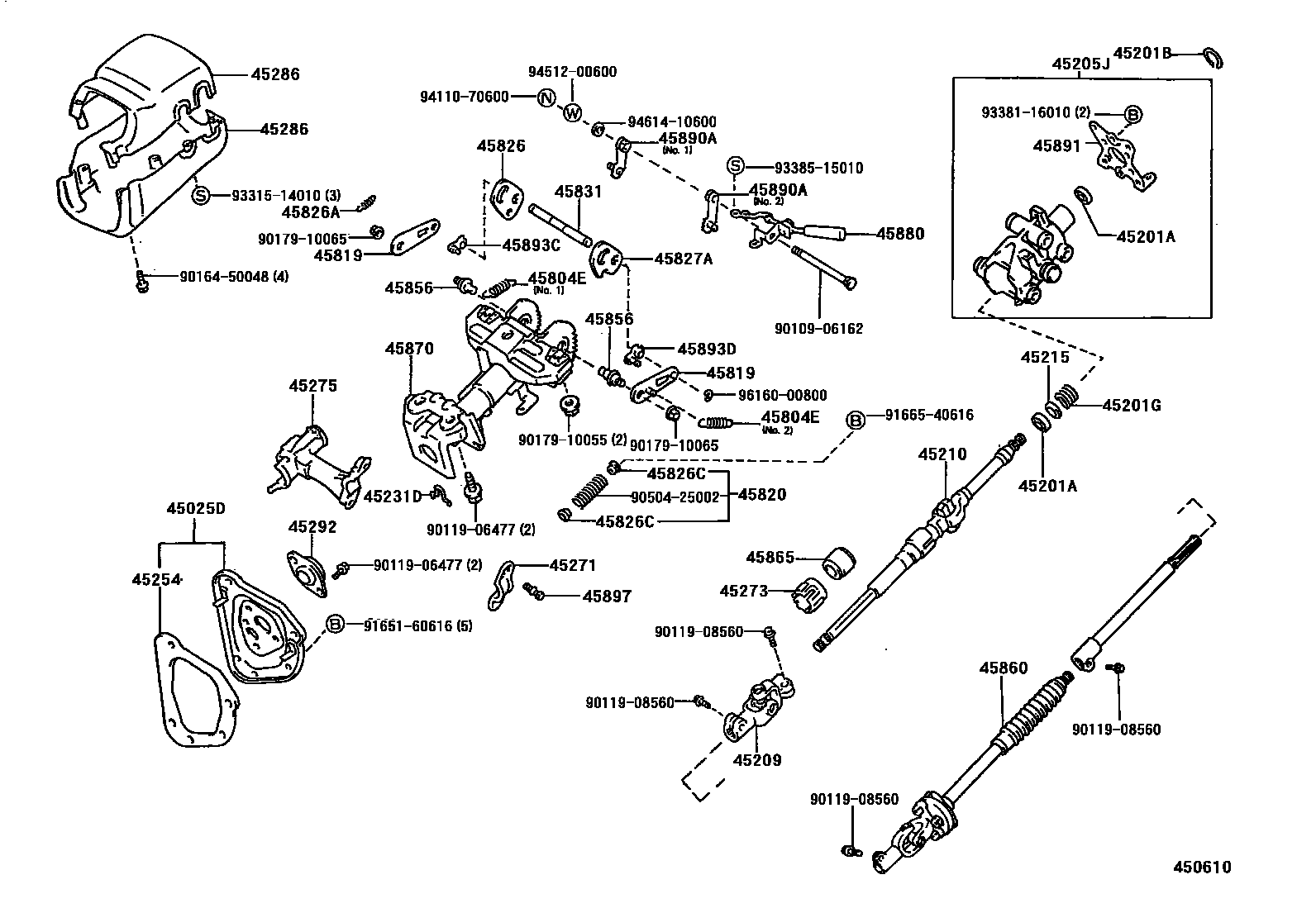

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
sub90363-18010
W(COLLAPSIBLE TILT STEERING),UPR
sub90363-18005
W(COLLAPSIBLE TILT STEERING),LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,W(COLLAPSIBLE TILT STEERING)
T=1.20,LWR
T=1.35-1.45,UPR
T=1.20,UPR
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
W(COLLAPSIBLE TILT STEERING)
45215COLLAR, MAIN SHAFT BEARING THRUST
45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)
45254SHIELD, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
W(COLLAPSIBLE TILT STEERING)
45273BUSH, STEERING MAIN SHAFT
45286COVER, STEERING COLUMN
W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR
sub45286-35290
W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR
sub45286-35290
W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#
sub45287-35210
W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#
sub45287-35210
45292SEAL, MAIN SHAFT LOWER DUST
45804ESPRING, TENSION(FOR STEERING TILT LEVER)
NO.2
NO.1
45819RETAINER, TILT LEVER
45820SPRING ASSY, TILT STEERING SUPPORT
45826LEVER, STEERING TILT
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45856BOLT, TILT STEERING, NO.2
OD=9.989-9.998
45865COLLAR, STEERING MAIN SHAFT
45870TUBE ASSY, STEERING COLUMN
W(COLLAPSIBLE TILT STEERING)
45880LEVER ASSY, STEERING TILT
45890APAWL ASSY, TILT STEERING
NO.1
NO.2
45891BRACKET, TURN SIGNAL
45893CSTOPPER, STEERING PAWL, RH
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
45893DSTOPPER, STEERING PAWL, LH
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK G
MARK A
MARK B
MARK C
MARK D
MARK E
45897BOLT, STEERING LOCK SET
9010906162
main90109-06162
9011906477
main90119-06477
9011908560
main90119-08560
9016450048
main90164-50048
9017910055
main90179-10055
9017910065
main90179-10065
9050425002
main90504-25002
9165160616
main91651-60616
9166540616
main91665-40616
9331514010
main93315-14010
9338116010
main93381-16010
9338515010
main93385-15010
9411070600
main94110-70600
9451200600
main94512-00600
9461410600
main94614-10600
9616000800
main96160-00800
49 parts on this diagram · 2 diagrams in section
