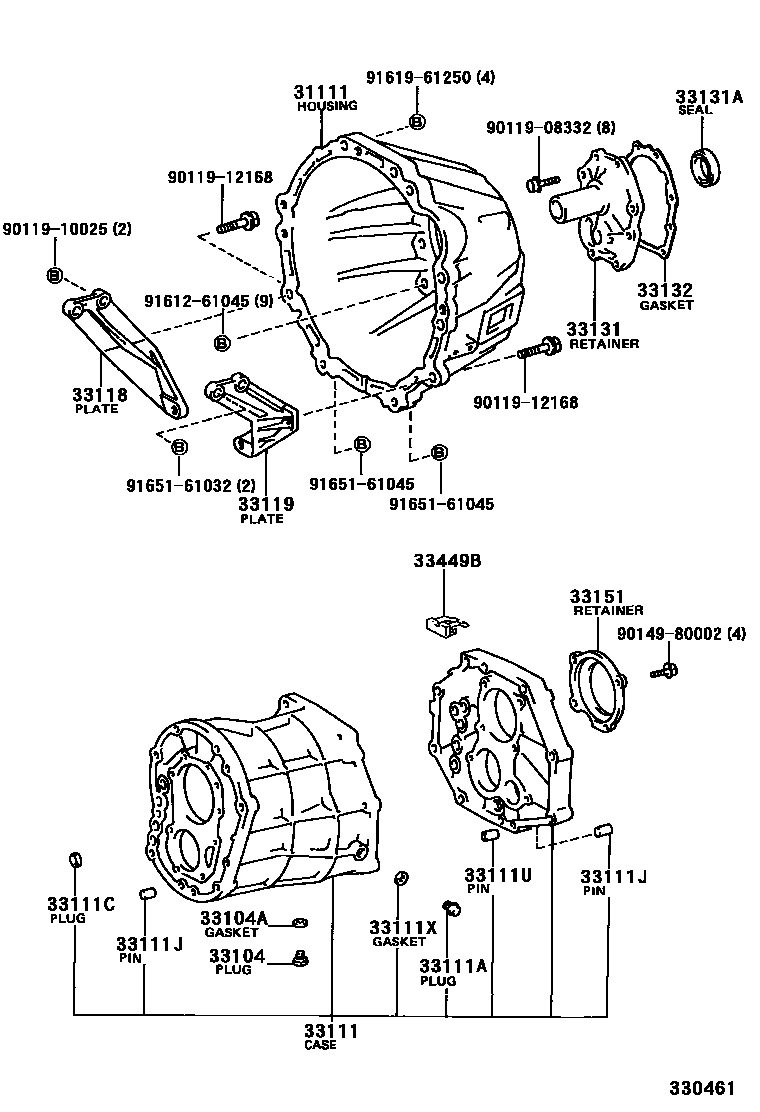

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G5# 0002 1G5#

31111HOUSING, CLUTCH

main31111-22112iLN85..VWP198901-198912

sub31111-22113

main31111-22113iLN85..VWP198912-199006

sub31111-22114

main31111-22114iLN85..VWP199006-199702

main31111-30180iYN85..VWP198901-199410

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLN85,YN85..VWP198901-199702

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLN85,YN85..VWP198901-199702

33111CASE, MANUAL TRANSMISSION

main33101-35050iLN85,YN85..VWP198901-199702

sub33101-35051

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iLN85,YN85..VWP198901-199702

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLN85,YN85..VWP198901-199702

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLN85,YN85..VWP198901-199702

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iLN85,YN85..VWP198901-199702

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iLN85,YN85..VWP198903-199702

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLN85..VWP198901-199702

main33118-28010iYN85..VWP198901-199410

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLN85..VWP198901-199702

main33119-28010iYN85..VWP198901-199410

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLN85,YN85..VWP198901-199702

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLN85,YN85..VWP198901-199007

sub90311-30014

main90311-30014iLN85,YN85..VWP199007-199702

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLN85,YN85..VWP198901-199702

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iLN85,YN85..VWP198901-199702

33449BMAGNET, TRANSMISSION

main33449-26010iLN85,YN85..VWP198908-199702

9011908332

main90119-08332

9011910025

main90119-10025

9011912168

main90119-12168

9014980002

main90149-80002

9161261045

main91612-61045

9161961250

main91619-61250

9165161032

main91651-61032

9165161045

main91651-61045

24 parts on this diagram · 2 diagrams in section
