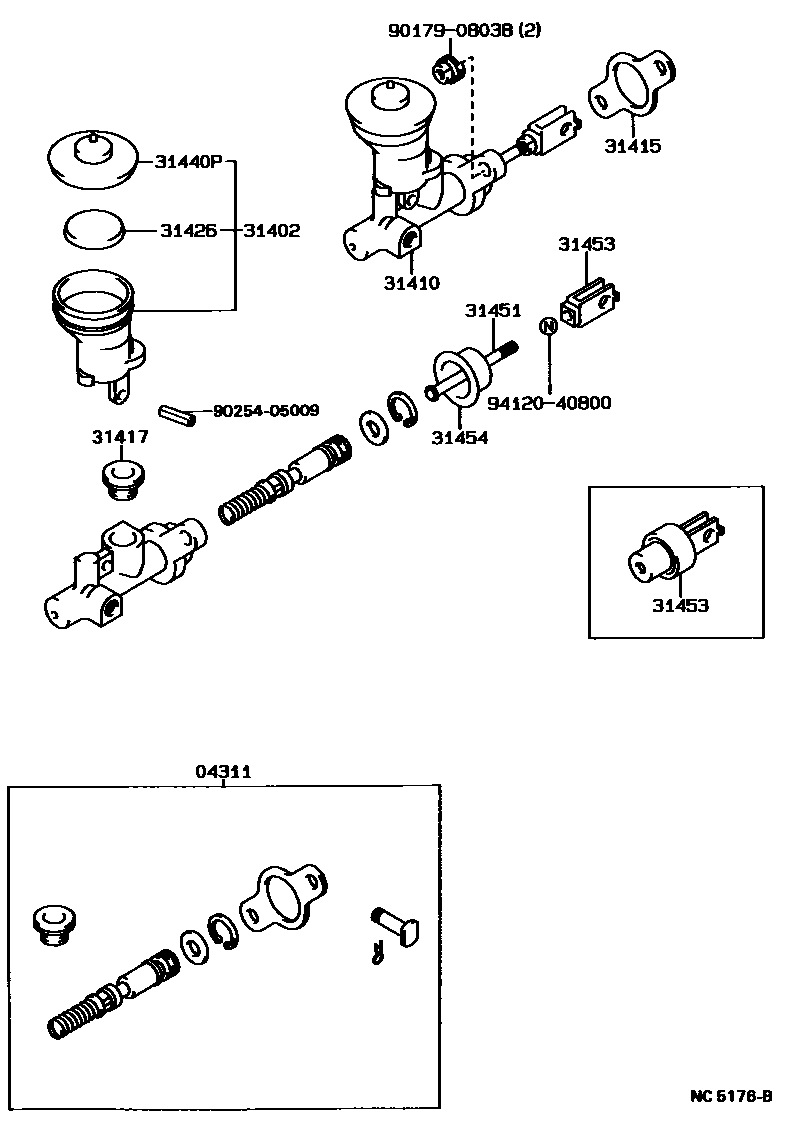

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iLN85,YN85..VWP199110-199403

sub04311-12080

main04311-35060iLN85,YN85..VWP198901-198905

sub04311-35070

main04311-35070iLN85,YN85..VWP198901-199403

VW BRAND

main04311-35070iLN85,YN85..VWP198905-199110

main04311-35090iLN85,YN85..VWP199403-199702

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35030iLN85,YN85..VWP198901-199702

main31402-35050iLN85,YN85..VWP198901-199702

VW BRAND

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35370iYN85..VWP198901-199410

sub31410-35380

main31410-35380iLN85..VWP198901-199702

main31410-35390iYN85..VWP198901-199410

VW BRAND

sub31410-35400

main31410-35410iLN85..VWP198901-199702

VW BRAND

sub31410-35400

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iLN85,YN85..VWP198901-199702

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iLN85,YN85..VWP198901-199702

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN85,YN85..VWP198901-199702

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35010iLN85,YN85..VWP198901-199702

VW BRAND

main47230-20040iLN85,YN85..VWP198901-199702

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iYN85..VWP198901-199410

main31451-35080iLN85..VWP198901-199403

main31451-36040iLN85..VWP199403-199702

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-35020iLN85..VWP198901-198904

sub31404-35021

main31404-35021iLN85..VWP198904-199702

sub31404-35030

main31453-35010iYN85..VWP198901-199410

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iLN85,YN85..VWP199403-199702

main31454-24010iLN85,YN85..VWP198901-199403

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
