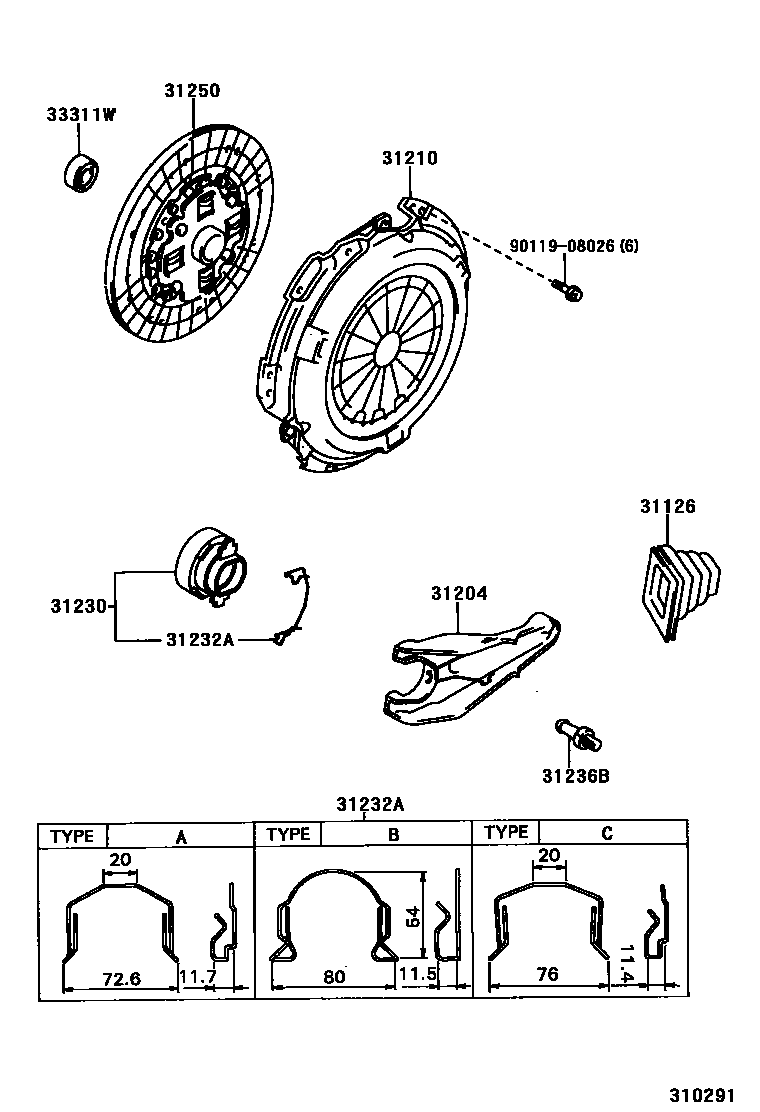

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYN85..VWP198901-199410

main31126-20070iLN85..VWP198901-199702

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYN85..VWP198901-199410

main31204-35050iLN85..VWP198901-199702

31210COVER ASSY, CLUTCH

main31210-04020iYN85..VWP199101-199103

VW BRAND,W(45A ALTERNATOR)

main31210-04020iYN85..VWP199103-199410

main31210-22120iYN85..VWP198901-199103

sub31210-22121

main31210-35090iLN85..VWP198901-199702

sub31210-22100

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLN85..VWP198901-199702

sub31230-35071

main31230-35090iYN85..VWP198901-199410

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLN85,YN85..VWP198901-199702

TYPE A:REFER TO ILLUSTRATION

main31232-35030iLN85..VWP198901-199702

TYPE C:REFER TO ILLUSTRATION

main31232-35040iYN85..VWP198901-199410

TYPE C:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-30060iLN85,YN85..VWP198901-199702

31250DISC ASSY, CLUTCH

main31250-04020iYN85..VWP199101-199103

VW BRAND,W(45A ALTERNATOR)

main31250-04020iYN85..VWP199103-199410

main31250-25122iYN85..VWP198901-199103

sub31250-20240

main31250-35200iLN85..VWP198901-199506

sub31250-35201

main31250-35201iLN85..VWP199506-199702

sub31250-35202

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLN85,YN85..VWP198901-199702

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
