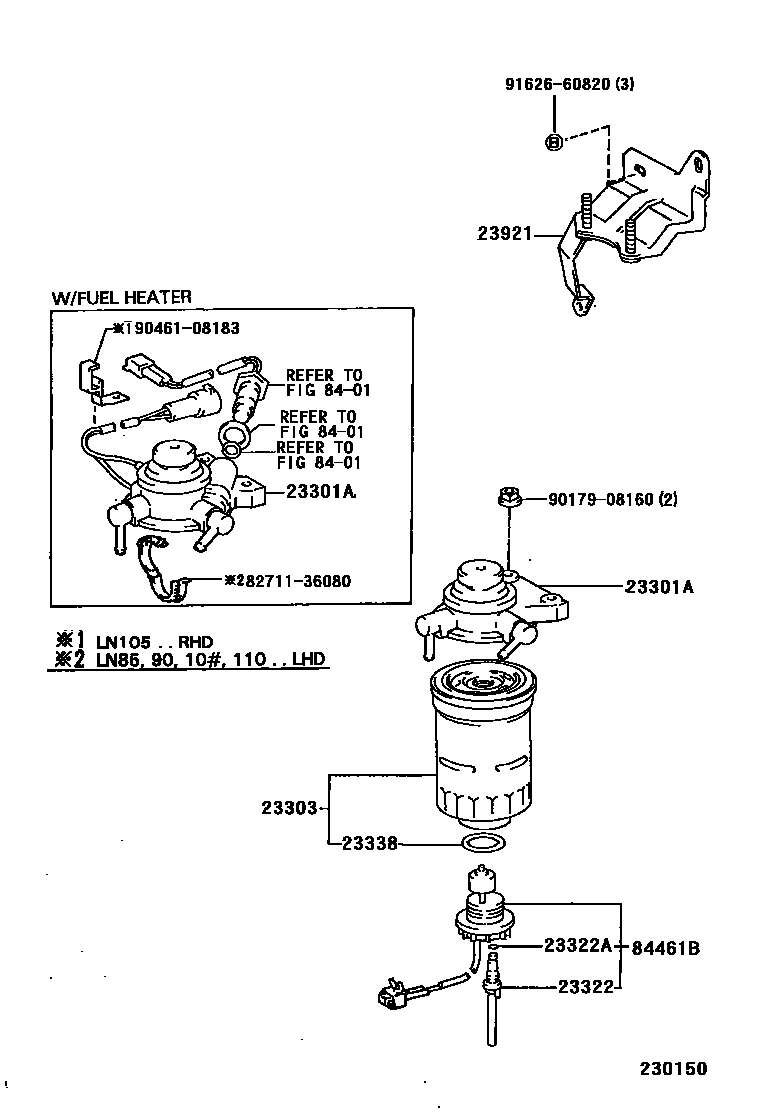

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-54420i2L..LN85..VWP..RHD199210-199702

main23301-54460i2L..LN85..VWP..LHD198901-199702

main23301-54470i2L..LN85..VWP..LHD198901-199702

COLD SPEC

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L..LN85..VWP199201-199702

main23303-64020i2L..LN85..VWP198901-199201

sub23303-64010

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L..LN85..VWP198901-199702

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L..LN85..VWP198901-199702

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L..LN85..VWP198901-199702

23921SUPPORT, FUEL FILTER

main23921-54270i2L..LN85..VWP..RHD199210-199702

main23921-54280i2L..LN85..VWP..LHD198901-199702

sub23921-54281

main23921-72010i2Y..YN85..VWP198901-199410

8401

84461BSWITCH, LEVEL WARNING

main84461-35050iLN85..VWP198901-199702

sub84461-35130

main84461-35060iLN85..VWP..RHD199311-199702

8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36080

9017908160

main90179-08160

9046108183

main90461-08183

9162660820

main91626-60820

12 parts on this diagram · 2 diagrams in section
