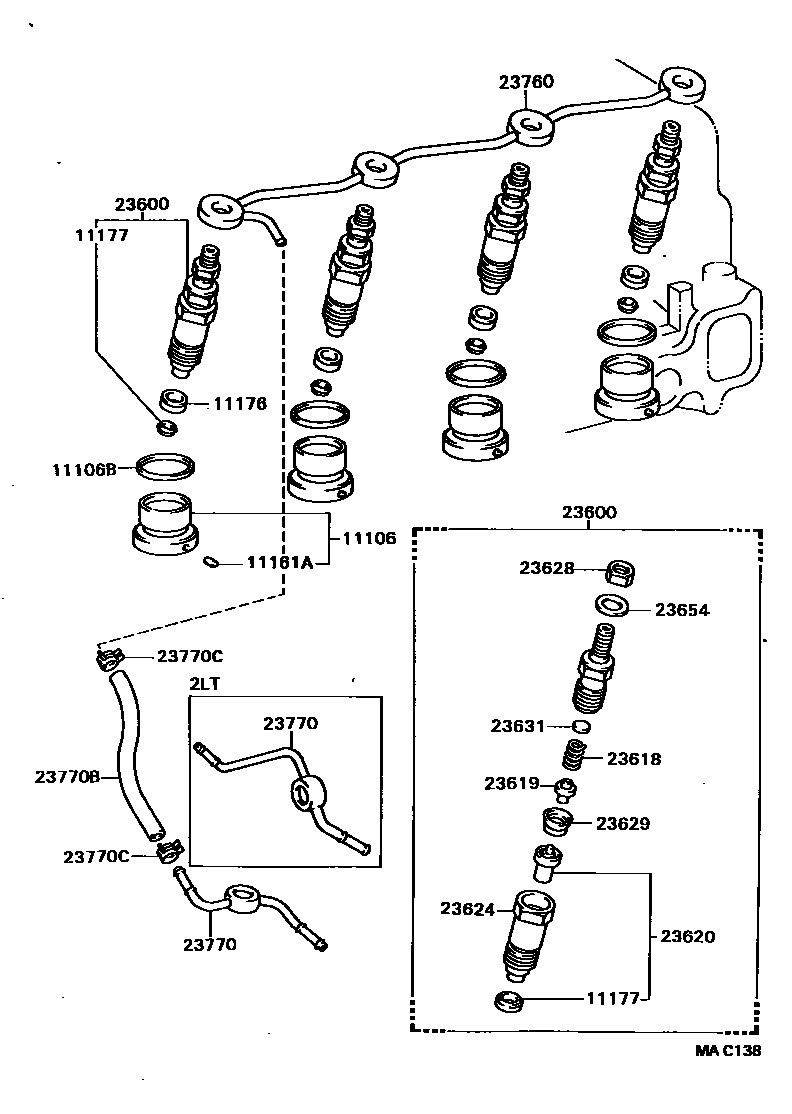

INJECTION NOZZLE
11106CHAMBER SUB-ASSY, COMBUSTION
11106BSHIM(FOR COMBUSTION CHAMBER)
T=0.03
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
NORWAY SPEC
FINLAND OR NORWAY SPEC
23618SPRING, NOZZLE HOLDER PRESSURE
FINLAND OR NORWAY SPEC
NORWAY SPEC
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
NORWAY SPEC
FINLAND OR NORWAY SPEC
23624NUT, NOZZLE RETAINING
sub23624-64041
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=0.900
T=0.950
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770BHOSE, FUEL
L=200(*H,L=120),ID=4
18 parts on this diagram · 1 diagram in section
