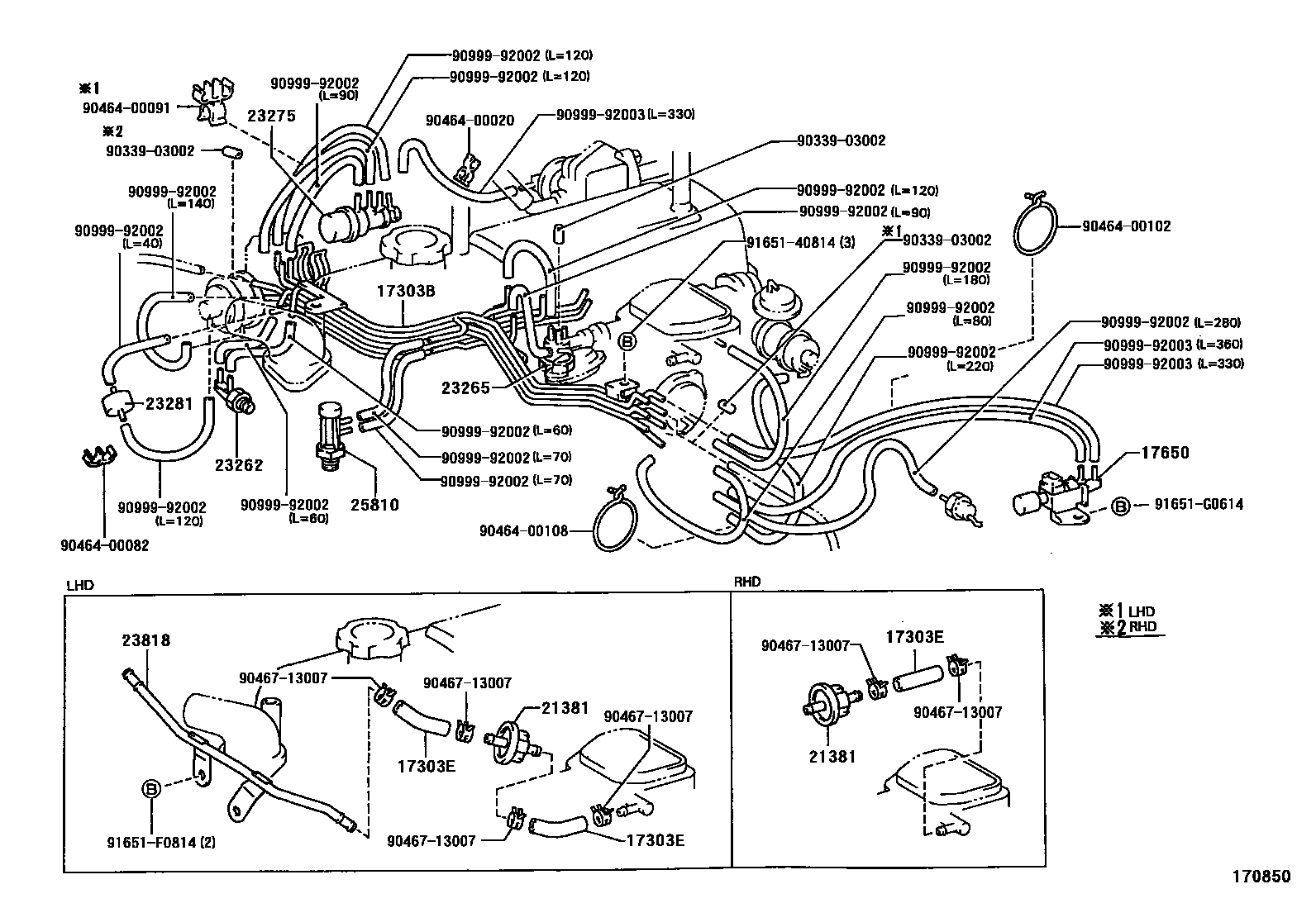

VACUUM PIPING

0001 1 0002 1

17303BPIPE SUB-ASSY, AIR, NO.1

main17303-73030i2Y..YN85..VWP198901-199003

main17303-73080i2Y..YN85..VWP199003-199410

17303EHOSE, NO.1(FOR AIR PIPE)

main90445-14075i2Y..YN85..VWP..LHD198901-199410

main90445-14079i2Y..YN85..VWP..RHD198907-199410

17650VALVE ASSY, VACUUM SWITCHING

main89570-35200i2Y..YN85..VWP198901-199410

21381BIMETAL, THERMOSTATIC

main21381-71050i2Y..YN85..VWP198901-199410

23262VALVE, BIMETAL VACUUM SWITCHING, NO.1

main90925-05044i2Y..YN85..VWP198901-199410

23265FILTER, GAS, NO.1

main90917-11024i2Y..YN85..VWP198901-199004

sub90917-11027

main90917-11027i2Y..YN85..VWP199004-199410

23275VALVE, VACUUM CONTROL, NO.1

main90925-03166i2Y..YN85..VWP198901-199410

23281VALVE, VACUUM TRANSMITTING, NO.1

main90925-01014i2Y..YN85..VWP198901-199003

main90925-01041i2Y..YN85..VWP199003-199410

23818PIPE, FUEL VAPOR FEED

main23818-71011i2Y..YN85..VWP..LHD198901-199003

sub23818-71012

main23818-71012i2Y..YN85..VWP..LHD199003-199410

25810VALVE ASSY, BIMETAL

main25820-37010i2Y..YN85..VWP198901-199003

main90925-02077i2Y..YN85..VWP199003-199410

9033903002

main90339-03002

9046400020

main90464-00020

9046400082

main90464-00082

9046400091

main90464-00091

9046400102

main90464-00102

9046400108

main90464-00108

9046713007

main90467-13007

9099992002

main90999-92002

9099992003

main90999-92003

9165140814

main91651-40814

91651F0814

main91651-F0814

91651G0614

main91651-G0614

22 parts on this diagram · 2 diagrams in section
