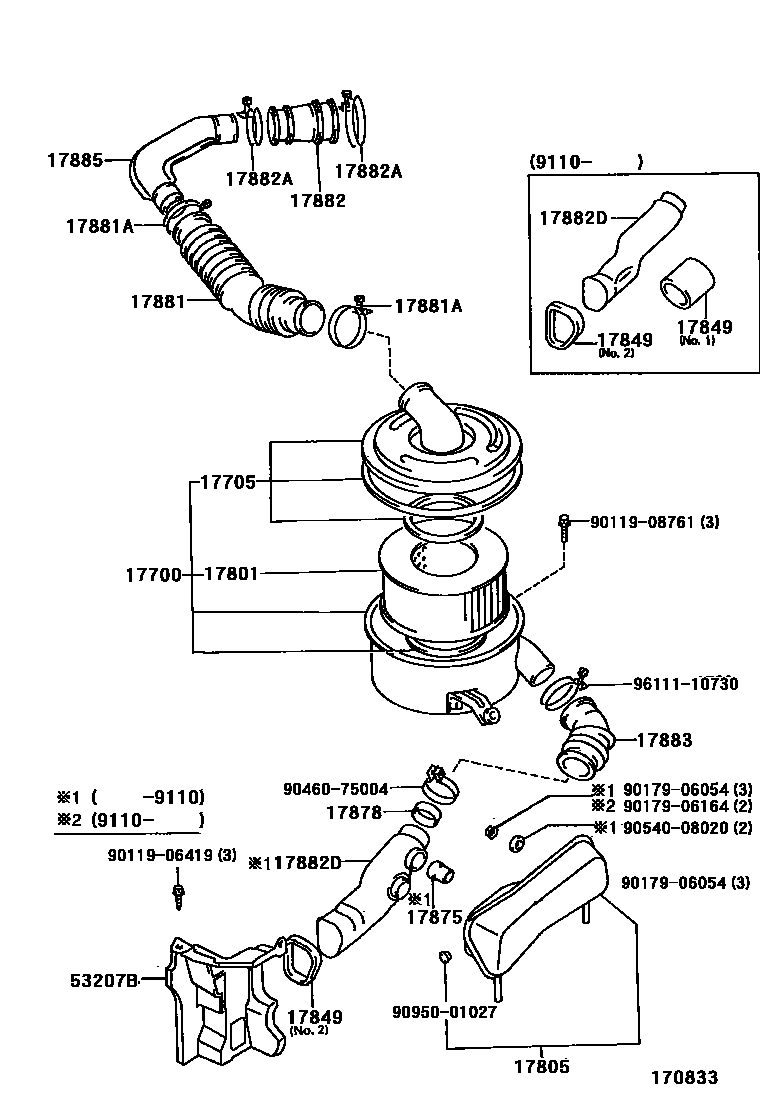

AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17849GASKET, INTAKE AIR CONNECTOR
NO.3
NO.1
NO.1
NO.2
*FRG
17875PIPE, INTAKE AIR CONNECTOR
17878PIPE, INTAKE AIR CONNECTOR, NO.3
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
PIPE SIDE
AIR CLEANER SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
PIPE SIDE
INTAKE MANIFOLD SIDE
17882DHOSE, COOL AIR INTAKE
17883HOSE, AIR CLEANER, NO.3
17885PIPE, AIR CLEANER
53207BDUCT SUB-ASSY, COOL AIR
FINLAND SPEC OR *FRG
*FRG
*FRG
9011906419
main90119-06419
9011908761
main90119-08761
9017906054
main90179-06054
9017906164
main90179-06164
9046075004
main90460-75004
9054008020
main90540-08020
9095001027
main90950-01027
9611110730
main96111-10730
23 parts on this diagram · 2 diagrams in section
