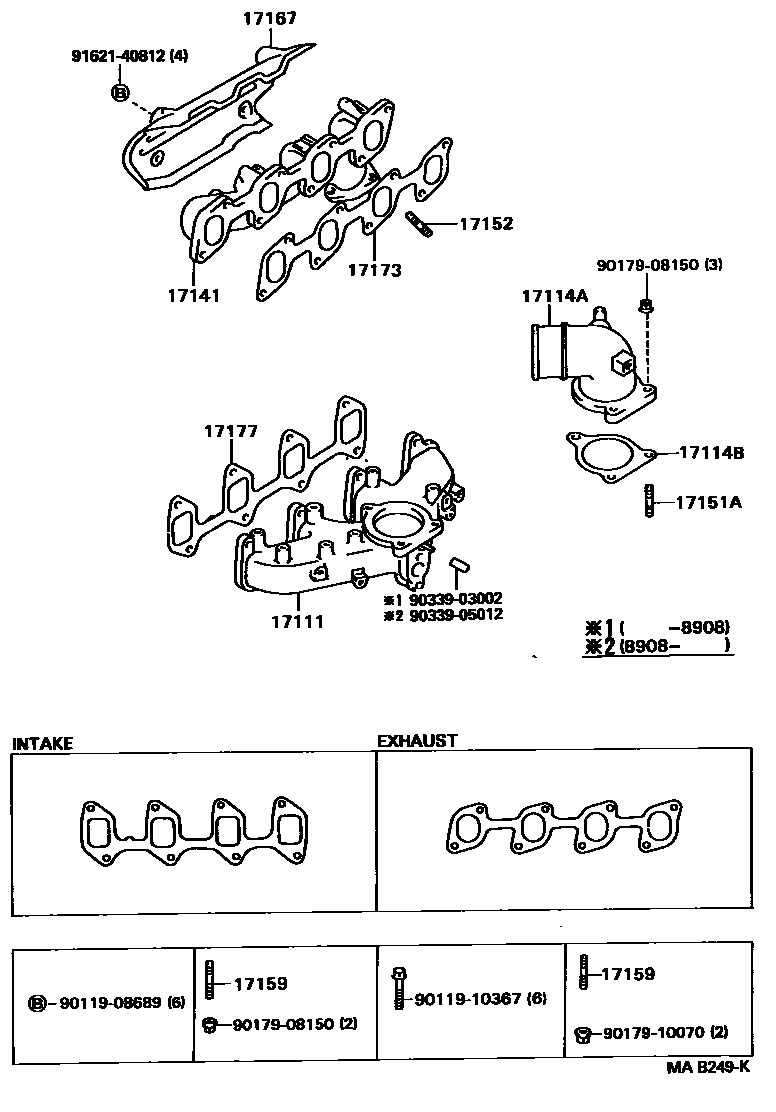

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17101-54100i2L..LN85..VWP198901-198902

sub17101-54101

sub90339-05018

sub90445-11017

sub90917-11033

sub96132-30600

main17101-54101i2L..LN85..VWP198902-199702

main17111-71010i2Y..YN85..VWP199003-199410

main17111-71020i2Y..YN85..VWP198901-199003

17114AFLANGE, INTAKE

main17114-54050i2L..LN85..VWP198901-199702

17114BGASKET, INTAKE FLANGE

main17116-54020i2L..LN85..VWP198901-198902

sub17116-54021

main17116-54021i2L..LN85..VWP198902-199702

sub17116-54030

17141MANIFOLD, EXHAUST

main17141-54110i2L..LN85..VWP198901-199602

main17141-54111i2L..LN85..VWP199602-199702

main17141-71020i2Y..YN85..VWP198901-199410

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92122-40835i2Y..YN85..VWP198901-199410

17151ABOLT, STUD(FOR MANIFOLD TO VENTURI)

main90116-08293i2L..LN85..VWP198901-199702

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i2Y..YN85..VWP198901-198909

main90116-10088i2L..LN85..VWP198901-199702

main90116-10146i2Y..YN85..VWP199001-199410

main90116-10148i2Y..YN85..VWP198909-199001

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i2L..LN85..VWP198901-199702

INTAKE SIDE

main90116-10063i2Y..YN85..VWP198901-199410

main90116-10141i2L..LN85..VWP198901-199702

EXHAUST SIDE

main92132-60820i2L..LN85..VWP199204-199301

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54090i2L..LN85..VWP198901-199508

main17167-54120i2L..LN85..VWP199508-199702

main17167-71020i2Y..YN85..VWP198901-199410

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i2L..LN85..VWP198901-199702

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54020i2L..LN85..VWP198901-199507

sub17177-54021

main17177-54021i2L..LN85..VWP199507-199702

9011908689

main90119-08689

9011910367

main90119-10367

9017908150

main90179-08150

9017910070

main90179-10070

9033903002

main90339-03002

9033905012

main90339-05012

9162140812

main91621-40812

18 parts on this diagram · 2 diagrams in section
