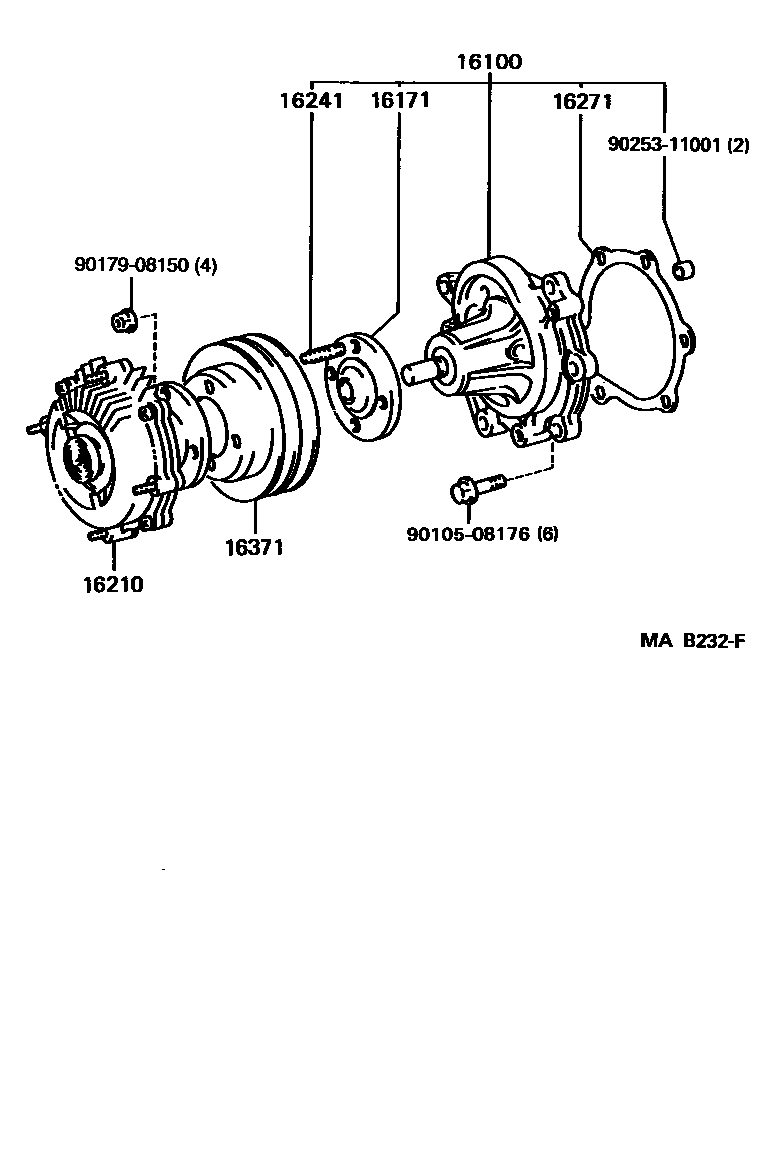

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59155i2L..LN85..VWP198901-199701

sub16100-59255

main16100-59255i2L..LN85..VWP199701-199702

sub16100-59256

main16100-79036i2Y..YN85..VWP198901-199410

sub16100-79037

16171SEAT, WATER PUMP PULLEY

main16171-41170i2L..LN85..VWP198901-199701

main16171-75020i2L..LN85..VWP199701-199702

16210COUPLING ASSY, FLUID

main16210-31010i2Y..YN85..VWP198901-199410

main16210-54140i2L..LN85..VWP198901-199303

sub16210-54141

main16210-54141i2L..LN85..VWP199303-199702

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-71010i2Y..YN85..VWP198901-199410

main92122-40816i2L..LN85..VWP198901-199605

main92122-60818i2L..LN85..VWP199605-199702

16271GASKET, WATER PUMP

main16271-54020i2L..LN85..VWP198901-199702

sub16271-54030

16371PULLEY, FAN

main16371-54030i2L..LN85..VWP198901-199702

main16371-71010i2Y..YN85..VWP198901-199410

sub16371-71021

9010508176

main90105-08176

9017908150

main90179-08150

9025311001

main90253-11001

9 parts on this diagram · 2 diagrams in section
