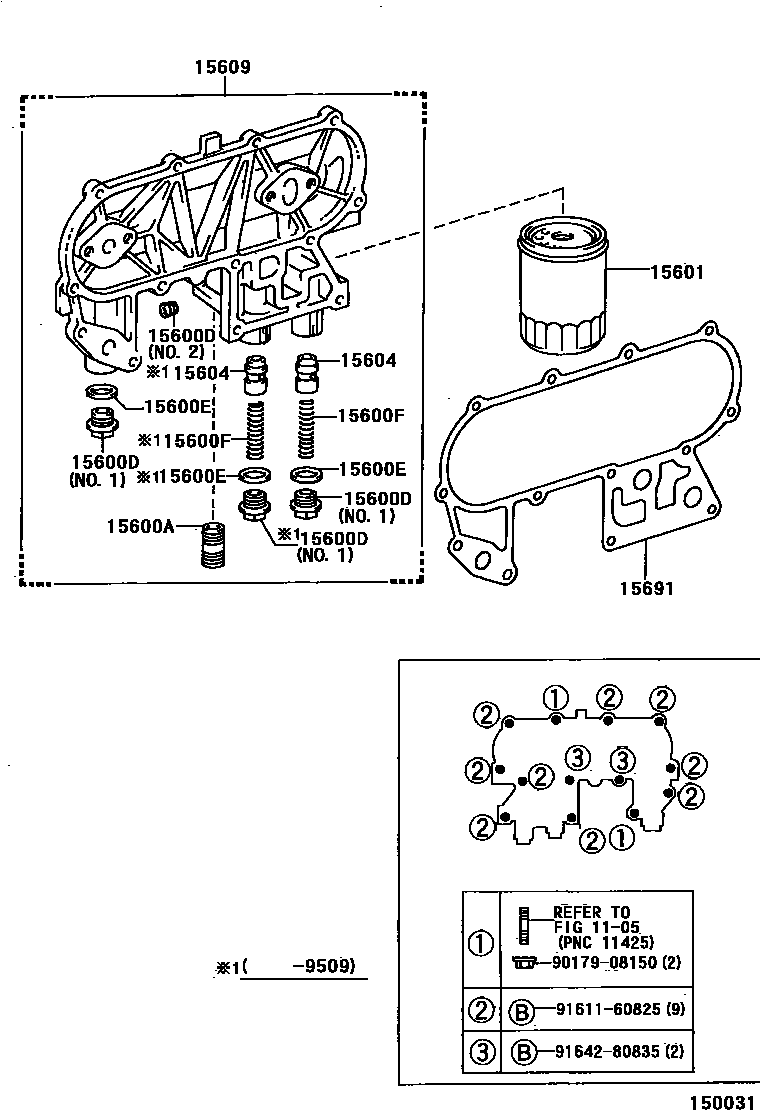

OIL FILTER

0001 1 0002 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54020i2L..LN85..VWP198901-199106

sub15116-54021

main15116-54021i2L..LN85..VWP199106-199702

15600DPLUG(FOR OIL FILTER)

main90072-34402i2L..LN85..VWP198901-199206

NO.2

sub90344-51005

main90341-18015i2L..LN85..VWP198901-199702

NO.1

main90344-51005i2L..LN85..VWP199206-199702

NO.2

15600EWASHER(FOR OIL FILTER)

main90430-18001i2L..LN85..VWP198907-199112

main90430-18011i2L..LN85..VWP198901-198907

sub90430-18001

main90430-18021i2L..LN85..VWP199112-199310

main90430-18029i2L..LN85..VWP199310-199702

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026i2L..LN85..VWP198901-199702

15601FILTER SUB-ASSY, OIL

main15601-33021i2Y..YN85..VWP198901-199308

main90915-03006i2L..LN85..VWP198901-199106

sub90915-30002

main90915-10002i2Y..YN85..VWP199308-199410

sub90915-10004

main90915-30002i2L..LN85..VWP199106-199702

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010i2L..LN85..VWP198901-199702

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54071i2L..LN85..VWP198901-199509

main15609-54072i2L..LN85..VWP199509-199702

main15609-71011i2Y..YN85..VWP198901-199308

main15671-73020i2Y..YN85..VWP199308-199410

15691GASKET, OIL FILTER

main15691-71010i2Y..YN85..VWP198901-198912

sub15691-71011

main15691-71011i2Y..YN85..VWP198912-199410

main15692-54030i2L..LN85..VWP198901-199702

sub15692-54050

9017908150

main90179-08150

9161160825

main91611-60825

9164280835

main91642-80835

12 parts on this diagram · 2 diagrams in section
