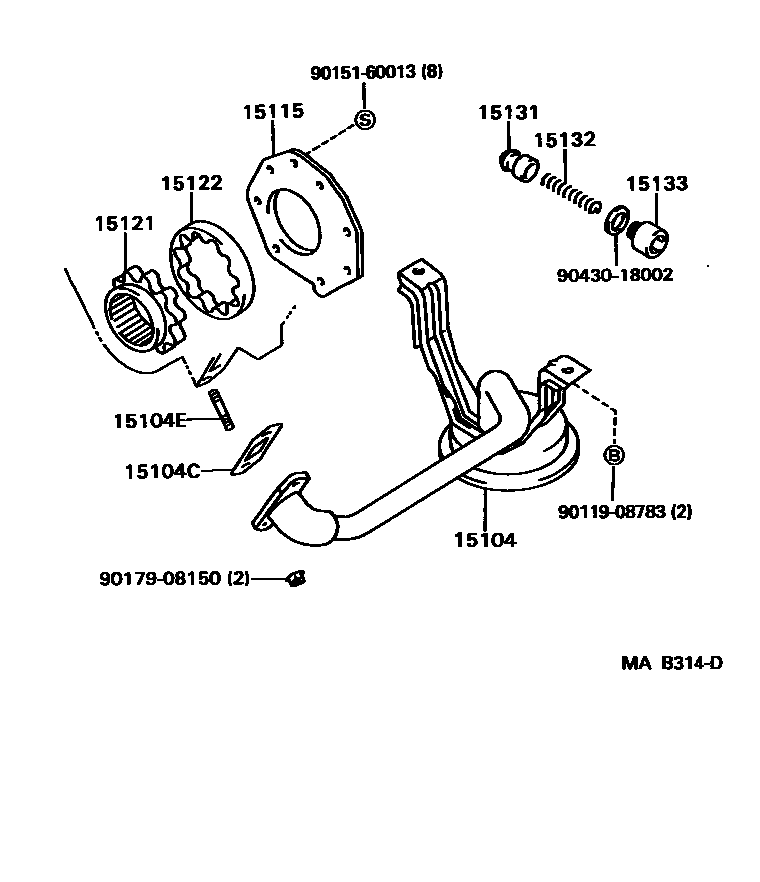

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-54044i2L..LN85..VWP198901-198908

main15104-54180i2L..LN85..VWP198908-199105

sub15104-54181

main15104-54181i2L..LN85..VWP199105-199702

sub15104-54220

main15104-71010i2Y..YN85..VWP198901-199410

15104CGASKET(FOR OIL STRAINER)

main15149-54012i2L..LN85..VWP198901-199702

sub15149-54030

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816i2L..LN85..VWP198901-199702

15115COVER, OIL PUMP

main15115-54020i2L..LN85..VWP198901-198912

sub15115-54021

main15115-54021i2L..LN85..VWP198912-199505

main15115-54022i2L..LN85..VWP199505-199702

main15115-71015i2Y..YN85..VWP198901-199410

15121GEAR, OIL PUMP DRIVE

main15121-54020i2L..LN85..VWP198901-199702

15122GEAR, OIL PUMP DRIVEN

main15122-54020i2L..LN85..VWP198901-199702

15131VALVE, OIL PUMP RELIEF

main15131-24010i2Y..YN85..VWP198901-199410

main15131-54010i2L..LN85..VWP198901-199702

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i2Y..YN85..VWP198901-199410

main15132-54010i2L..LN85..VWP198901-199702

15133PLUG, OIL PUMP RELIEF VALVE

main15133-24010i2Y..YN85..VWP198901-199410

main15133-54010i2L..LN85..VWP198901-199702

9011908783

main90119-08783

9015160013

main90151-60013

9017908150

main90179-08150

9043018002

main90430-18002

13 parts on this diagram · 2 diagrams in section
