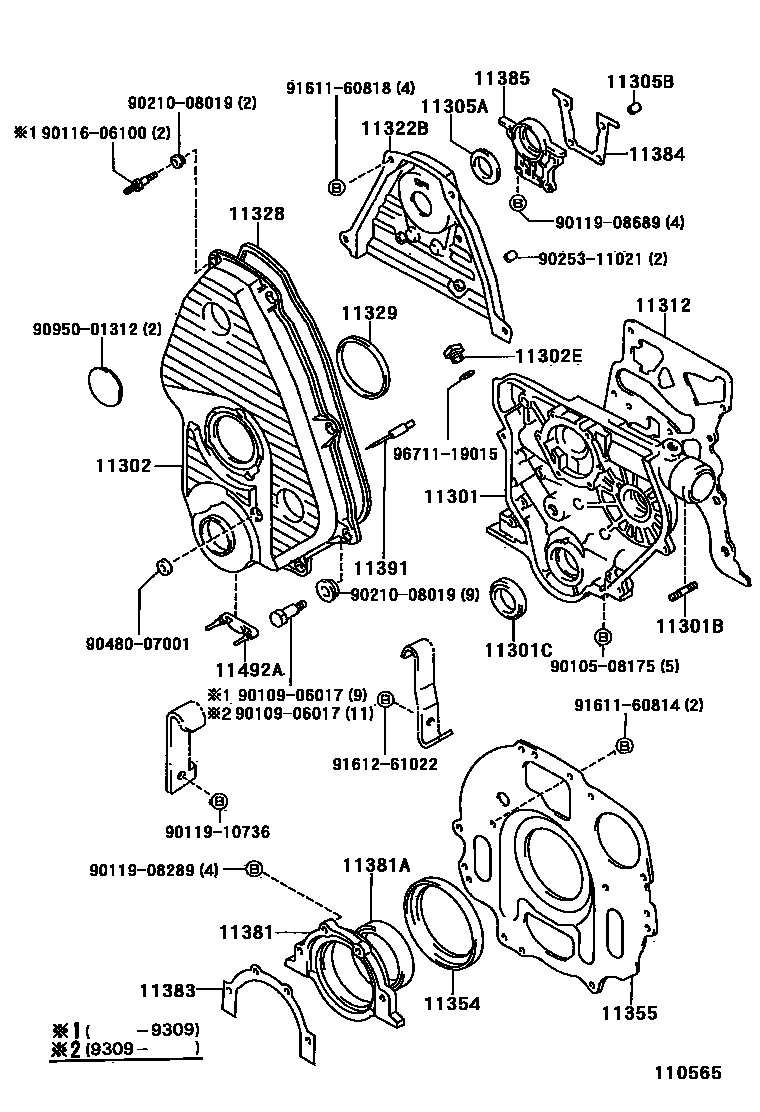

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i2Y..YN85..VWP198901-199410

main11311-54050i2L..LN85..VWP198901-199108

main11311-54051i2L..LN85..VWP199108-199505

sub15115-54022

main11311-54052i2L..LN85..VWP199505-199702

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2i2L..LN85..VWP198901-199702

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42012i2L..LN85..VWP198901-199102

main90311-42026i2L..LN85..VWP199102-199401

main90311-42030i2L..LN85..VWP199401-199605

main90311-42031i2L..LN85..VWP199605-199702

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54020i2L..LN85..VWP198901-199702

sub11321-54021

main11321-71010i2Y..YN85..VWP198901-199410

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2L..LN85..VWP198901-199702

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32001i2L..LN85..VWP198901-199102

sub90311-32018

main90311-32017i2L..LN85..VWP199102-199702

sub90311-32020

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main16159-71010×2i2Y..YN85..VWP198901-199410

main90253-11021×2i2L..LN85..VWP198901-199702

11312GASKET, FRONT END PLATE

main11312-54021i2L..LN85..VWP198901-199702

11322BCOVER, TIMING BELT, NO.2

main11322-54020i2L..LN85..VWP198901-199702

sub11322-54021

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54020i2L..LN85..VWP198901-198902

main11328-54021i2L..LN85..VWP198902-199702

main11328-71011i2Y..YN85..VWP198901-198912

main11328-71012i2Y..YN85..VWP198912-199410

11329GASKET, TIMING GEAR REAR COVER

main11329-54020i2L..LN85..VWP198901-198902

main11329-54021i2L..LN85..VWP198902-199702

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L..LN85..VWP198901-199702

main11354-71010i2Y..YN85..VWP198901-199410

11355PLATE, REAR END

main11355-54030i2L..LN85..VWP198901-199702

main11355-71010i2Y..YN85..VWP198901-199410

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i2L..LN85..VWP198901-199702

sub11381-54030

sub90116-08404

main11381-71010i2Y..YN85..VWP198901-199410

11381ASEAL, ENGINE REAR OIL

main90311-80003i2Y..YN85..VWP198901-199004

main90311-80009i2Y..YN85..VWP199004-199410

sub90311-80014

main90311-85004i2L..LN85..VWP198901-199102

main90311-85006i2L..LN85..VWP199102-199209

sub90311-85009

main90311-85007i2L..LN85..VWP199209-199702

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2Y..YN85..VWP198901-198912

main11383-54020i2L..LN85..VWP198901-199107

main11383-54030i2L..LN85..VWP199107-199702

main11383-71010i2Y..YN85..VWP198912-199410

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54020i2L..LN85..VWP198901-199107

main11384-54030i2L..LN85..VWP199107-199702

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2L..LN85..VWP198901-199702

11391POINTER, TIMING

main11391-54020i2L..LN85..VWP198901-199702

11492APLATE, WATER SEAL

main11492-54010i2L..LN85..VWP198901-198904

9010508175

main90105-08175

9010906017

main90109-06017

9011606100

main90116-06100

9011908289

main90119-08289

9011908689

main90119-08689

9011910736

main90119-10736

9021008019

main90210-08019

9025311021

main90253-11021

9048007001

main90480-07001

9095001312

main90950-01312

9161160814

main91611-60814

9161160818

main91611-60818

9161261022

main91612-61022

9671119015

main96711-19015

34 parts on this diagram · 2 diagrams in section
