E
EPC Data

SEAT BELT

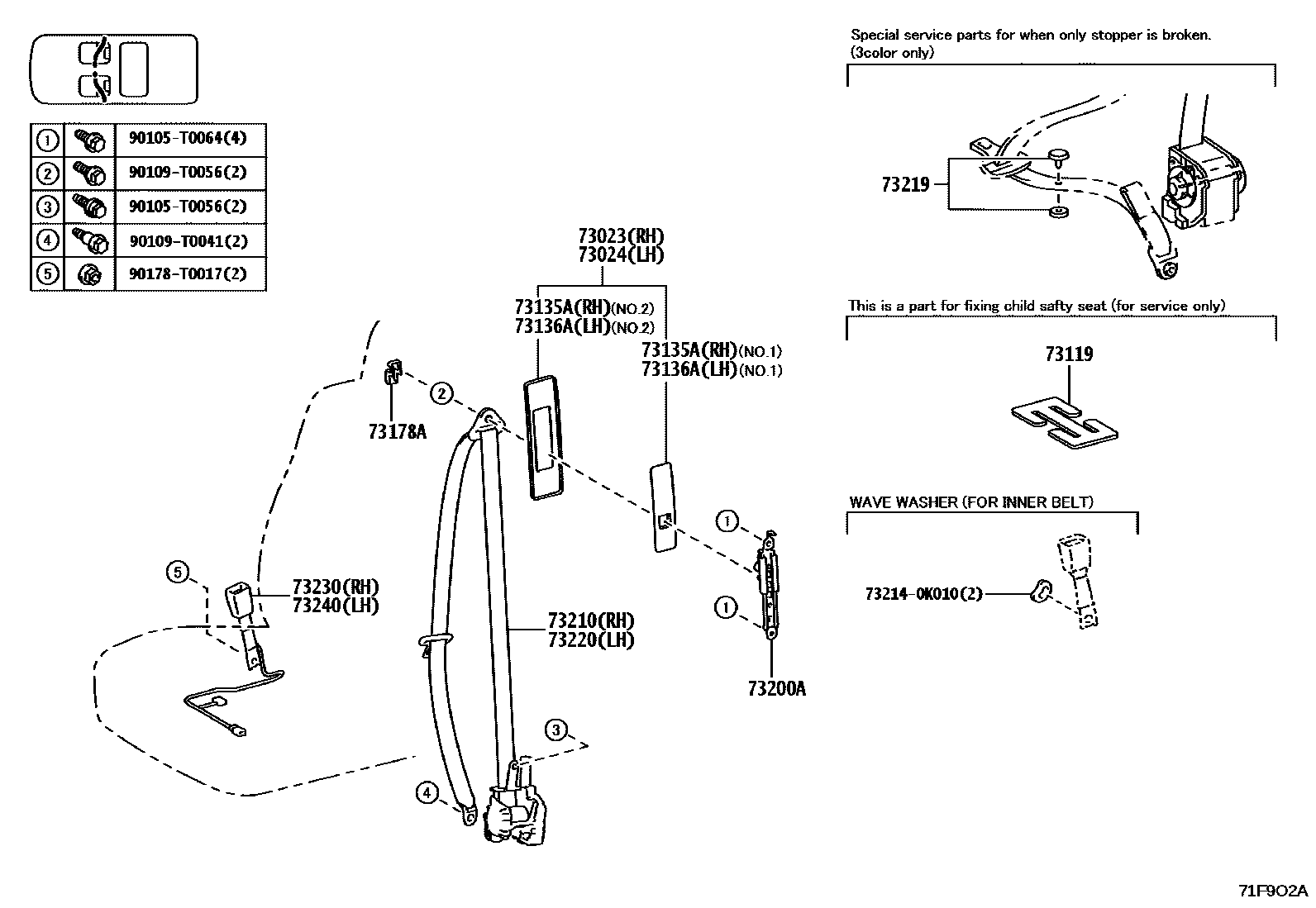

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-KK010-B0i202408
LT.GRAY,TRIM20
main73023-KK010-B0i202408
LT.GRAY,TRIM2#
main73023-KK010-C0i202408
BLACK,TRIM21
main73023-KK010-C0i202408
BLACK,TRIM21,25
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73023-KK010-B0i202408
LT.GRAY,TRIM2#
main73023-KK010-B0i202408
LT.GRAY,TRIM20
main73023-KK010-C0i202408
BLACK,TRIM21,25
main73023-KK010-C0i202408
BLACK,TRIM21
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i202408
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-KK010-B0i202408
LT.GRAY,TRIM2#,NO.1:REFER ILLUST.
main73135-KK010-B0i202408
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
main73135-KK010-C0i202408
BLACK,TRIM21,25,NO.1:REFER ILLUST.
main73135-KK010-C0i202408
BLACK,TRIM21,NO.1:REFER ILLUST.
main73135-KK020-B0i202408
LT.GRAY,TRIM20,NO.2:REFER ILLUST.
main73135-KK020-B0i202408
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
main73135-KK020-C0i202408
BLACK,TRIM21,NO.2:REFER ILLUST.
main73135-KK020-C0i202408
BLACK,TRIM21,25,NO.2:REFER ILLUST.
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73135-KK010-B0i202408
LT.GRAY,TRIM2#,NO.1:REFER ILLUST.
main73135-KK010-B0i202408
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
main73135-KK010-C0i202408
BLACK,TRIM21,25,NO.1:REFER ILLUST.
main73135-KK010-C0i202408
BLACK,TRIM21,NO.1:REFER ILLUST.
main73135-KK020-B0i202408
LT.GRAY,TRIM20,NO.2:REFER ILLUST.
main73135-KK020-B0i202408
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
main73135-KK020-C0i202408
BLACK,TRIM21,NO.2:REFER ILLUST.
main73135-KK020-C0i202408
BLACK,TRIM21,25,NO.2:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
main73178-KK010-B0i202408
LT.GRAY,TRIM2#
main73178-KK010-B0i202408
LT.GRAY,TRIM20
main73178-KK010-C0i202408
BLACK,TRIM21
main73178-KK010-C0i202408
BLACK,TRIM21,25
main73178-KK020-B0i202411
LT.GRAY,TRIM20
main73178-KK020-B0i202411
LT.GRAY,TRIM2#
main73178-KK020-C0i202411
BLACK,TRIM21
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-0D051-B2i202408
LT.GRAY,TRIM2#
main73200-0D051-B2i202408
LT.GRAY,TRIM20
main73200-0D051-C0i202408
BLACK,TRIM21,25
main73200-0D051-C0i202408
BLACK,TRIM21
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0K821-C0i202411
BLACK,TRIM20
main73210-0K821-C0i202411
BLACK,TRIM2#
main73210-0K821-C1i202411
BLACK,TRIM21
main73210-0K840-C0i202408
BLACK/GRAY,TRIM20
main73210-0K840-C0i202408
BLACK/GRAY,TRIM2#
main73210-0K840-C1i202408
BLACK/BLACK,TRIM21
main73210-0K840-D0i202408
RED/BLACK,TRIM25
main73210-0K861-C0i202411
BLACK/GRAY,TRIM20
main73210-0K861-C0i202411
BLACK/GRAY,TRIM2#
main73210-0K861-C1i202411
BLACK/BLACK,TRIM21
main73210-0K861-D0i202411
BLACK/RED,TRIM25
73219STOPPER, TONGUE PLATE
main73219-33010i202408
BLACK
main73219-33020i202408
GRAY
main73219-33030i202408
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0K531-C0i202411
BLACK,TRIM2#
main73220-0K531-C0i202411
BLACK,TRIM20
main73220-0K531-C1i202411
BLACK,TRIM21
main73220-0K550-C0i202408
BLACK/GRAY,TRIM2#
main73220-0K550-C0i202408
BLACK/GRAY,TRIM20
main73220-0K550-C1i202408
BLACK/BLACK,TRIM21
main73220-0K550-D0i202408
RED/BLACK,TRIM25
main73220-0K571-C0i202411
BLACK/GRAY,TRIM2#
main73220-0K571-C0i202411
BLACK/GRAY,TRIM20
main73220-0K571-C1i202411
BLACK/BLACK,TRIM21
main73220-0K571-D0i202411
BLACK/RED,TRIM25
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0KB50-C0i202411
BLACK,TRIM2#
main73230-0KC30-C0i202411
BLACK,TRIM2#
main73230-0KC40-C0i202411
BLACK,TRIM2#
main73230-0KC40-C0i202411
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KC40-C0i202411
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KC40-C0i202411
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KF20-C0i202408-202411
UKRAINE SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main73230-0KF20-C0i202408-202411
UKRAINE SPEC (EURO 6 REGULATION)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
main73230-0KF20-C0i202408-202411
UKRAINE SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main73230-0KF20-C0i202408-202411
UKRAINE SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
main73230-0KF20-C0i202408-202411
UKRAINE SPEC (EURO 6 REGULATION)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main73230-0KF20-C0i202408
BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&AUDIO-*DA(ENTRY MODEL),BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-*DA(ENTRY MODEL),BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL),BLACK,TRIM2#
main73230-0KJ60-C0i202408
TURKEY SPEC (EURO 6 REGULATION),BLACK,TRIM2#
main73230-0KJ60-C0i202408
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURALLEATHER,BLACK,TRIM2#
main73230-0KJ60-C0i202408
TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KJ60-C0i202408
TURKEY SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KJ60-C0i202408
BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION),BLACK,TRIM2#
main73230-0KJ60-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURALLEATHER,BLACK,TRIM2#
main73230-0KJ60-C0i202411
UKRAINE SPEC (EURO 6 REGULATION),BLACK,TRIM2#
main73230-0KJ60-C0i202411
UKRAINE SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURALLEATHER,BLACK,TRIM2#
main73230-0KJ60-C0i202411
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KJ60-C0i202411
UKRAINE SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-0K880-C0i202411
BLACK,TRIM2#
main73230-0KA10-C0i202411
BLACK,TRIM2#
main73230-0KA20-C0i202408-202411
UKRAINE SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main73230-0KA20-C0i202408-202411
UKRAINE SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
main73230-0KA20-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURALLEATHER,BLACK,TRIM2#
main73230-0KA20-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KA20-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KA20-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KA20-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KA20-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-*DA(ENTRY MODEL),BLACK,TRIM2#
main73230-0KA20-C0i202408
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURALLEATHER,BLACK,TRIM2#
main73230-0KA20-C0i202408
TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KA20-C0i202408
TURKEY SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KA20-C0i202408
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KA20-C0i202408
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KA20-C0i202408
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KA20-C0i202411
UKRAINE SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURALLEATHER,BLACK,TRIM2#
main73230-0KA20-C0i202411
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KA20-C0i202411
UKRAINE SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KA40-C0i202411
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KA40-C0i202411
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KA40-C0i202411
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KB50-C0i202411
BLACK,TRIM2#
main73230-0KG90-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KG90-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM2#
main73230-0KG90-C0i202408
ISRAEL SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&AUDIO-*DA(ENTRY MODEL),BLACK,TRIM2#
main73230-0KG90-C0i202408
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main73230-0KG90-C0i202408-202411
UKRAINE SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main73230-0KJ10-C0i202408
BLACK,TRIM2#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
90105T0056
main90105-T0056
90105T0064
main90105-T0064
90109T0041
main90109-T0041
90109T0056
main90109-T0056
90178T0017
main90178-T0017

18 parts on this diagram · 5 diagrams in section
