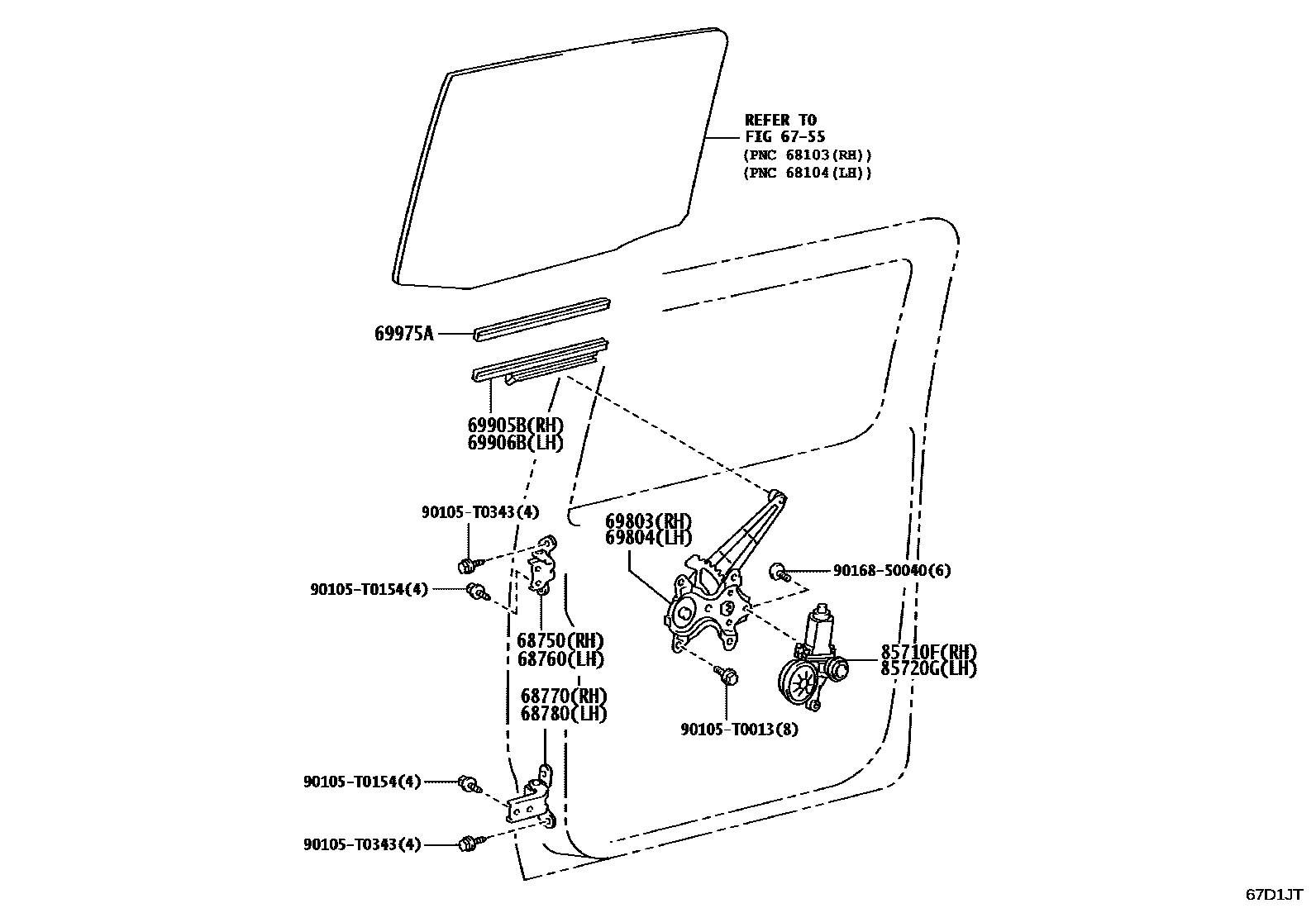

REAR DOOR WINDOW REGULATOR & HINGE
6755
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
TURKEY SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH
ISRAEL SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
TURKEY SPEC (EURO 6 REGULATION)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
90105T0013
90105T0154
main90105-T0154
90105T0343
main90105-T0343
9016850040
16 parts on this diagram · 2 diagrams in section
