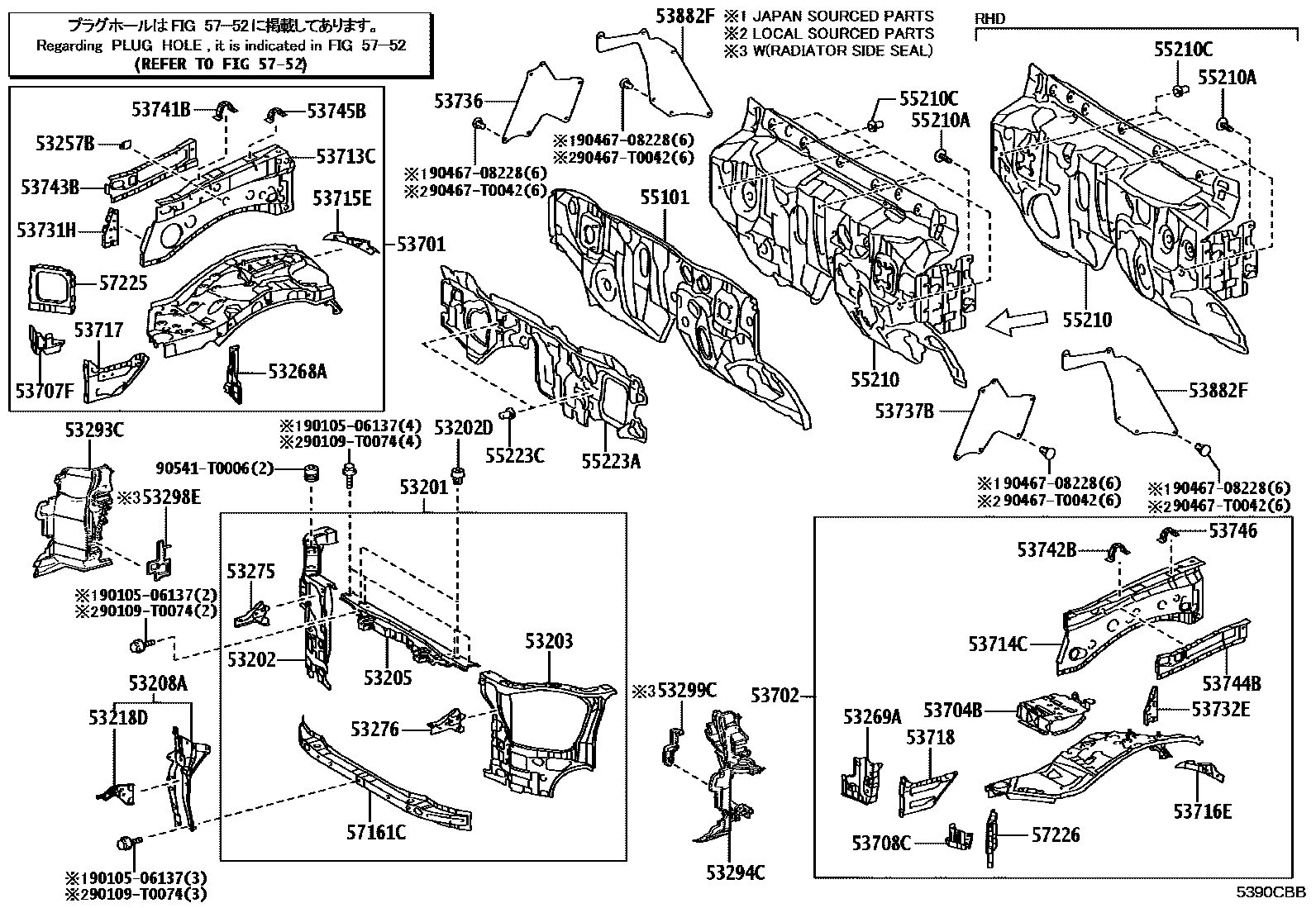

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL)
53202SUPPORT SUB-ASSY, RADIATOR, RH
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL)
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
UKRAINE SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL)
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL)
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53218DEXTENSION, HOOD LOCK BRACE
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL)
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH
53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH
53293CDEFLECTOR, RADIATOR SIDE, RH
TURKEY SPEC (EURO 6 REGULATION)&MLM Z-PLUS PACKAGE&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)
MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
53294CDEFLECTOR, RADIATOR SIDE, LH
TURKEY SPEC (EURO 6 REGULATION)&MLM Z-PLUS PACKAGE&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PA
MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
53298ESEAL, RADIATOR SIDE, RH
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
53299CSEAL, RADIATOR SIDE, LH
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53704BSUPPORT SUB-ASSY, BATTERY, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
EXC PLANT TMMIN,TSAM
PLANT TMMIN,TSAM
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731HPATCH, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53736SEAL, FRONT FENDER APRON, RH
TYPE B:REFER ILLUST.
53737BSEAL, FRONT FENDER APRON, LH
TYPE B:REFER ILLUST.
53741BPLATE, FENDER APRON REINFORCE, RH
53742BPLATE, FENDER APRON REINFORCE, LH
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53882FSEAL, FRONT FENDER
TYPE B:REFER ILLUST.
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
IVORY
55210CCLIP
55223AINSULATOR, DASH PANEL, OUTER
55223CCLIP
57161CMEMBER, FRONT CROSS
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
5752
9010506137
main90105-06137
90109T0074
main90109-T0074
9046708228
main90467-08228
90467T0042
main90467-T0042
90541T0006
main90541-T0006
53 parts on this diagram · 1 diagram in section
