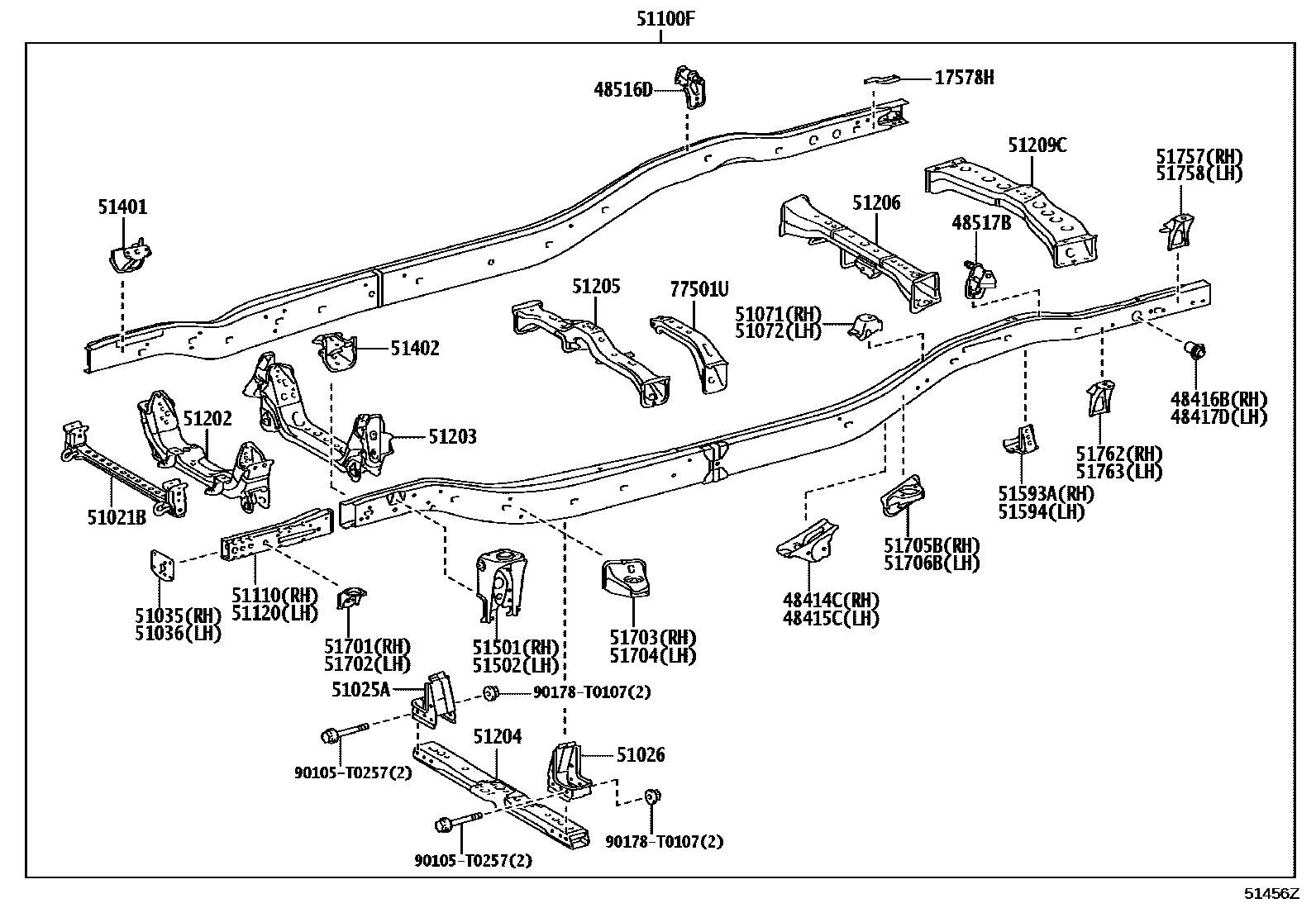

FRAME
17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10
48414CBRACKET, SPRING, NO.3 RH
48415CBRACKET, SPRING, NO.3 LH
48416BBRACKET, SPRING, NO.4 RH
48417DBRACKET, SPRING, NO.4 LH
48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51100FFRAME SUB-ASSY
51110EXTENSION ASSY, SIDE RAIL, RH
51120EXTENSION ASSY, SIDE RAIL, LH
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
EXCEPT PLANT TSAM
PLANT TSAM
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51593ABRACKET, REAR SPRING BUMPER, RH
51594BRACKET, REAR SPRING BUMPER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51757BRACKET, BODY SUPPORT, NO.4 RH
51758BRACKET, BODY SUPPORT, NO.4 LH
51762BRACKET, BODY SUPPORT, NO.5 RH
51763BRACKET, BODY SUPPORT, NO.5 LH
77501UBRACKET SUB-ASSY, FUEL TANK
90105T0257
90178T0107
main90178-T0107
42 parts on this diagram · 5 diagrams in section
