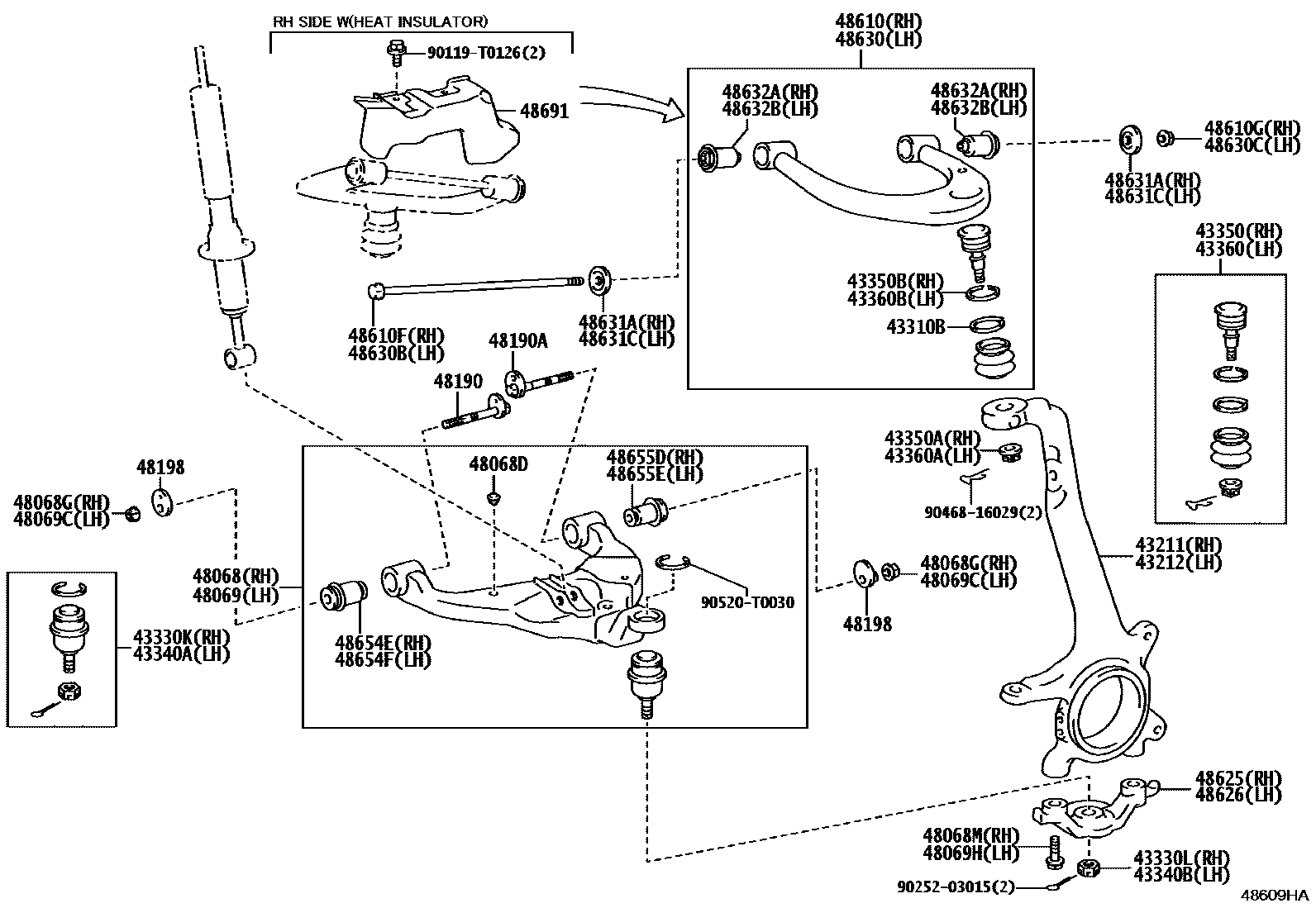

FRONT AXLE ARM & STEERING KNUCKLE

0001 1EXCEPT WIDE TREAD 0002 1WIDE TREAD

43211KNUCKLE, STEERING, RH

main43211-KK010iGUN12#,135202408

43212KNUCKLE, STEERING, LH

main43212-KK010iGUN12#,135202408

43310BRING, SET (FOR DUST COVER)

main90580-10001×2iGUN12#,135202408

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09510iGUN12#,135202408

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iGUN12#,135202408

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09510iGUN12#,135202408

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iGUN12#,135202408

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09017iGUN12#,135202408

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iGUN12#,135202408

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iGUN12#,135202408

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09017iGUN12#,135202408

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iGUN12#,135202408

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iGUN12#,135202408

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K090iGUN12#,135202408

main48068-0K130iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-T1018×2iGUN12#,135202408

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073×2iGUN12#,135202408

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-T0305×2iGUN12#,135202408

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K090iGUN12#,135202408

main48069-0K130iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073×2iGUN12#,135202408

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-T0305×2iGUN12#,135202408

48190CAM ASSY, CAMBER ADJUST

main48190-0K040×2iGUN12#,135202408

48190ACAM ASSY, CAMBER ADJUST, NO.2

main48190-0K050×2iGUN12#,135202408

48198CAM, CAMBER ADJUST, NO.2

main48198-0K030×4iGUN12#,135202408

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K040iGUN12#,135202408

main48610-0K120iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iGUN12#,135202408

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iGUN12#,135202408

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-KK010iGUN12#,135..SAP202411

main48625-KK040iGUN12#,135..THP202408

main48625-KK030iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-KK010iGUN12#,135..SAP202411

main48626-KK040iGUN12#,135..THP202408

main48626-KK030iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K040iGUN12#,135202408

main48630-0K120iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iGUN12#,135202408

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iGUN12#,135202408

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-T2007×2iGUN12#,135202408

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-T2007×2iGUN12#,135202408

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K040×2iGUN12#,135202408

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K040×2iGUN12#,135202408

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K080iGUN12#,135202408

main48654-0K160iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K080iGUN12#,135202408

main48654-0K160iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K080iGUN12#,135202408

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K080iGUN12#,135202408

48691INSULATOR, UPPER ARM BUSH, HEAT

main44447-KK010iGUN126..MHV202411

main48691-KK010iGUN12#,135..DCRL202408

90119T0126

main90119-T0126

9025203015

main90252-03015

9046816029

main90468-16029

90520T0030

main90520-T0030

44 parts on this diagram · 2 diagrams in section
