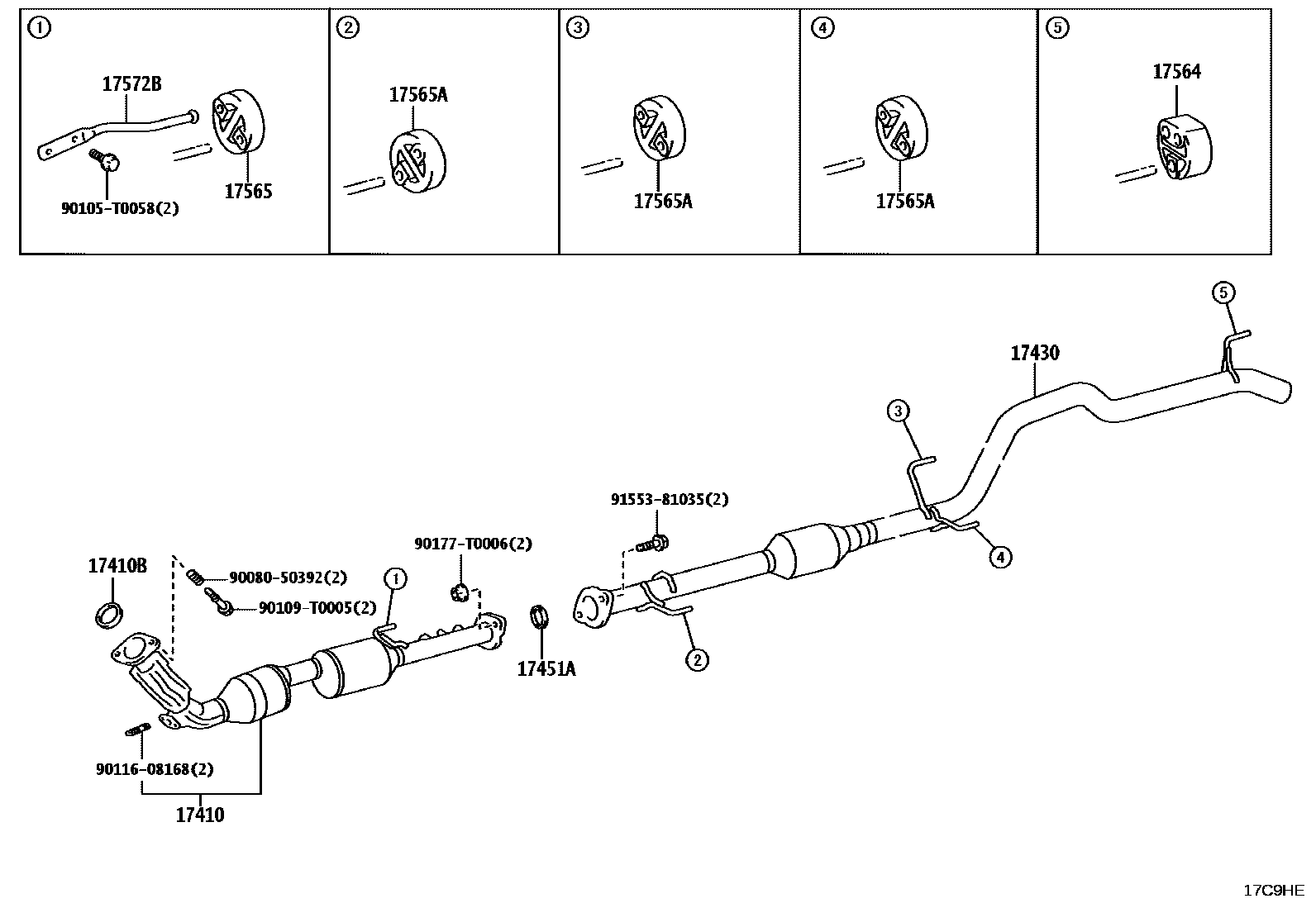

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=*102,ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ONBOARD DIAGNOSIS)
*114=TOYOTA/ZC3ZD6/Y
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
UKRAINE SPEC (EURO 6 REGULATION)
17451AGASKET, EXHAUST PIPE, NO.2
UKRAINE SPEC (EURO 6 REGULATION)
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
UKRAINE SPEC (EURO 6 REGULATION)
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
UKRAINE SPEC (EURO 6 REGULATION)
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
14 parts on this diagram · 2 diagrams in section
