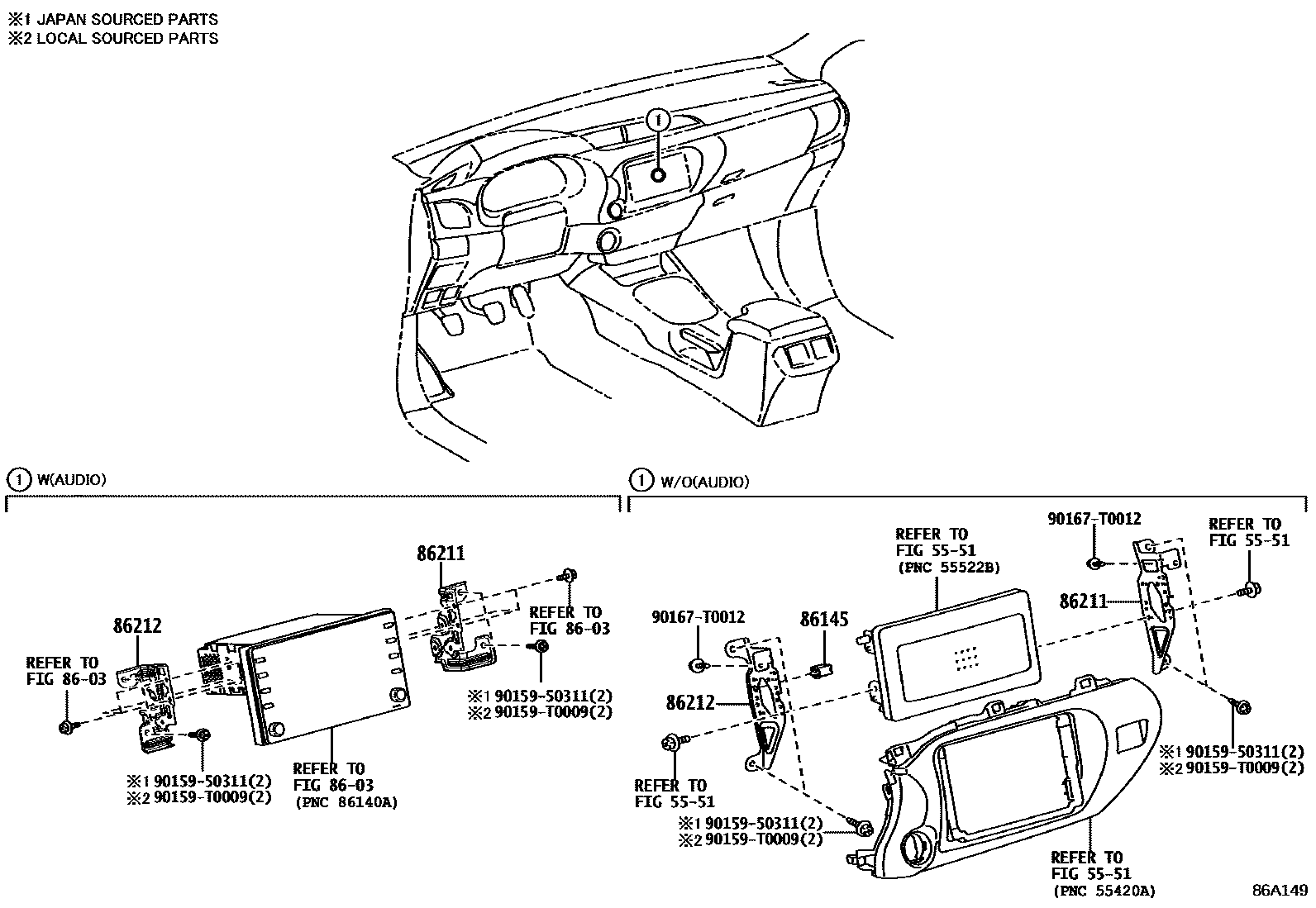

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RADIO RECEIVER 0002 1AMPLIFIER & JACK ADAPTER

5551

8603

86145CONNECTOR, ANTENNA MALE

main86145-52010iGUN126..S202308-202407

UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86145-52010iGUN125..THP..6F202308-202407

ISRAEL EURO6 FOR 12 E-PF&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86145-52010iGUN125..THP..6F202308-202407

TURKEY EURO6 FOR 12 E-PF&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86145-52010iGUN125..THP..S202308-202407

RUSSIA&CUSTOM UNION SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

86211BRACKET, RADIO, NO.1

main86211-KK050iGUN125..THP..S202308-202407

UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86211-KK050iGUN126..S202308-202407

RUSSIA&CUSTOM UNION SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86211-KK050iGUN126..S202308-202407

ISRAEL EURO6 FOR 12 E-PF&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86211-KK050iGUN126..S202308-202407

TURKEY EURO6 FOR 12 E-PF&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86211-KK100iGUN125,135..THP202308-202410

main86211-KK130iGUN126..THP..H202308-202407

TURKEY EURO6 FOR 12 E-PF

main86211-KK130iGUN126..THP..H202308-202407

AUDIO-*DA(8INCH) & *BT & DAB

main86211-KK130iGUN126..THP..H202308-202407

AUDIO-AVN(8INCH) & *BT & DAB

main86211-KK130iGUN125..THP..6F202308-202407

RUSSIA&CUSTOM UNION SPEC

main86211-KK130iGUN125..THP..6F202308-202407

UKRAINE SPEC (EURO 6 REGULATION)

main86211-KK130iGUN125..THP..6F202308-202407

ISRAEL EURO6 FOR 12 E-PF

86212BRACKET, RADIO, NO.2

main86212-KK050iGUN125..THP..S202308-202407

ISRAEL EURO6 FOR 12 E-PF&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86212-KK050iGUN126..S202308-202407

RUSSIA&CUSTOM UNION SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86212-KK050iGUN126..S202308-202407

UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86212-KK050iGUN126..S202308-202407

TURKEY EURO6 FOR 12 E-PF&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86212-KK100iGUN125,135..THP202308-202410

main86212-KK130iGUN126..THP..H202308-202407

ISRAEL EURO6 FOR 12 E-PF

main86212-KK130iGUN126..THP..H202308-202407

TURKEY EURO6 FOR 12 E-PF

main86212-KK130iGUN126..THP..H202308-202407

AUDIO-*DA(8INCH) & *BT & DAB

main86212-KK130iGUN126..THP..H202308-202407

AUDIO-AVN(8INCH) & *BT & DAB

main86212-KK130iGUN125..THP..6F202308-202407

RUSSIA&CUSTOM UNION SPEC

main86212-KK130iGUN125..THP..6F202308-202407

UKRAINE SPEC (EURO 6 REGULATION)

9015950311

main90159-50311

90159T0009

main90159-T0009

90167T0012

main90167-T0012

8 parts on this diagram · 2 diagrams in section
