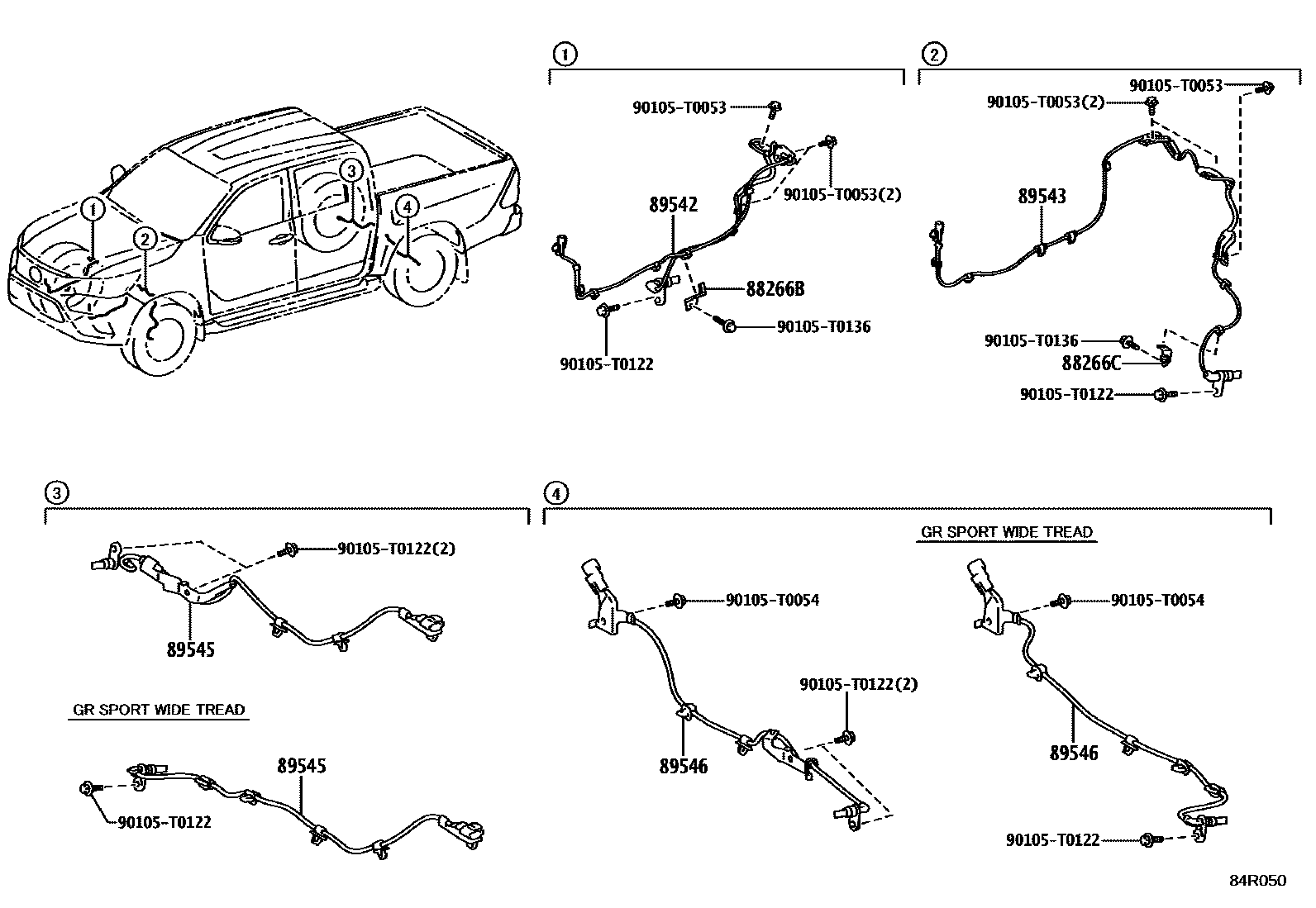

ABS & VSC

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iGUN12#,135..THP202308-202410

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K040iGUN12#,135..THP202308-202410

89542SENSOR, SPEED, FRONT RH

main89542-0K060iGUN12#,135..THP202308-202407

main89542-0K080iGUN125,135..SAP..6F202402-202410

89543SENSOR, SPEED, FRONT LH

main89543-0K061iGUN12#,135..THP202308-202407

main89543-0K081iGUN125,135..SAP..6F202402-202410

89545SENSOR, SPEED, REAR RH

main89545-0K240iGUN12#,135..THP202308-202407

main89545-0K290iGUN125,135..SAP..6F202402-202410

89546SENSOR, SPEED, REAR LH

main89546-0K240iGUN12#,135..THP202308-202407

main89546-0K290iGUN125,135..SAP..6F202402-202410

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

90105T0136

main90105-T0136

10 parts on this diagram · 1 diagram in section
