REAR LICENSE PLATE LAMP

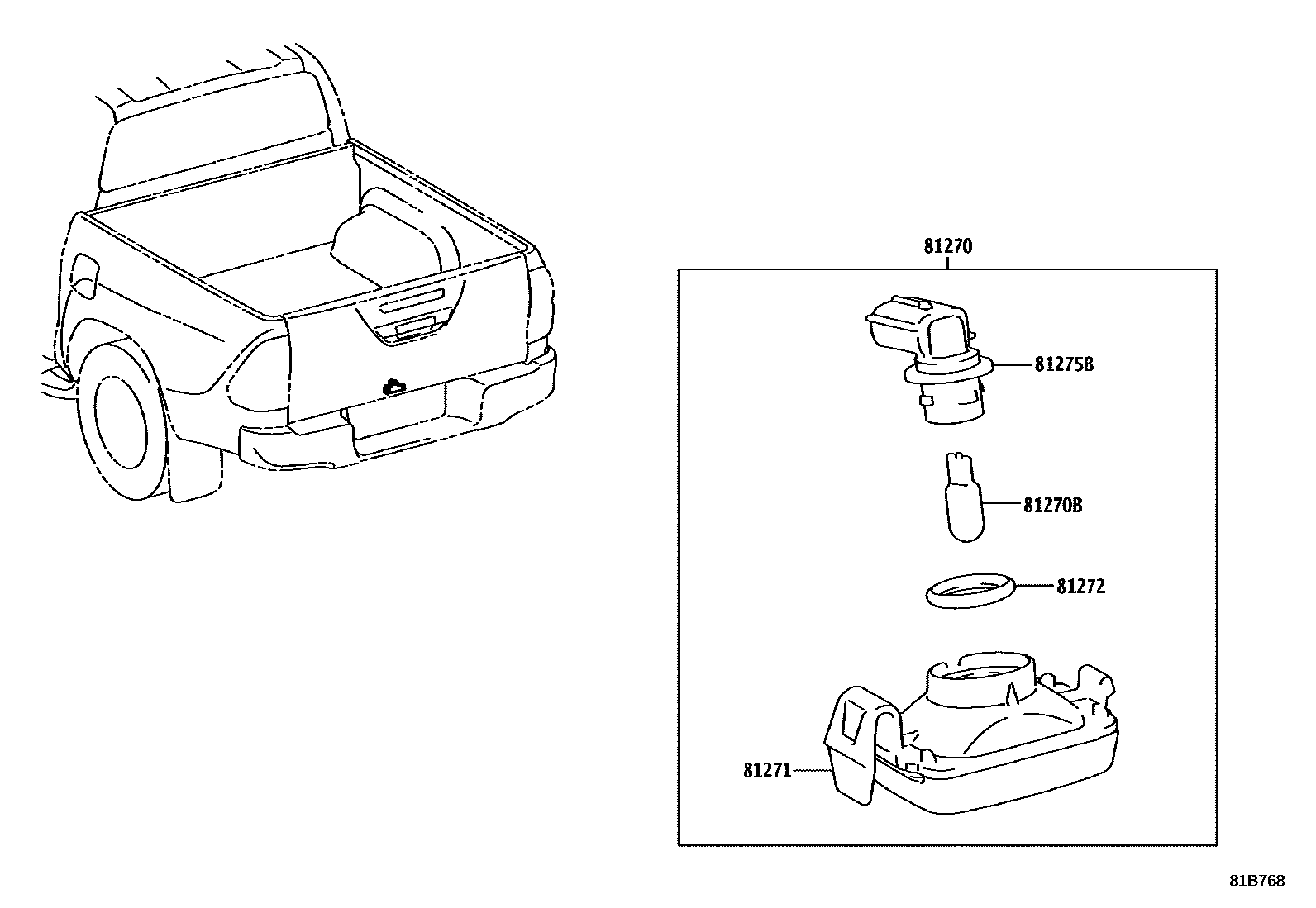

Parts diagram

81270LAMP ASSY, LICENSE PLATE

main81270-0K080i202308-202410

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-TB003i202308-202410

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0K080i202308-202410

81272GASKET, LICENSE PLATE LAMP LENS

main90069-38039i202308-202410

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90069-81108i202308-202410

5 parts on this diagram · 1 diagram in section
