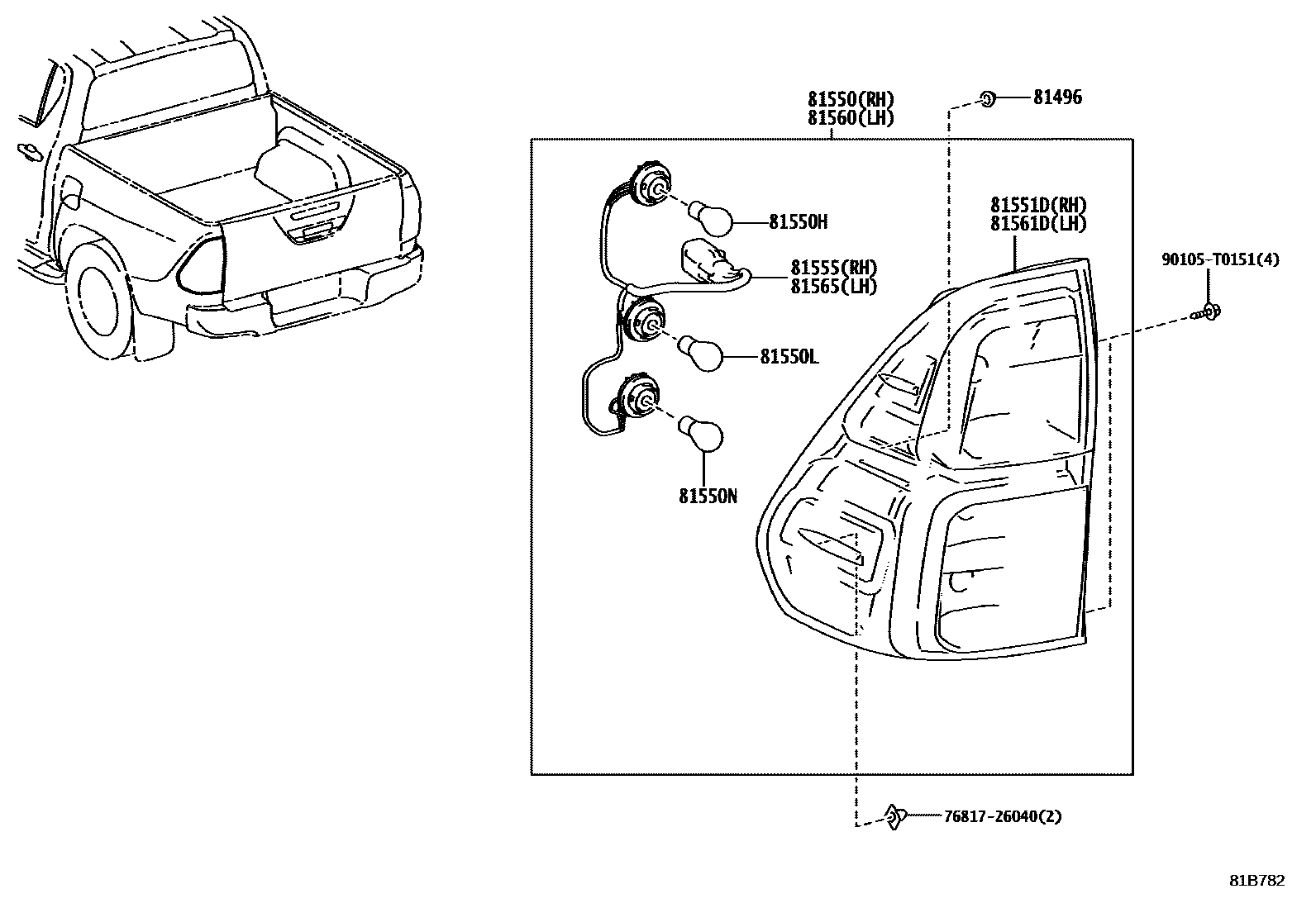

REAR COMBINATION LAMP

0001 1REAR TAIL & STOP LAMP = BULB 0002 1REAR TAIL & STOP LAMP = LED T0003 1

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iGUN12#,135..THP202308-202410

(L)

main81496-52020iGUN12#,135..THP¥70202308-202410

(J)

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K261iGUN126..S¥20,200202308-202402

main81550-0K281iGUN125,135..LHD..SCB..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81550-0K291iGUN125..RHD..(DCB,XTR)..6F..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81550-0K360iGUN125,135..IV3202402-202408

main81550-0K690iGUN126..S202308-202407

main81550-0K730iGUN126..LHD..SAP;GUN125,135..LHD..SAP..6FC202402-202410

main81550-0K750iGUN125..RHD..(DCB,XTR)..6F..CBU202402-202408

HEADLAMP-LED

main81550-0K750iGUN126..RHD;GUN125..RHD..6FC202402-202410

81550HBULB, TAIL & STOP LAMP

main90981-13094iGUN126..S¥400202308-202408

12V 21/5W

main90981-13094iGUN125,135..SCB..CBU¥400202308-202408

12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI

main90981-TD004iGUN125,135..IV3202402-202408

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028iGUN12#,135..THP¥350202308-202410

12V 21W,AMBER

main90981-TD003iGUN125,135..IV3202402-202408

12V 21W

81550NBULB, BACK UP LAMP

main90981-13093iGUN125,135..SCB..CBU¥160202308-202408

12V 21W

main90981-13093iGUN125,135..SCB..CBU¥160202308-202408

12V 21W,HEADLAMP-4-BULB HALOGEN MULTI

main90981-TD003iGUN125,135..IV3202402-202408

12V 21W

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K360iGUN125,135..IV3202402-202408

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K261iGUN126..S¥11,700202308-202402

main81551-0K281iGUN125,135..LHD..SCB..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81551-0K291iGUN125..RHD..SCB202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81551-0K690iGUN126..THP..H;GUN125,135..THP¥48,000202308-202407

main81551-0K730iGUN125,135..LHD..(DCB,XTR)..SAP..6F..CBU202402-202410

main81551-0K750iGUN125..RHD..(DCB,XTR)..6F..CBU202402-202408

HEADLAMP-LED

main81551-0K750iGUN126..RHD;GUN125..RHD..6FC202402-202410

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K260iGUN126..S¥1,540202308-202402

main81555-0K281iGUN125,135..LHD..SCB..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81555-0K291iGUN125..RHD..(DCB,XTR)..6F..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81555-0K430iGUN126..THP..H;GUN125,135..THP¥1,940202308-202407

main81555-0K480iGUN125,135..LHD..(DCB,XTR)..SAP..6F..CBU202402-202410

main81555-0K500iGUN125..RHD..SCB202402-202408

HEADLAMP-LED

main81555-0K500iGUN126..RHD;GUN125..RHD..6FC202402-202410

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K271iGUN126..S202308-202402

main81560-0K281iGUN125..RHD..(DCB,XTR)..6F..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81560-0K291iGUN125,135..LHD..SCB..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81560-0K400iGUN125,135..IV3202402-202408

main81560-0K700iGUN126..THP..H;GUN125,135..THP202308-202407

main81560-0K730iGUN126..RHD;GUN125..RHD..6FC202402-202410

main81560-0K730iGUN125..RHD..SCB202402-202408

HEADLAMP-LED

main81560-0K740iGUN126..LHD..SAP;GUN125,135..LHD..SAP..6FC202402-202410

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K400iGUN125,135..IV3202402-202408

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K271iGUN126..S202308-202402

main81561-0K281iGUN125..RHD..(DCB,XTR)..6F..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81561-0K291iGUN125,135..LHD..SCB..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81561-0K700iGUN126..S202308-202407

main81561-0K730iGUN126..RHD;GUN125..RHD..6FC202402-202410

main81561-0K730iGUN125..RHD..(DCB,XTR)..6F..CBU202402-202408

HEADLAMP-LED

main81561-0K740iGUN126..LHD..SAP;GUN125,135..LHD..SAP..6FC202402-202410

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K270iGUN126..S¥1,540202308-202402

main81555-0K281iGUN125..RHD..(DCB,XTR)..6F..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81555-0K291iGUN125,135..LHD..SCB..CBU202402-202408

HEADLAMP-4-BULB HALOGEN MULTI

main81555-0K440iGUN126..THP..H;GUN125,135..THP¥1,940202308-202407

main81555-0K480iGUN125..RHD..SCB202402-202408

HEADLAMP-LED

main81555-0K480iGUN126..RHD;GUN125..RHD..6FC202402-202410

main81555-0K500iGUN125,135..LHD..(DCB,XTR)..SAP..6F..CBU202402-202410

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040¥110

90105T0151

main90105-T0151¥60

14 parts on this diagram · 3 diagrams in section
