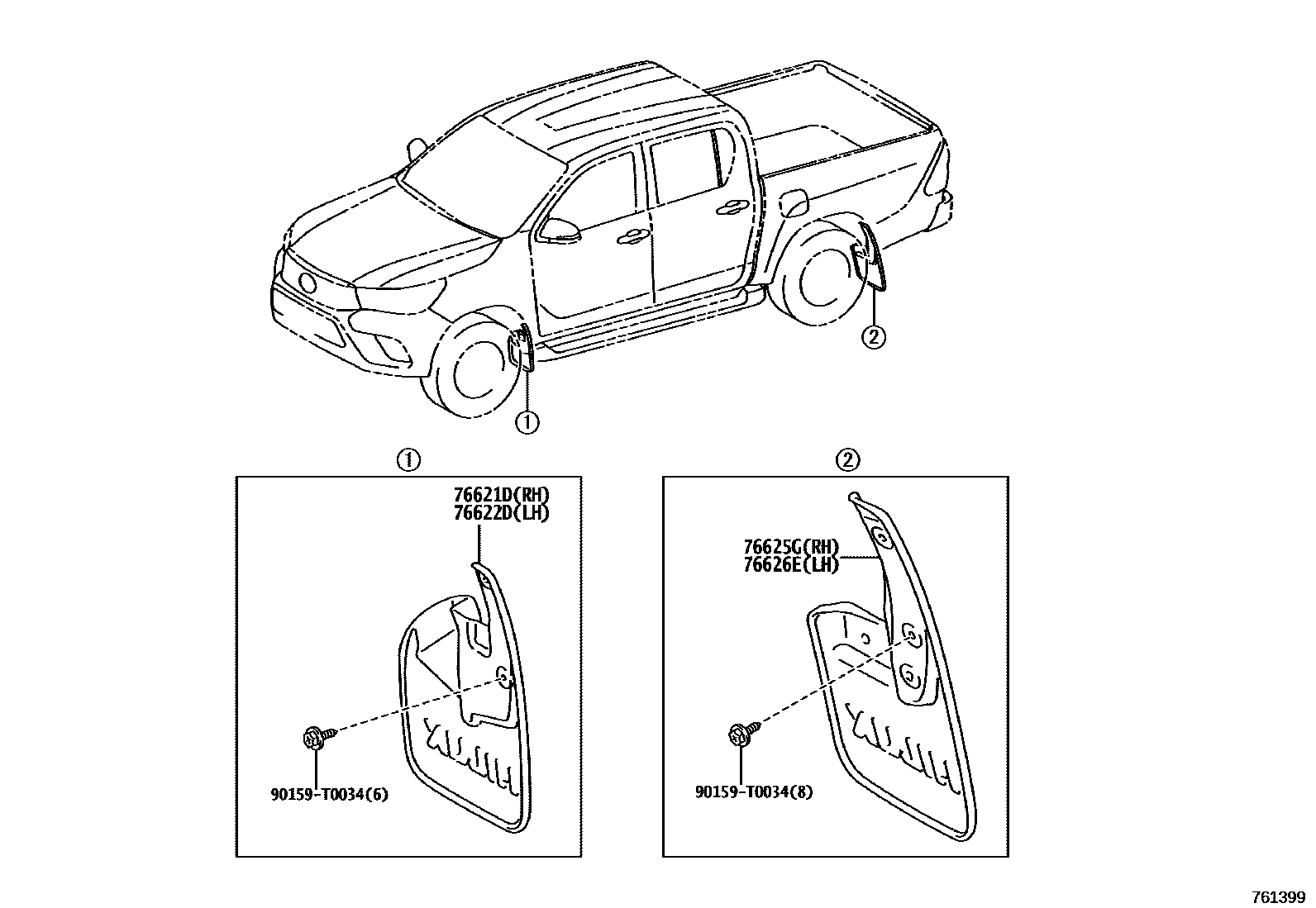

SPOILER & SIDE MUDGUARD

76621DMUDGUARD, FRONT FENDER, RH

main76621-0K140iGUN126,135..THP;GUN125..THP..6FC¥2,220202308-202407

MUD GUARD-WITH(FRONT & REAR)

main76621-0K150iGUN125,135..SCB..CBU202402-202408

MUD GUARD-WITH(FRONT ONLY)

main76621-0K160iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202408

TIRE & DISC WHEEL-265/65R17 STEEL

main76621-0K160iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202408

MUD GUARD-WITH(FRONT ONLY)

main76621-0K160iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

76622DMUDGUARD, FRONT FENDER, LH

main76622-0K140iGUN126,135..THP;GUN125..THP..6FC¥1,840202308-202407

MUD GUARD-WITH(FRONT & REAR)

main76622-0K150iGUN125,135..SCB..CBU202402-202408

MUD GUARD-WITH(FRONT ONLY)

main76622-0K160iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202408

TIRE & DISC WHEEL-265/65R17 STEEL

main76622-0K160iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202408

MUD GUARD-WITH(FRONT ONLY)

main76622-0K160iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0K290iGUN126,135..THP;GUN125..THP..6FC¥2,220202308-202407

MUD GUARD-WITH(FRONT & REAR)

main76625-0K320iGUN125,135..SCB..CBU202402-202408

main76625-0K330iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202408

TIRE & DISC WHEEL-265/65R17 STEEL

main76625-0K330iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-0K290iGUN126,135..THP;GUN125..THP..6FC¥2,220202308-202407

MUD GUARD-WITH(FRONT & REAR)

main76626-0K320iGUN125,135..SCB..CBU202402-202408

main76626-0K330iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202408

TIRE & DISC WHEEL-265/65R17 STEEL

main76626-0K330iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

90159T0034

main90159-T0034

5 parts on this diagram · 1 diagram in section
