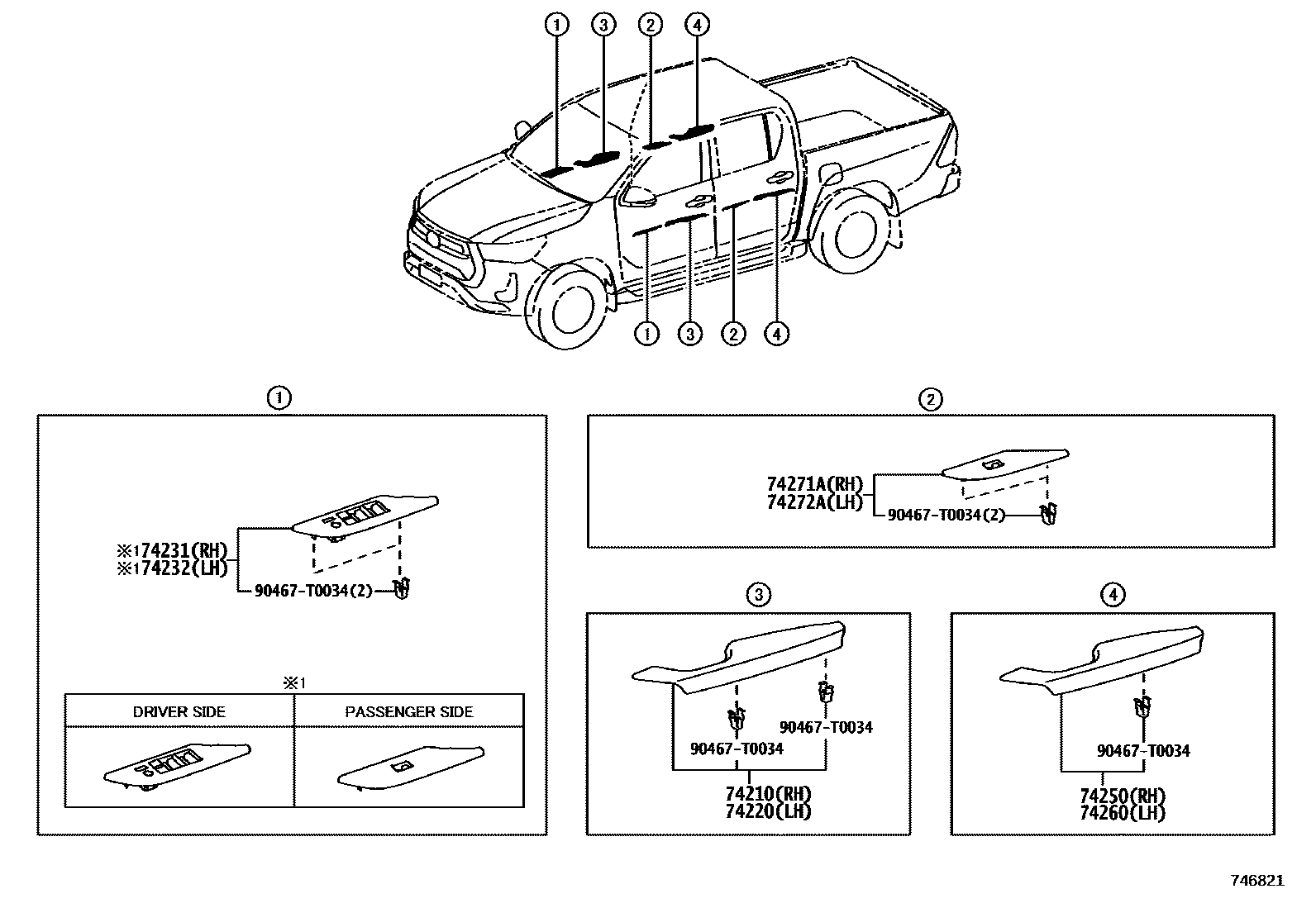

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
main74210-0K270-C3iGUN126..LHD..MHV;GUN126..DCB..SAP..DCRL;GUN125,135..DCB..SAP..6FC202402-202410 BLACK,TRIM2#
main74210-0K080-C2supersedes 74210-0K060-C3iGUN12#,135..THP202308-202407 DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION),BLACK,TRIM2#
DOOR TRIM-LEATHER(MLM),BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-0K270-C3iGUN126..LHD..MHV;GUN126..DCB..SAP..DCRL;GUN125,135..DCB..SAP..6FC202402-202410 BLACK,TRIM2#
main74220-0K080-C2supersedes 74220-0K060-C3iGUN12#,135..THP202308-202407 DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD)),BLACK,TRIM2#
DOOR TRIM-LEATHER(MLM),BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0K790iGUN126..LHD..6F..S;GUN125,135..SAP..6FC..S202402-202410 DOOR TRIM-FABRIC & PAINT(BLACK)
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0K591iGUN126..XTR..H;GUN125..XTR..6FC..H202402-202410 OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
main74232-0K770iGUN125,135..LHD..(SCB,XTR)..(L,S)202402-202408 main74232-0K800iGUN126..RHD..H;GUN125..RHD..6FC202402-202410 main74232-0K820iGUN126..LHD..DCB..6F..S;GUN125,135..DCB..SAP..6FC..S202402-202410 main74232-0K640supersedes 74232-0K671iGUN12#,135..THP..S202308-202407 OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&DOOR TRIM-FABRIC & PAINT(BLACK)
main74232-0K660supersedes 74232-0K671iGUN12#,135..THP..S202308-202407 DOOR TRIM-FABRIC & PAINT(BLACK)
74250ARMREST ASSY, REAR RH
main74250-0K040-C2supersedes 74250-0K020-C3iGUN12#,135..THP202308-202407 DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD)),BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
main74260-0K180-C3iGUN126..LHD..MHV;GUN126..DCB..SAP..DCRL;GUN125,135..DCB..SAP..6FC202402-202410 BLACK,TRIM2#
main74260-0K040-C2supersedes 74260-0K020-C3iGUN12#,135..THP202308-202407 DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD)),BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0K400iGUN126..DCB..SAP..H;GUN125..DCB..SAP..6FC..H202402-202410 OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(BLACK)
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0K400iGUN126..DCB..SAP..H;GUN125..DCB..SAP..6FC..H202402-202410 OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&DOOR TRIM-FABRIC & PAINT(BLACK)
9 parts on this diagram · 2 diagrams in section
